LVS04490

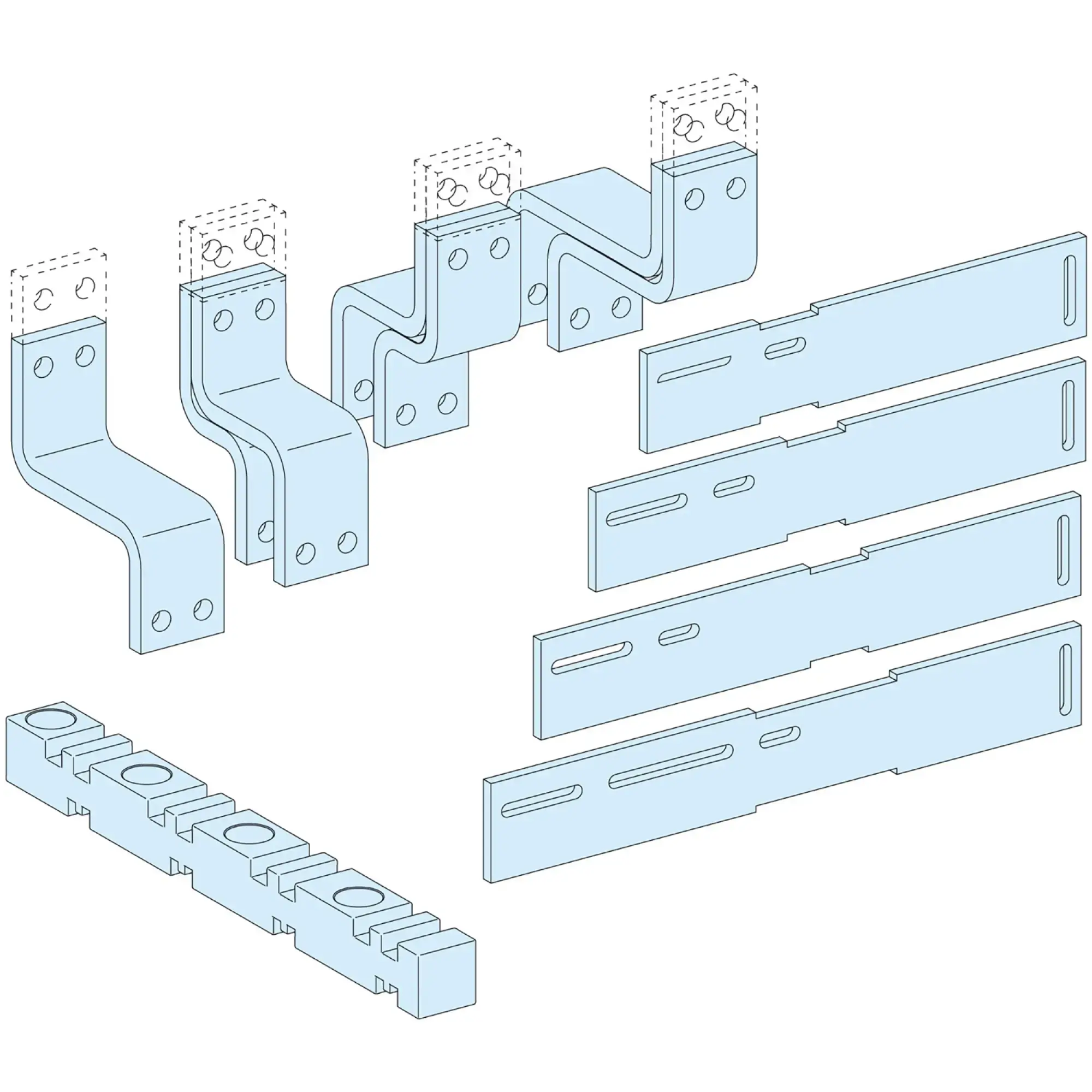

Schneider Electric LVS04490 PrismaSeT-P, Connection, MasterPacT MTZ1 16 4-pole, Fixed Mounting, with Vertical Busbar Linergy LGY
€390.24
Available, delivery time: 7-10 Bussines days
Product number: WST8810021877
Manufacturer: Schneider ElectricP/N: LVS04490
Product information "Schneider Electric LVS04490 PrismaSeT-P, Connection, MasterPacT MTZ1 16 4-pole, Fixed Mounting, with Vertical Busbar Linergy LGY"
Schneider Electric PrismaSeT-P, Connection, MasterPacT MTZ1 16 4-pole, Fixed Mounting, with Vertical Busbar Linergy LGY
Schneider Electric LVS04490
EAN 3606481867865
Description
PrismaSeT P. Verbindung für einen 4-poligen MasterPacT MTZ1 16 in vertikaler Einbaulage in Festeinbautechnik, mit einer seitlichen vertikalen Linergy LGY Sammelschiene.
Documents & Downloads
Product Attributes
| Höhe | 150mm |
|---|---|
| Breite | 550mm |
| Tiefe | 300mm |
| Mit Abdeckung | |
| Polzahl | 4 |
| Schienenabstand | -mm |
| Schienenhöhe | -mm |
| Schienenstärke | -mm |
| Max. Bemessungsstrom | 1600A |
| Kurzschlussfestigkeit (Icw) | -kA |
| Sammelschienenlage |
Technical data
| P/N (Part Number) | LVS04490 |
|---|---|
| EAN | 3606481867865 |
| ETIM | EC001896 |
| Weight | 17.82 kg |
| Weight (packaged) | 17.82 kg |
Designations
Connection Prism PrismaSeT
