LV847270

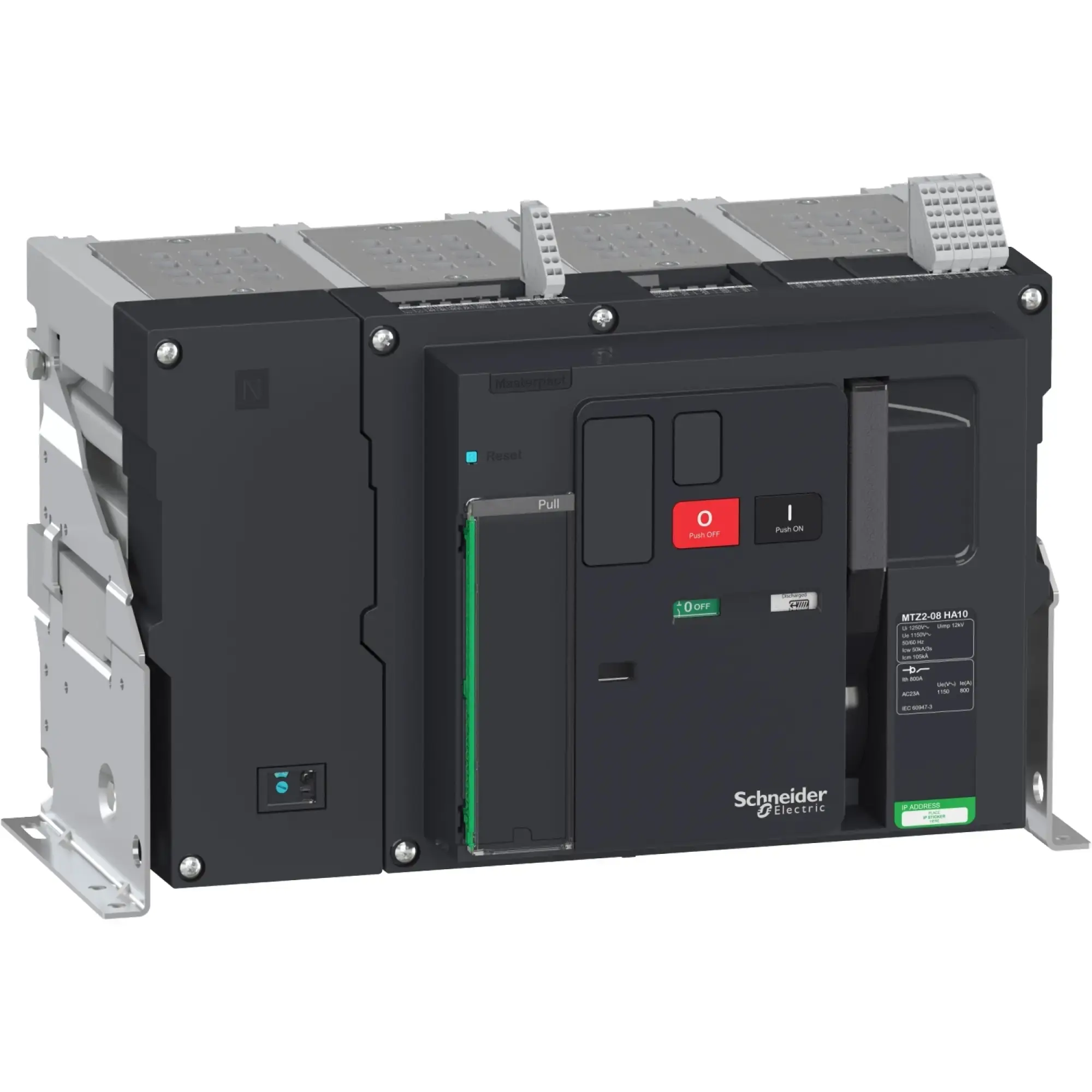

Schneider Electric LV847270 MasterPacT MTZ2 08 HA10 800A 4P Icm=105kApeak@1150V Fixed Mount Load Break Switch
€7,899.46
% €11,362.12 (30.48% saved)
Available, delivery time: 7-10 Bussines days
Product number: WST8810020683
Manufacturer: Schneider ElectricP/N: LV847270
Product information "Schneider Electric LV847270 MasterPacT MTZ2 08 HA10 800A 4P Icm=105kApeak@1150V Fixed Mount Load Break Switch"
Schneider Electric MasterPacT MTZ2 08 HA10 800A 4P Icm=105kApeak@1150V Fixed Mount Load Break Switch
Schneider Electric LV847270
EAN 3606481811370
Description
Offener Lasttrennschalter Baureihe MasterPacT MTZ, Baugröße 2, MTZ2, 4-Polig MasterPacT MTZ2 08 HA10 800A 4P 1150V Festeinbau Grundschalter Nennbetriebsstrom 800A, Betriebsspannung bis max. 1150Vac, Kurzschlusseinschaltvermögen 105kA(peak), Bemessungskurzzeitstrom 50kA(rms 1s) Lasttrennschalter nach IEC 60947-3, ohne Schutzgerät Grundgerät für Konfiguration, nicht einzeln zu bestellen
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | LV847270 |
|---|---|
| EAN | 3606481811370 |
| SCIP | f31d8a4d-e9cb-4afc-bf2c-5965742ce772 |
| Weight | 102 kg |
| Weight (packaged) | 117.3 kg |
Designations
100VAC 1150VAC ACB IEC 60947-3 MTZ MTZ2 Masterpact base switch fixed mounting load break switch low voltage open load break switches power circuit breaker protective switch
