KSA630DZCG41F
Schneider Electric KSA630DZCG41F KSA Z-Element, 630A, vertical, left-right, selectable length, fire barrier
€2,020.73
% €3,045.21 (33.64% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810016998
Manufacturer: Schneider ElectricP/N: KSA630DZCG41F
Product information "Schneider Electric KSA630DZCG41F KSA Z-Element, 630A, vertical, left-right, selectable length, fire barrier"

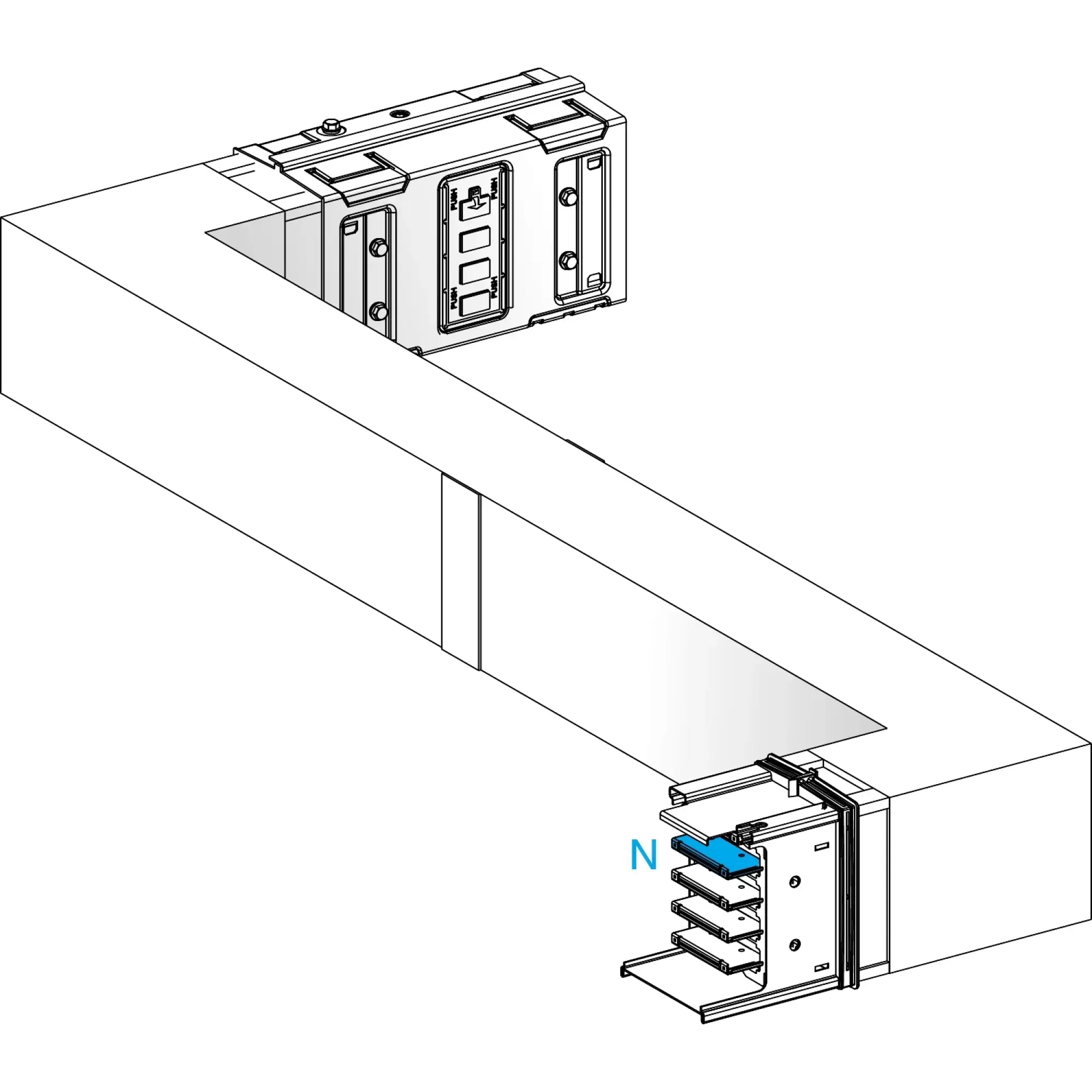

Schneider Electric KSA Z-Element, 630A, vertical, left-right, selectable length, fire barrier
Schneider Electric KSA630DZCG41F
EAN 3606489511326
Description
Canalis KSA. Richtungsänderung. 630A. Z-Element. hochkant links-rechts. Schenkel A fix, B variabel. Schenkel C fix. Brandschott S120 in B. C-Profil. Polarität 3L + N + PE.
Documents & Downloads
Product Attributes
| Ausführung | sonstige |
|---|---|
| Flexibel | |
| Polzahl | 5 |
| Anzahl der Leiter (ohne Erde) | 4 |
| Bemessungsstrom AC 50 Hz | 630A |
| Bemessungsspannung AC 50 Hz | 230V |
| Länge | -m |
| Farbe | weiß |
| RAL-Nummer | 9001 |
| Schutzart (IP) | IP55 |
| Schutzart (NEMA) |
Technical data
| P/N (Part Number) | KSA630DZCG41F |
|---|---|
| EAN | 3606489511326 |
| ETIM | EC002561 |
| Weight | 16 kg |
| Weight (packaged) | 16 kg |
Designations
BTS Canalis Z-Element busbar busbar box busbar trunking indoor application medium power
