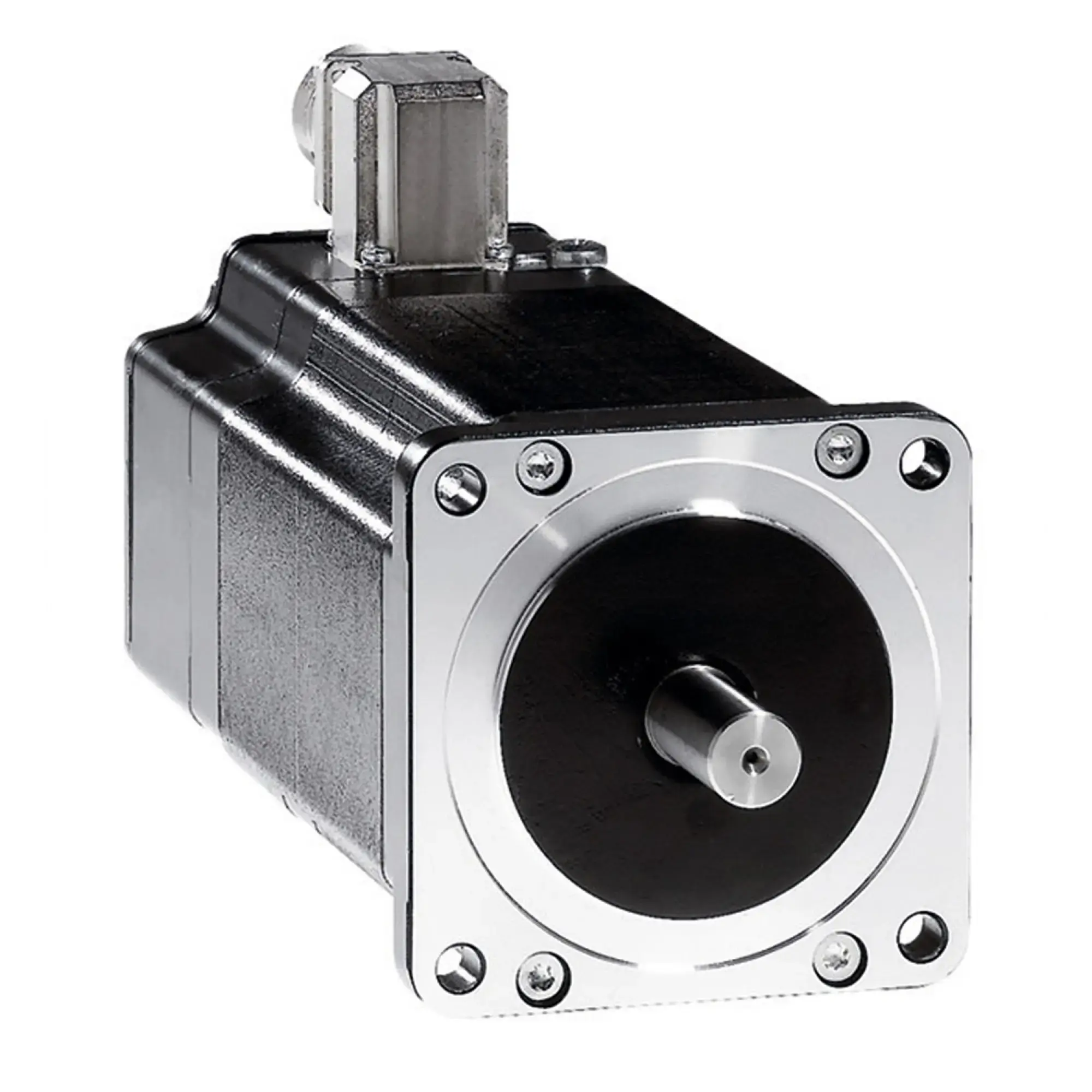

Schneider Electric BRS39AW361ACA 3-Ph. Stepper Motor, 4.52Nm, Shaft Ø 12mm, L=98mm, without Brake, Connector

Three-phase stepper motor of the Lexium BRS3 series. This series is characterized by its robust design and optimized internal geometry, which guarantee a very powerful stepper motor and minimize maintenance costs. This motor has a holding torque of 4.52 Nm. The flange size is 85 mm, the motor length 98 mm and the centering collar is 60 mm. The shaft has a diameter of 12 mm, is smooth and the protection type of the shaft end is IP41. The motor housing has a protection type of IP56. An encoder with 1000 pulses/revolution is installed. The nominal supply voltage is 325 VDC and the connection is made via connectors. A holding brake is not mounted on this motor. Movements are carried out precisely, step by step, as defined by a Lexium SD326 or SD328 stepper motor amplifier, which are perfectly coordinated with each other.
