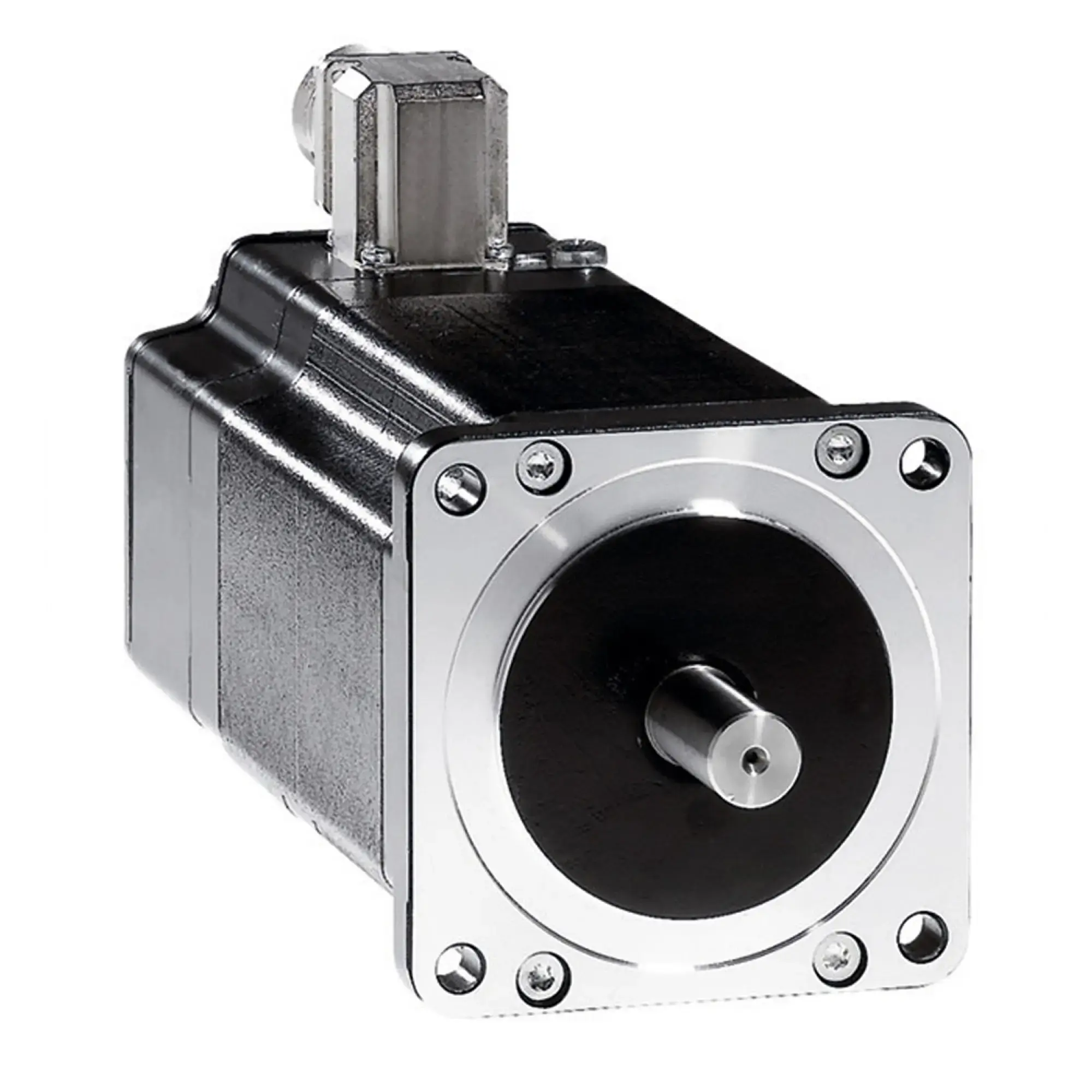

Schneider Electric BRS397W271ACA 3-phase stepper motor, 2.26 Nm, shaft Ø 9.5mm, L=68mm - w/o brake, connector

Three-phase stepper motor of the Lexium BRS3 series. This series of motors is characterized by sturdy construction and optimized internal geometry, ensuring a very powerful stepper motor and minimizing maintenance efforts. This motor has a holding torque of 2.26 Nm. The flange size is 85 mm, the motor length 68 mm, and the centering collar 73 mm. The shaft has a diameter of 9.5 mm, is smooth, and the protection class of the shaft end is IP41. The motor housing has a protection class of IP56. An encoder with 1000 pulses/revolution is installed. The nominal supply voltage is 325 VDC, and the connection is made via connectors. A holding brake is not installed in this motor. Movements are carried out precisely, step by step, defined by a stepper motor amplifier Lexium SD326 or SD328, and thus perfectly coordinated.
