BRS397H660AAA

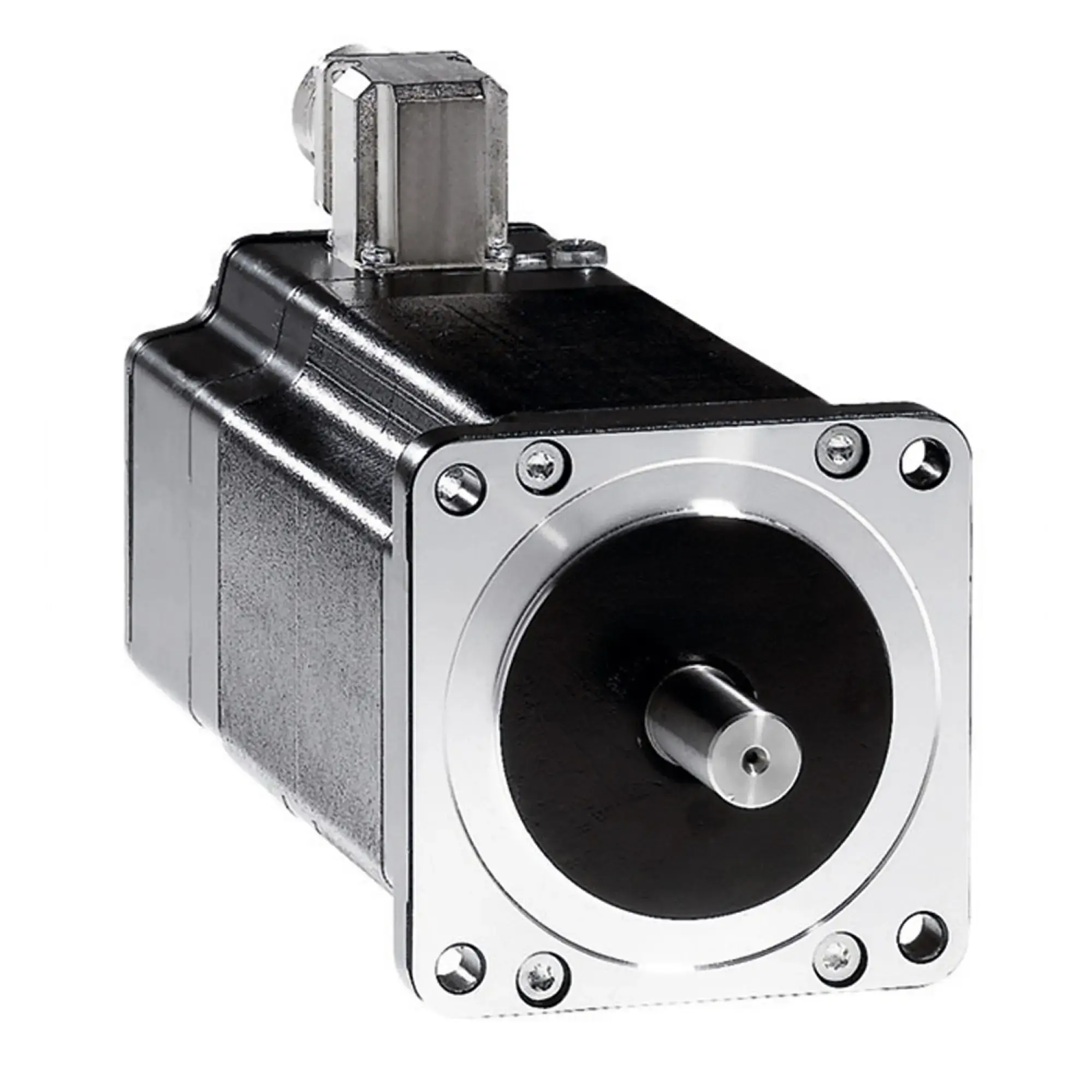

Schneider Electric BRS397H660AAA 3-phase Stepper Motor - 2.26 Nm - Shaft Ø 12 mm - L= 68 mm - without brake - Reduct.
€693.69
Available, delivery time: 3-4 Weeks
Product number: WST8810011780
Manufacturer: Schneider ElectricP/N: BRS397H660AAA
Product information "Schneider Electric BRS397H660AAA 3-phase Stepper Motor - 2.26 Nm - Shaft Ø 12 mm - L= 68 mm - without brake - Reduct."
Schneider Electric 3-phase Stepper Motor - 2.26 Nm - Shaft Ø 12 mm - L= 68 mm - without brake - Reduct.
Schneider Electric BRS397H660AAA
EAN 3606485150079
Description
Three-phase stepper motor from the Lexium BRS3 series. This motor series is characterized by robust construction and optimized internal geometry, which ensure a very powerful stepper motor and minimize maintenance expenses. This motor has a holding torque of 1.92 Nm. The flange dimension is 85 mm, the motor length 68 mm, and the centering collar 60 mm. The shaft has a diameter of 12 mm, is equipped with a Woodruff key and the protection class of the shaft end is IP41. The motor housing has a protection class of IP56. There is no encoder present. The nominal supply voltage is 48 VDC and the connection is made via a cable with free ends. A holding brake is not mounted on this motor. Movements are carried out precisely, step by step, which are defined by a Lexium SD315 stepper motor amplifier and thus perfectly matched.
Documents & Downloads
Product Attributes
| Ausführung | Drehstrom-Synchronmotor |
|---|---|
| Bemessungsspannung | 480V |
| Bemessungsstrom | 2.6A |
| Bemessungsfrequenz | 50Hz |
| Spannungsart | AC/DC |
| Leistungsfaktor | |
| Anzahl der Phasen | 3 |
| Bemessungsleistung bei Bemessungsfrequenz | 0.26kW |
| Bemessungsdrehzahl bei Bemessungsfrequenz | 50001/min |
| Werkstoff des Gehäuses | sonstige |
| Schutzart (IP) | sonstige |
| Schutzart (NEMA) | |
| Polzahl | 0 |
| Bauform | sonstige |
| Motor-Energieeffizienzklasse | sonstige |
| Isolationsklasse nach IEC | sonstige |
| Belastungszyklus | sonstige |
| Rahmengröße nach IEC | -mm |
| Volllasteffizienz | -% |
| Nenndrehmoment | 0.9Nm |
| Anlaufstromverhältnis | 0 |
| Anlaufdrehmomentverhältnis | 0 |
| Kippmomentverhältnis | 0 |
| Lager | sonstige |
| Mit Kondensschutz | |
| Spannung Anti-Kondensatheizung | -V |
| Ausgangsleistung Anti-Kondensatheizung | -W |
| Mit positivem Temperaturkoeffizienz-Resistor (PTC) | |
| Mit Widerstandsthermometer-Detektor (RTD) | |
| Intrinsische Sicherheit (IS) | ohne |
| Geeignet für Frequenzregelung | |
| Betriebstemperatur | 0°C |
| Überlastfähigkeit | |
| Kühlmethode | sonstige |
| Ausführung Wellenende | sonstige |
| Vakuum-Druck-Imprägnierung (VPI) | sonstige |
Technical data
| P/N (Part Number) | BRS397H660AAA |
|---|---|
| EAN | 3606485150079 |
| ETIM | EC001851 |
| ECLASS | eClass_10_AKE164012 |
| Weight | 1.7 kg |
| Weight (packaged) | 1.9 kg |
Designations
3-phase 3-pole hybrid stepper motor stepper stepper motor stepper motors synchronous motor three-phase three-pole
