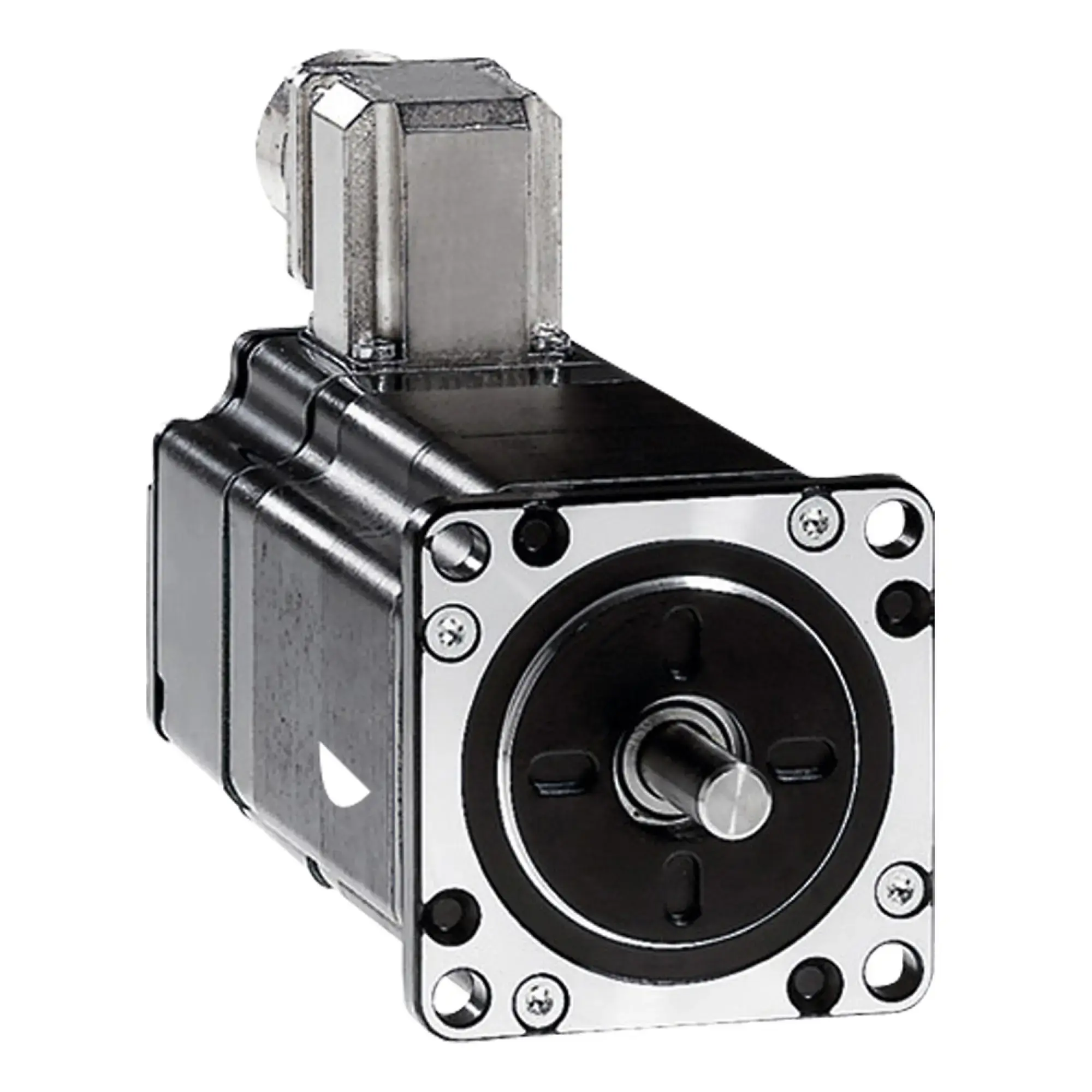

Schneider Electric BRS368W131FCA 3-phase stepper motor, 1.7 Nm, shaft Ø 8mm, L=79mm, with brake, connector

Three-phase stepper motor of the Lexium BRS3 series. This motor series is characterized by its robust construction and optimized internal geometry, which ensure a very powerful stepper motor and minimize maintenance efforts. This motor has a holding torque of 1.70 Nm. The flange size is 55 mm, the motor length 79 mm, and the centering collar 38 mm. The shaft has a diameter of 8.0 mm, is smooth, and the protection class of the shaft end is IP41. The motor housing has a protection class of IP56. It is equipped with an encoder with 1000 pulses/revolution. The nominal supply voltage is 325 VDC, and the connection is made via connectors. This motor is factory equipped with a mounted holding brake. Movements are carried out precisely in steps defined by a stepper motor amplifier Lexium SD326 or SD328, which are perfectly matched.
