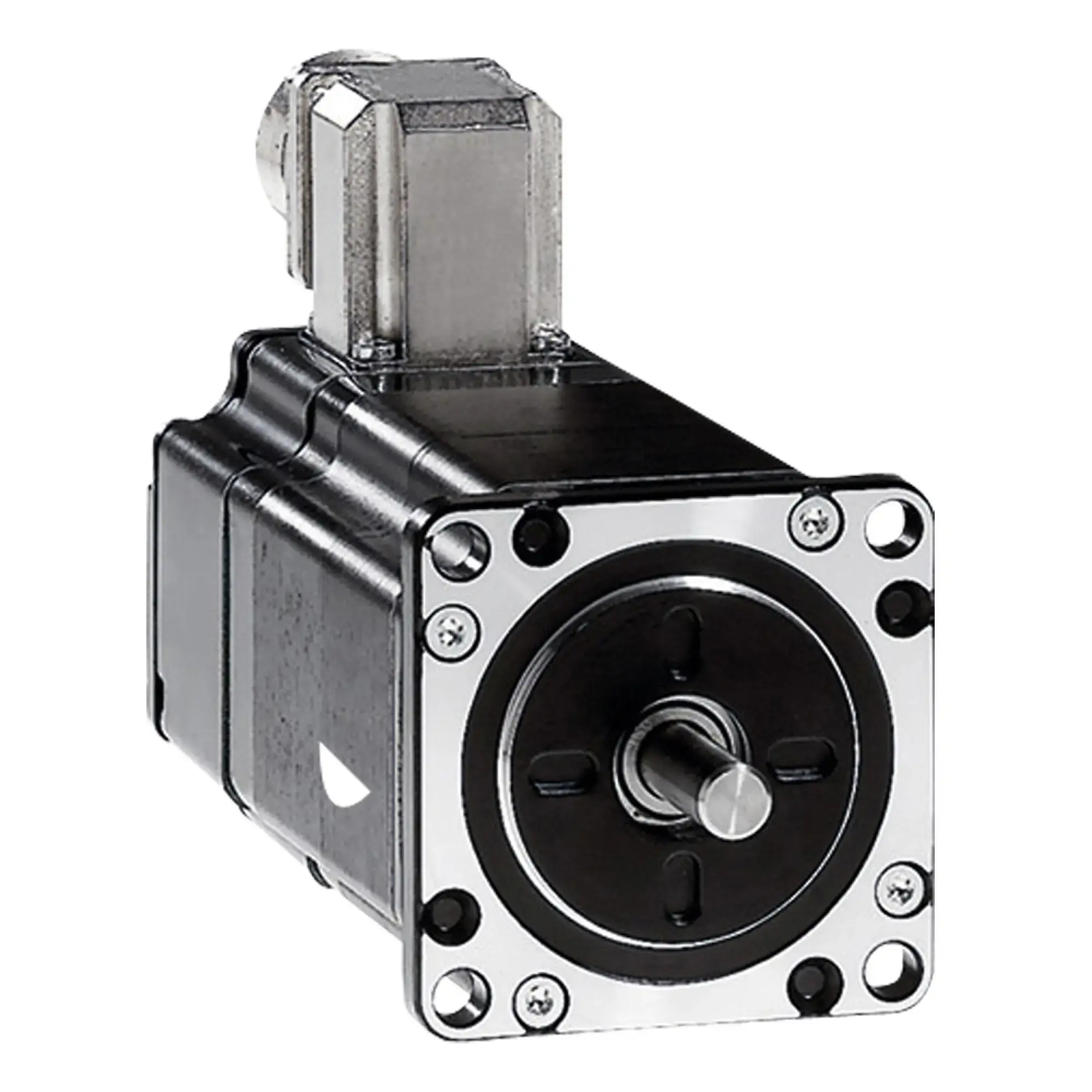

Schneider Electric BRS364H030AAA 3-phase stepper motor, 0.51 Nm, shaft Ø 6.35 mm, L=42 mm, without brake, condensed.

Three-phase stepper motor of the Lexium BRS3 series. This series of motors is characterized by robust construction and optimized internal geometry, which ensure a very powerful stepper motor and minimize maintenance efforts. This motor has a holding torque of 0.51 Nm. The flange size is 55 mm, the motor length is 42 mm, and the centering collar is 38 mm. The shaft has a diameter of 6.35 mm, is smooth, and the shaft end's protection level is IP41. The motor housing has a protection level of IP56. There is no encoder present. The nominal supply voltage is 48 VDC, and the connection is made via a cable with free ends. A holding brake is not mounted on this motor. Movements are carried out precisely, step by step, which are defined by a stepper motor amplifier Lexium SD315 and are thus perfectly coordinated.
