A9N18599

Schneider Electric A9N18599 RCD Block Vigi C120, 4P, 500mA, Type A si

€593.77

% €1,015.07 (41.5% saved)

Available, delivery time: 4-6 Bussines days

Product number: WST8810008992

Manufacturer: Schneider Electric
P/N: A9N18599

Product information "Schneider Electric A9N18599 RCD Block Vigi C120, 4P, 500mA, Type A si"

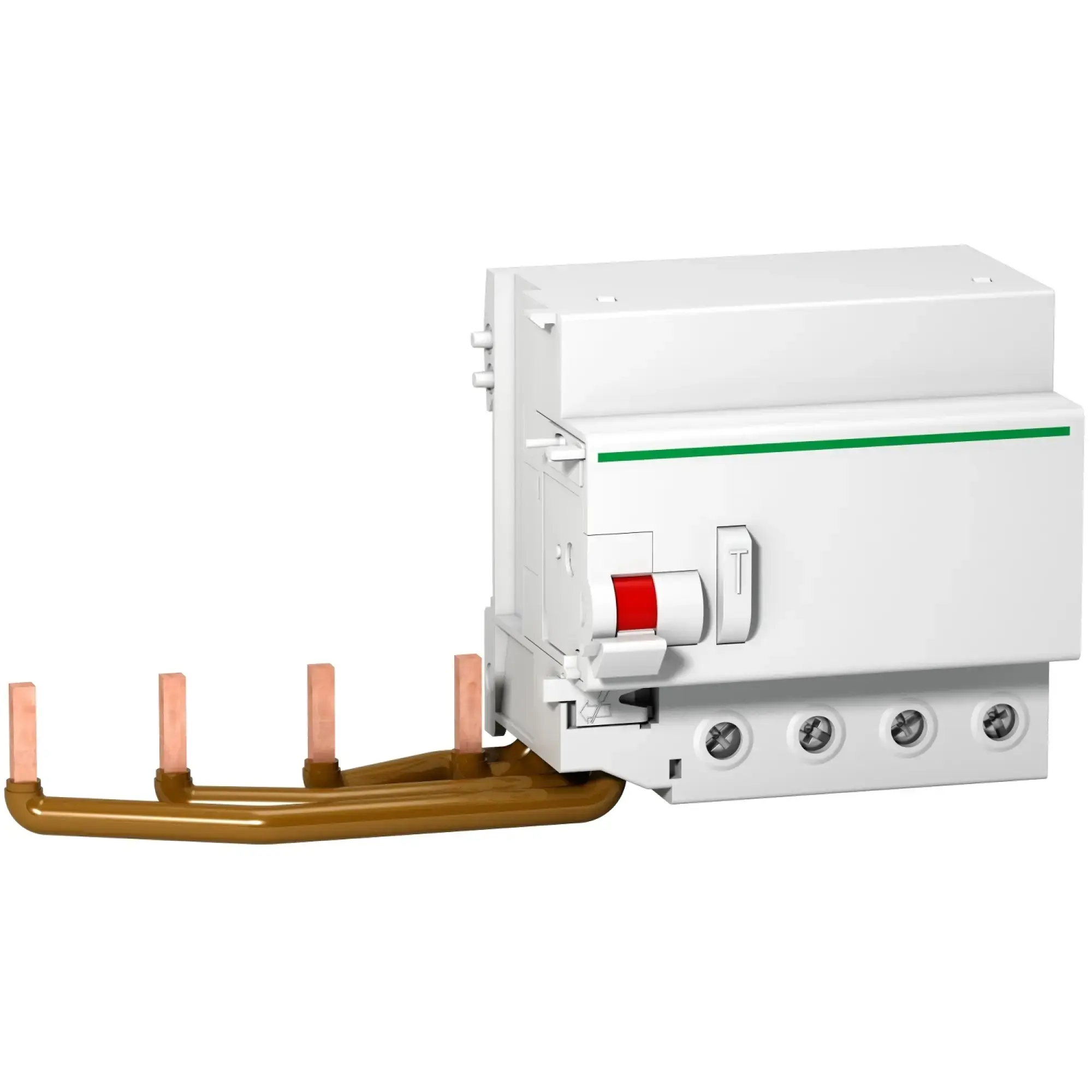

Schneider Electric RCD Block Vigi C120, 4P, 500mA, Type A si

Schneider Electric A9N18599

EAN 3606480376733

Description

RCD Block Acti 9 Vigi C120. 4-pole, nominal fault current 500mA, Type A, SI, operating voltage (Ue) 230-415V AC, insulation voltage (Ui) 500V AC. Can be mounted on the right side to circuit breakers from the C120 series. Tripping by residual current is indicated by a red mechanical display on the toggle. Terminals IP 20. Test button for regular testing of the function. Technology of the tripping unit- thermomagnetic. Additional modular auxiliary components (optional)- fault signaling switch, auxiliary switch, under-voltage trip, over-voltage trip, shunt trip. The Vigi C120 RCD Block meets the following standards: IEC/EN 61009-1.

Documents & Downloads

Product Attributes

Nennspannung	230V
Nennstrom	125A
Bemessungsfehlerstrom einstellbar
Bemessungsfehlerstrom	0.5A
Max. Verzögerungszeit	0ms
Verzögerungszeit einstellbar
Polzahl	4
Fehlerstrom-Typ	A
Stoßstromfestigkeit	3kA
Frequenz	50 Hz
Bemessungsisolationsspannung Ui	500V
Bemessungsstoßspannungsfestigkeit Uimp	6kV
Verlustleistung	3.6W
Anschließbarer Leiterquerschnitt eindrähtig	1mm²
Anschließbarer Leiterquerschnitt mehrdrähtig	1mm²
Fehlauslöseschutz	1
Mit Verriegelungsvorrichtung
Schutzart (IP)	IP20
Verschmutzungsgrad	3
Umgebungstemperatur während des Betriebs	25°C

Technical data

P/N (Part Number)	A9N18599
EAN	3606480376733
ETIM	EC002297
SCIP	d4e820de-5d4d-442b-8a18-46a31f25b739
ECLASS	eClass_10_ACN357011
Weight	0.66 kg
Weight (packaged)	0.66 kg

Designations

RCD RCD Block Vigi earth fault residual current residual current block
