9080LBA165208

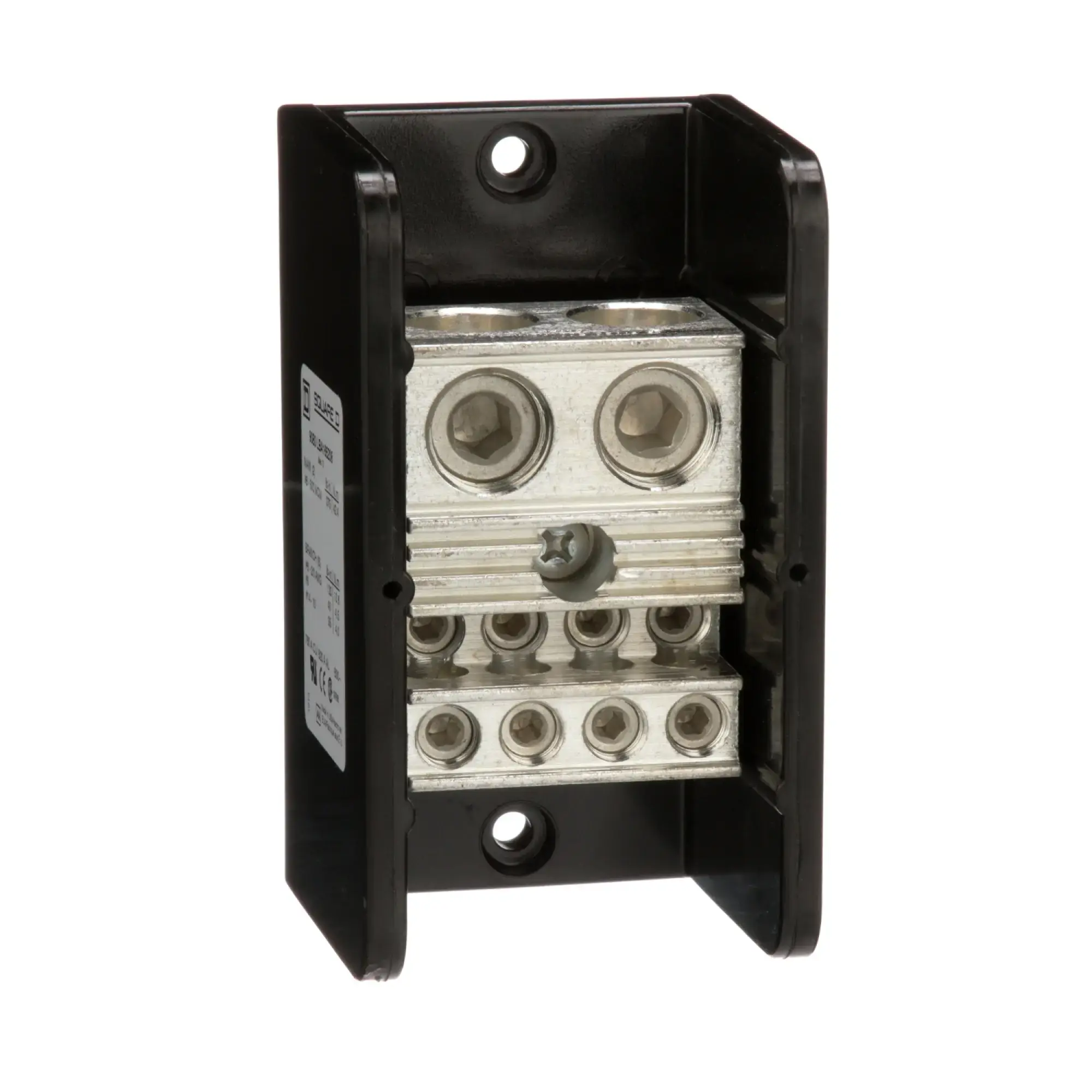

Schneider Electric 9080LBA165208 Power distribution block 600 V 760A
€165.55
% €223.72 (26% saved)
Available, delivery time: 7-10 Bussines days
Product number: WST8810007650
Manufacturer: Schneider ElectricP/N: 9080LBA165208
Product information "Schneider Electric 9080LBA165208 Power distribution block 600 V 760A"
Schneider Electric Power distribution block 600 V 760A
Schneider Electric 9080LBA165208
EAN 0785901097402
Description
Linergy power distribution blocks are designed for cable termination and meet NEMA standards. This single-pole block has two lug openings on the line side (main line) and eight lug openings on the load side (branch). The line-side lug is designed to accommodate a copper or aluminum wire of 6-500mm². The load-side lugs are designed to accommodate a copper or aluminum wire from 14 to 2/0. The lugs are made of aluminum. They are rated for 760 with copper wire and 620 A with aluminum wire. The lugs are designed for a voltage of 600 V. The housing is made of phenolic resin for general-purpose use. These Linergy power distribution blocks are recognized as UL component and CSA certified.
Documents & Downloads
Product Attributes
| Ausführung | sonstige |
|---|---|
| Anschließbarer Leiterquerschnitt | 21.161mm² |
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse | -mm² |
| Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse | -mm² |
| Anschließbarer Leiterquerschnitt eindrähtig | -mm² |
| Anschließbarer Leiterquerschnitt mehrdrähtig | -mm² |
| Bemessungsstrom In | 760A |
| Bemessungsspannung | 600V |
| Gesamtpolzahl ohne Erdungskontakt | 1 |
| Ausführung des elektrischen Anschlusses | sonstige |
| Breite | -mm |
| Anreihbar | 1 |
| Polzahl | 1 |
Technical data
| P/N (Part Number) | 9080LBA165208 |
|---|---|
| EAN | 0785901097402 |
| ETIM | EG000012 |
| ECLASS | eClass_10_ACN342011 |
| Weight | 0.6441 kg |
| Weight (packaged) | 0.6441 kg |
Designations
Adapter connection adapter connector industrial terminal block connector terminal adapter terminal block connector terminal block joiner terminal connector terminal plug adapter
