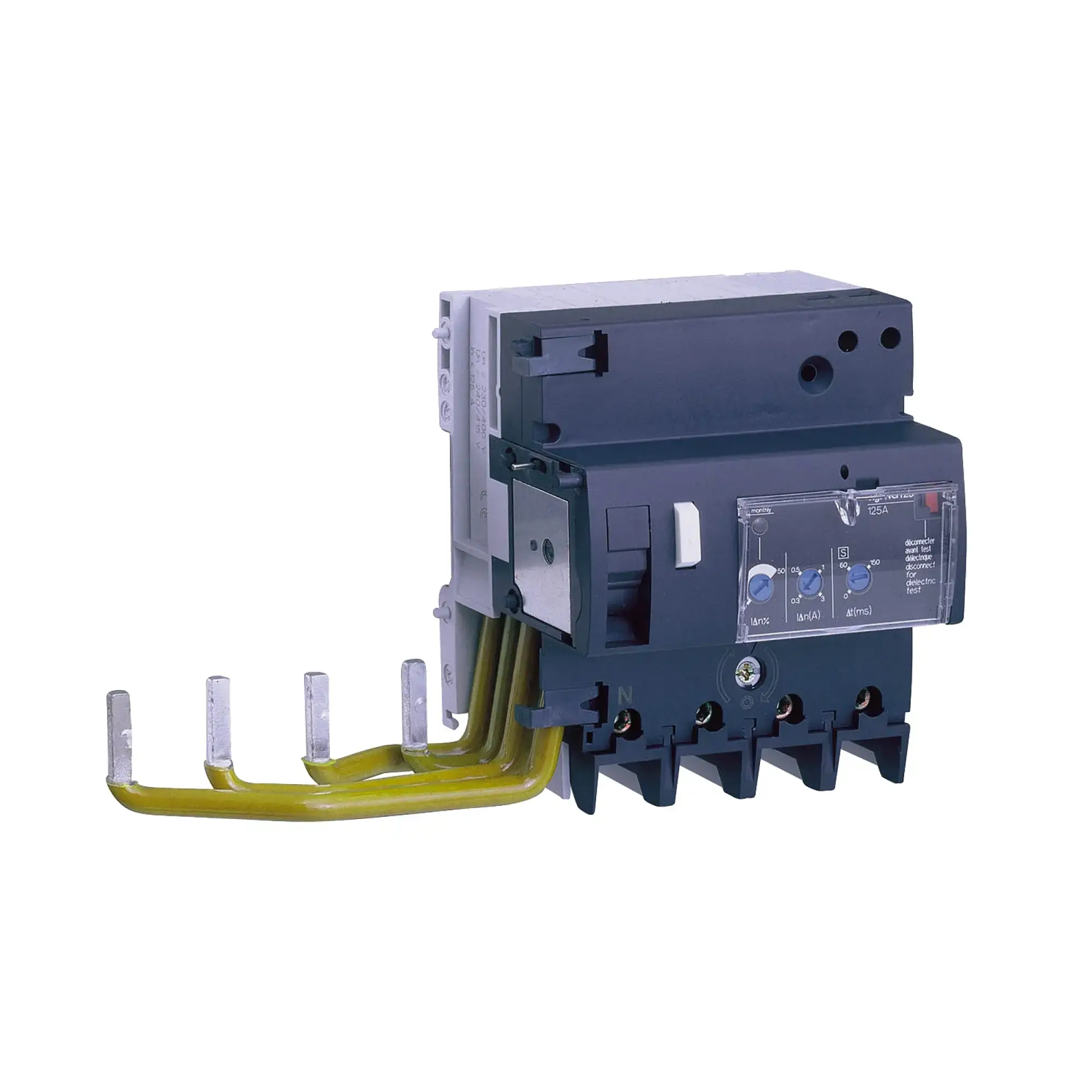

Schneider Electric 19049 RCD Block Vigi NG125, 4P, 125A, 300-3000mA, Type A

€809.57

% €1,383.97 (41.5% saved)

Available, delivery time: 4-6 Bussines days

Product number: WST8810005423

Manufacturer: Schneider Electric
P/N: 19049

Product information "Schneider Electric 19049 RCD Block Vigi NG125, 4P, 125A, 300-3000mA, Type A"

Schneider Electric RCD Block Vigi NG125, 4P, 125A, 300-3000mA, Type A

Schneider Electric 19049

EAN 3303430190493

Description

RCD Block Acti 9 Vigi NG125. 4-pole, rated current 125A, rated fault current 300-3000mA, Type A, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 690V AC. Can be mounted on the right side of NG125 circuit breakers. Trip due to earth leakage is indicated by a red, mechanical sign on the toggle. Terminals IP 20. Test button for regular functional checking. Trip unit technology - thermomagnetic. Additional auxiliary modules (optional) - shunt trip (MXV) and fault signalisation switch (SDV). The Vigi NG125 RCD Block complies with the following standards - IEC/EN 61009-1. Moreover, this series is VDE certified!

Documents & Downloads

Product Attributes

Nennspannung	230V
Nennstrom	125A
Bemessungsfehlerstrom einstellbar	1
Bemessungsfehlerstrom	0.3A
Max. Verzögerungszeit	0ms
Verzögerungszeit einstellbar	1
Polzahl	4
Fehlerstrom-Typ	A
Stoßstromfestigkeit	5kA
Frequenz	50/60 Hz
Bemessungsisolationsspannung Ui	690V
Bemessungsstoßspannungsfestigkeit Uimp	8kV
Verlustleistung	4W
Anschließbarer Leiterquerschnitt eindrähtig	16mm²
Anschließbarer Leiterquerschnitt mehrdrähtig	10mm²
Fehlauslöseschutz
Mit Verriegelungsvorrichtung	1
Schutzart (IP)	IP20
Verschmutzungsgrad	3
Umgebungstemperatur während des Betriebs	25°C

Technical data

P/N (Part Number)	19049
EAN	3303430190493
ETIM	EC002297
SCIP	93d5f95e-203e-4b60-8a26-236a123bd123
ECLASS	eClass_10_ACN357011
Weight	0.88 kg
Weight (packaged)	0.88 kg

Designations

RCD RCD block Vigi earth fault residual current residual current block
