19044

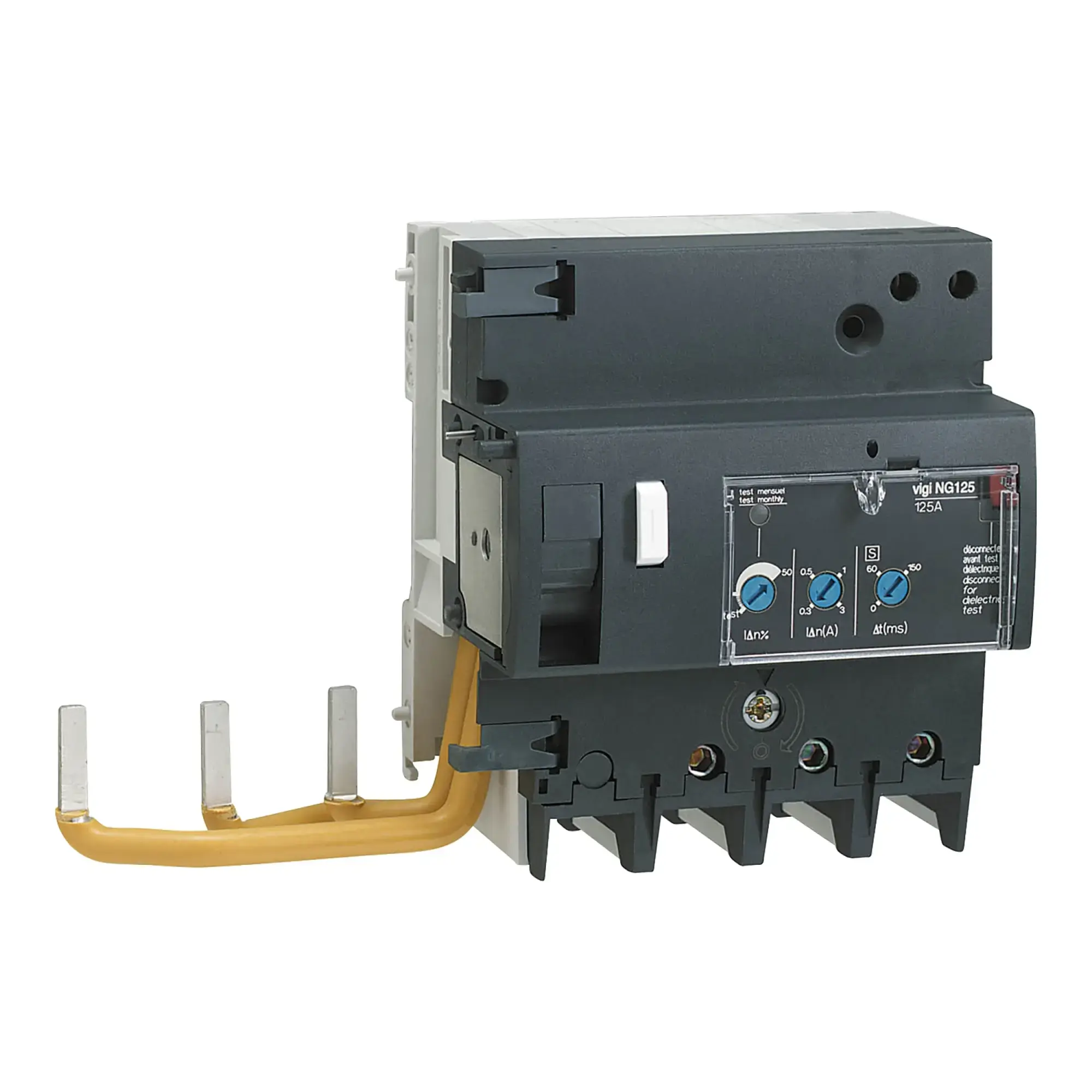

Schneider Electric 19044 RCD Block Vigi NG125, 3P, 125A, 300-1000mA, Type A
€671.04
% €1,147.16 (41.5% saved)
Available, delivery time: 4-6 Bussines days
Product number: WST8810005419
Manufacturer: Schneider ElectricP/N: 19044
Product information "Schneider Electric 19044 RCD Block Vigi NG125, 3P, 125A, 300-1000mA, Type A"
Schneider Electric RCD Block Vigi NG125, 3P, 125A, 300-1000mA, Type A
Schneider Electric 19044
EAN 3303430190448
Description
RCD Block Acti 9 Vigi NG125. 3-pole, rated current 125A, rated fault current 300-1000mA, type A, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 690V AC. Can be mounted to the right side of the circuit breaker series NG125. The tripping due to fault current is shown by a red, mechanical indicator on the toggle. Terminals IP 20. Test button for regular function checking. Technology of the trip unit- thermomagnetic. Additional modular accessories (optional)- shunt trip (MXV) and fault signal switch (SDV). The Vigi NG125 RCD block complies with the following standards- IEC/EN 61009-1. Furthermore, this series is VDE certified!.
Documents & Downloads
Product Attributes
| Nennspannung | 230V |
|---|---|
| Nennstrom | 125A |
| Bemessungsfehlerstrom einstellbar | 1 |
| Bemessungsfehlerstrom | 0.3A |
| Max. Verzögerungszeit | 0ms |
| Verzögerungszeit einstellbar | 1 |
| Polzahl | 3 |
| Fehlerstrom-Typ | A |
| Stoßstromfestigkeit | 0.25kA |
| Frequenz | 50/60 Hz |
| Bemessungsisolationsspannung Ui | 690V |
| Bemessungsstoßspannungsfestigkeit Uimp | 8kV |
| Verlustleistung | 4W |
| Anschließbarer Leiterquerschnitt eindrähtig | 16mm² |
| Anschließbarer Leiterquerschnitt mehrdrähtig | 10mm² |
| Fehlauslöseschutz | |
| Mit Verriegelungsvorrichtung | 1 |
| Schutzart (IP) | IP20 |
| Verschmutzungsgrad | 3 |
| Umgebungstemperatur während des Betriebs | 25°C |
Technical data
| P/N (Part Number) | 19044 |
|---|---|
| EAN | 3303430190448 |
| ETIM | EC002297 |
| SCIP | 93d5f95e-203e-4b60-8a26-236a123bd123 |
| ECLASS | eClass_10_ACN357011 |
| Weight | 0.73 kg |
| Weight (packaged) | 0.73 kg |
Designations
Earth fault RCD RCD block RCD block Vigi fault current
