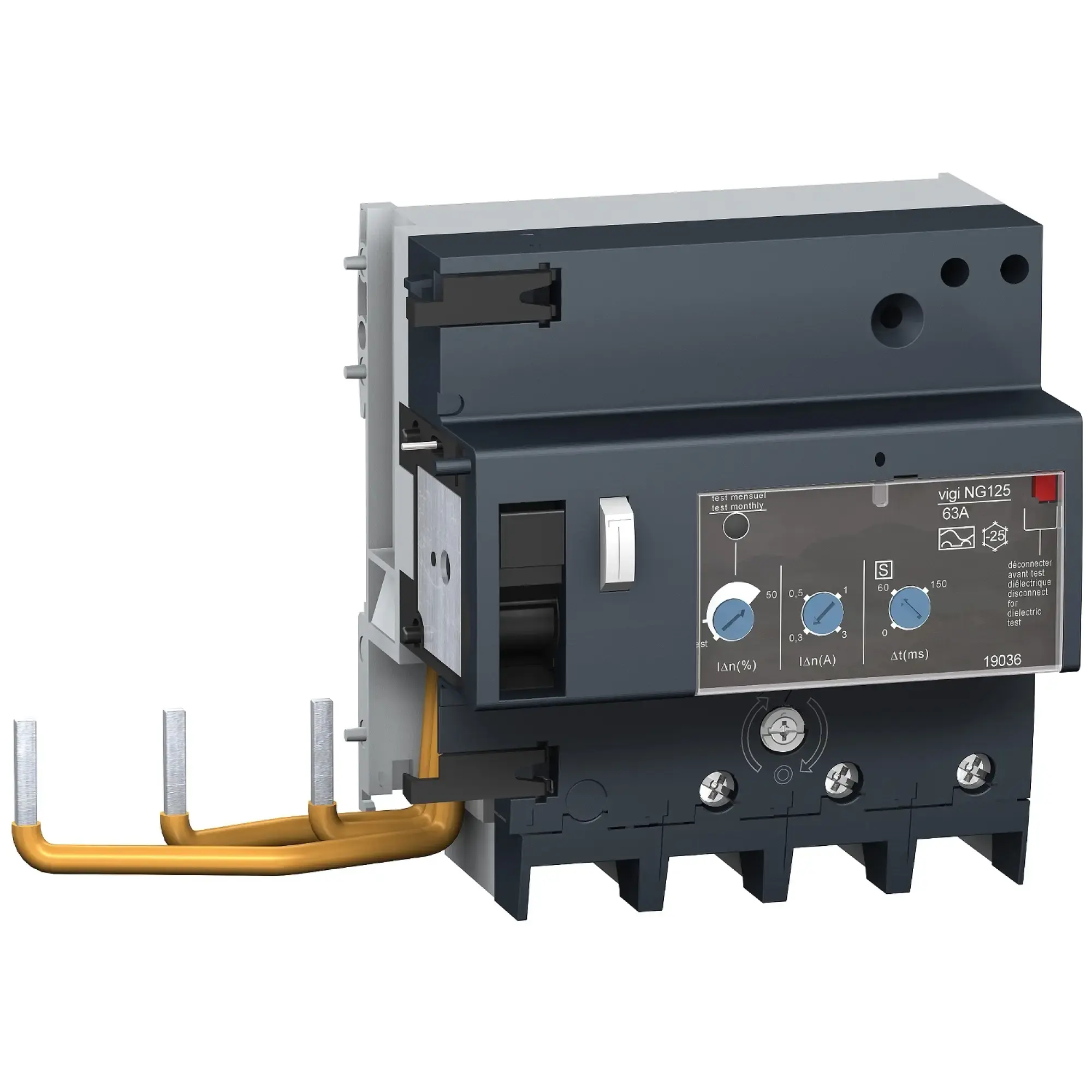

Schneider Electric 19036 RCD Block Vigi NG125, 3P, 63A, 300-3000mA, Type A

RCD Block Acti 9 Vigi NG125. 3-pole, rated current 63A, rated residual current 300-3000mA, type A, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 690V AC. It can be mounted on the right-hand side of the NG125 series circuit breakers. Tripping due to residual current is indicated by a red mechanical indicator on the toggle. Terminal IP 20. Test button for regular functional testing. Technology of the tripping unit - thermomagnetic. Additionally attachable auxiliary modules (optional) - working current release (MXV) and fault signal switch (SDV). The Vigi NG125 RCD Block fulfills the following standards: IEC/EN 61009-1. Furthermore, this series is VDE certified!.
