19033

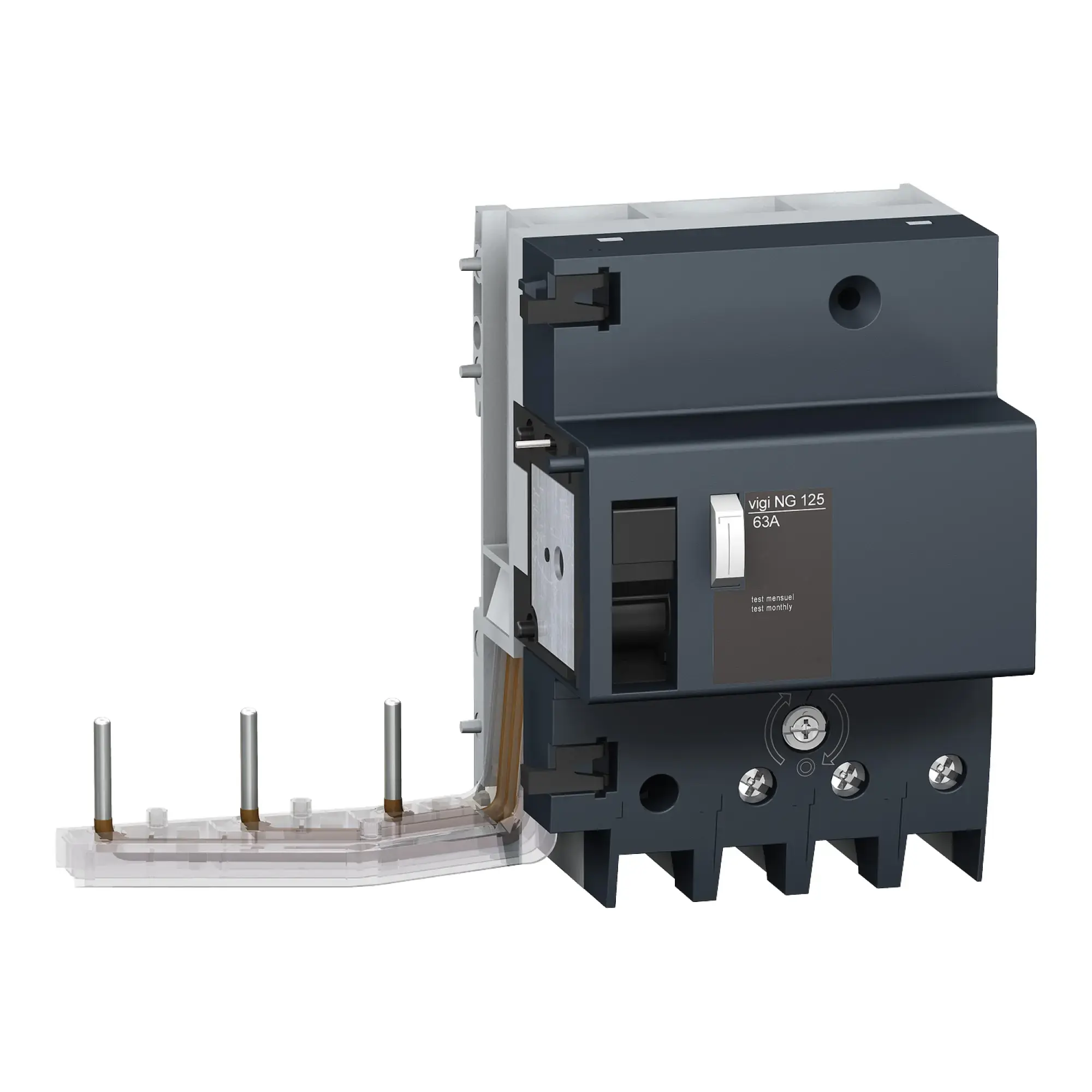

Schneider Electric 19033 RCD Block Vigi NG125, 3P, 63A, 1000mA, Type A, selective
Sale price:
€550.62
% Regular price: €941.29 (41.5% saved)
Available to order, delivery time: 4-6 Bussines days
Art. No: WST8810005411 P/N: 19033 Manufacturer: Schneider Electric
Secure Payment
Fast Shipping
Expert Advice
Product information "Schneider Electric 19033 RCD Block Vigi NG125, 3P, 63A, 1000mA, Type A, selective"
Schneider Electric RCD Block Vigi NG125, 3P, 63A, 1000mA, Type A, selective
Schneider Electric 19033
EAN 3303430190332
Description
RCD Block Acti 9 Vigi NG125. 3-pole, rated current 63A, rated residual current 1000mA, Type A, selective, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 690V AC. Can be mounted on the right side of the circuit breaker series NG125. The triggering by residual current is indicated by a red mechanical indicator on the toggle. Terminals IP 20. Test button for regular functional testing. Technology of the trigger unit - thermomagnetic. Additional modular accessories (optional) - shunt trip (MXV) and fault signal switch (SDV). The Vigi NG125 RCD Block meets the following standards: IEC/EN 61009-1. Additionally, this series is VDE certified!
Documents & Downloads
Product Attributes
| Nennspannung | 230V |
|---|---|
| Nennstrom | 63A |
| Bemessungsfehlerstrom einstellbar | |
| Bemessungsfehlerstrom | 1A |
| Max. Verzögerungszeit | 0ms |
| Verzögerungszeit einstellbar | |
| Polzahl | 3 |
| Fehlerstrom-Typ | A |
| Stoßstromfestigkeit | 5kA |
| Frequenz | 50/60 Hz |
| Bemessungsisolationsspannung Ui | 690V |
| Bemessungsstoßspannungsfestigkeit Uimp | 8kV |
| Verlustleistung | -W |
| Anschließbarer Leiterquerschnitt eindrähtig | 1.5mm² |
| Anschließbarer Leiterquerschnitt mehrdrähtig | 1mm² |
| Fehlauslöseschutz | |
| Mit Verriegelungsvorrichtung | 1 |
| Schutzart (IP) | IP20 |
| Verschmutzungsgrad | 3 |
| Umgebungstemperatur während des Betriebs | 25°C |
Technical data
| P/N (Part Number) | 19033 |
|---|---|
| EAN | 3303430190332 |
| ETIM | EC002297 |
| SCIP | 81454b7e-fcdf-4818-a481-efccd54a351f |
| ECLASS | eClass_10_ACN357011 |
| Weight | 0.48 kg |
| Weight (Package) | 0.48 kg |
Designations
RCB RCB Block Vigi earth fault residual current residual current block
