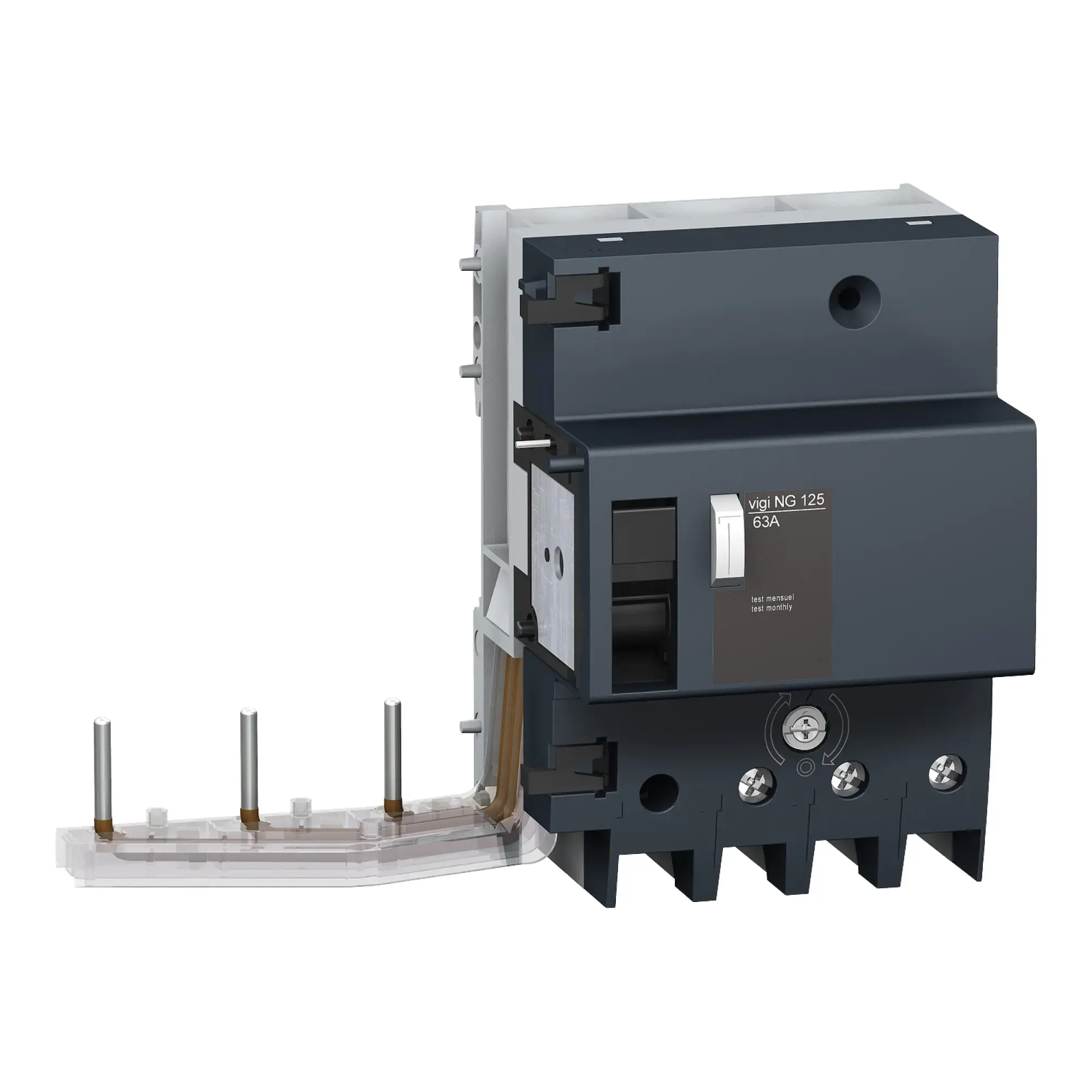

Schneider Electric 19014 RCD Block Vigi NG125, 3P, 63A, 300mA, Type A
€377.29
% €644.98 (41.5% saved)
Available, delivery time: 4-6 Bussines days
Art. No: WST8810005405 P/N: 19014 Manufacturer: Schneider Electric
Secure Payment
Fast Shipping
Expert Advice
Product information "Schneider Electric 19014 RCD Block Vigi NG125, 3P, 63A, 300mA, Type A"
Schneider Electric RCD Block Vigi NG125, 3P, 63A, 300mA, Type A
Schneider Electric 19014
EAN 3303430190141
Description
RCD Block Acti 9 Vigi NG125. 3-poles, rated current 63A, rated residual current 300mA, Type A, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 690V AC. Can be mounted on the right side of circuit breakers of the NG125 series. Tripping by residual current is indicated by a red, mechanical display on the toggle. Terminals IP 20. Test button for regular testing of the function. Tripping unit technology- thermomagnetic. Additional modular auxiliary equipment (optional)- shunt trip (MXV) and fault signal switch (SDV). The Vigi NG125 RCD Block meets the following standards- IEC/EN 61009-1. Moreover, this series is VDE certified!
Documents & Downloads
Product Attributes
| Nennspannung | 230V |
|---|---|
| Nennstrom | 63A |
| Bemessungsfehlerstrom einstellbar | |
| Bemessungsfehlerstrom | 0.3A |
| Max. Verzögerungszeit | 0ms |
| Verzögerungszeit einstellbar | |
| Polzahl | 3 |
| Fehlerstrom-Typ | A |
| Stoßstromfestigkeit | 3kA |
| Frequenz | 50/60 Hz |
| Bemessungsisolationsspannung Ui | 690V |
| Bemessungsstoßspannungsfestigkeit Uimp | 8kV |
| Verlustleistung | -W |
| Anschließbarer Leiterquerschnitt eindrähtig | 1.5mm² |
| Anschließbarer Leiterquerschnitt mehrdrähtig | 1mm² |
| Fehlauslöseschutz | |
| Mit Verriegelungsvorrichtung | 1 |
| Schutzart (IP) | IP20 |
| Verschmutzungsgrad | 3 |
| Umgebungstemperatur während des Betriebs | -25°C |
Technical data
| P/N (Part Number) | 19014 |
|---|---|
| EAN | 3303430190141 |
| ETIM | EC002297 |
| SCIP | 81454b7e-fcdf-4818-a481-efccd54a351f |
| ECLASS | eClass_10_ACN357011 |
| Weight | 0.48 kg |
| Weight (packaged) | 0.48 kg |
Designations
RCD RCD Block Vigi earth fault residual current residual current block
