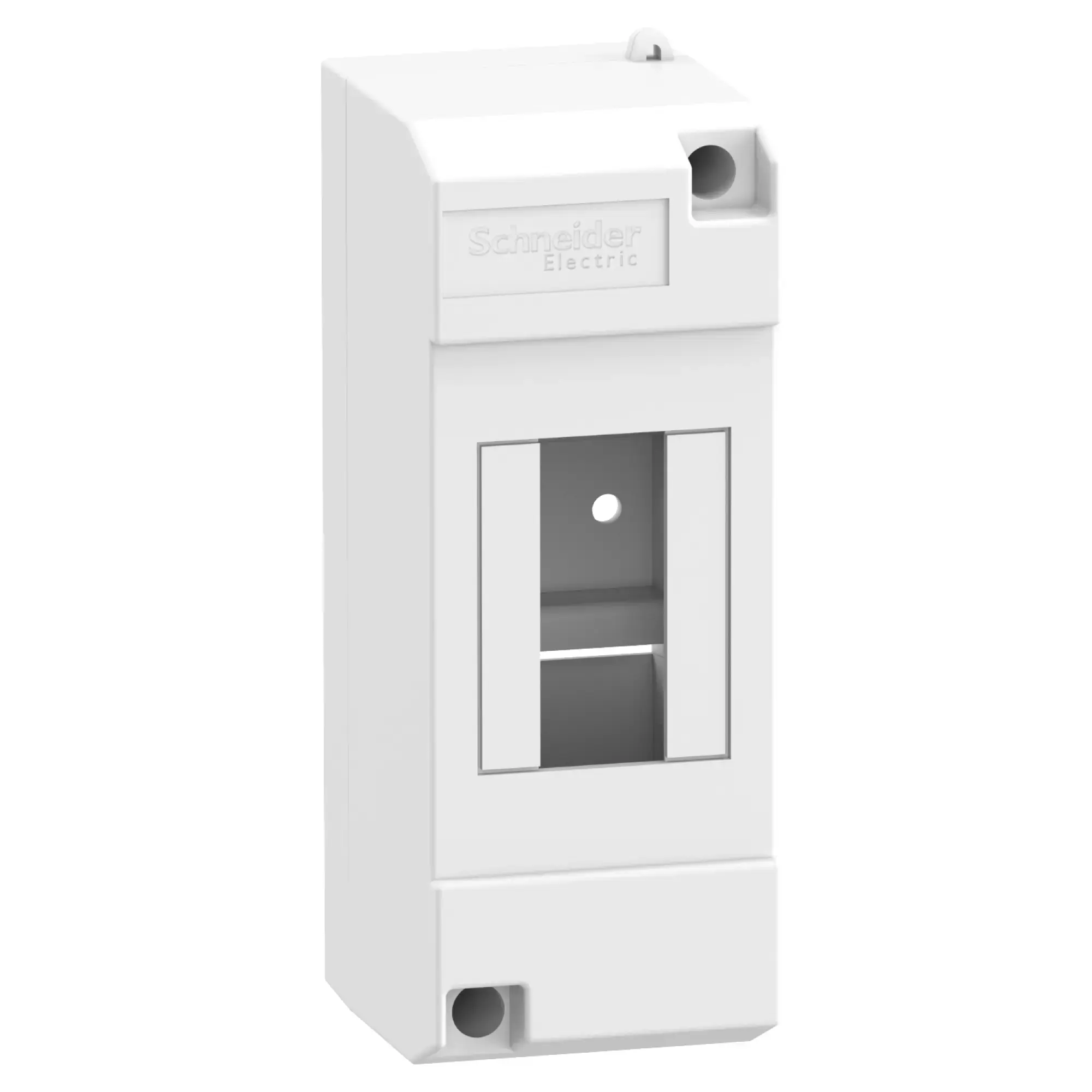

Schneider Electric 10205 Micro Pragma Surface-Mounted Enclosure, 2 modules, IP40, with DIN Mounting Rail
€8.31
% €11.89 (30.11% saved)
Available, delivery time: 2-3 Bussines days
Product number: WST8810005002
Manufacturer: Schneider ElectricP/N: 10205
Product information "Schneider Electric 10205 Micro Pragma Surface-Mounted Enclosure, 2 modules, IP40, with DIN Mounting Rail"
Schneider Electric Micro Pragma Surface-Mounted Enclosure, 2 modules, IP40, with DIN Mounting Rail
Schneider Electric 10205
EAN 3303430102052
Description
Micro Pragma surface-mounted enclosure with built-in DIN mounting rail. Width for device installations: 2 modules, knock-out pre-stamps for cable entries on all 4 sides, upper part of the enclosure with integrated sealability, 2 knockout cover strips. Degree of protection according to IEC 60529 - IP40, self-extinguishing plastic, glow wire test: 650 °C / 30 s according to IEC 60695. Dimensions: 130 x 51 x 60 (H x W x D). Color: White RAL 9003.
Documents & Downloads
Product Attributes
| Montageart | Aufputz |
|---|---|
| Anzahl der Reihen | 1 |
| Breite in Teilungseinheiten | 2 |
| Art der Abdeckung | Deckel |
| Ausführung Deckel | mit Ausschnitt |
| Art der Tür | |
| Transparenter Deckel/Tür | |
| Signaldurchlassende Tür | |
| Mit Schloss | |
| Art der Schließung | |
| Werkstoff des Gehäuses | Kunststoff |
| Einbautiefe | -mm |
| Einbauhöhe | -mm |
| Einbaubreite | -mm |
| Innentiefe | 54mm |
| Erdungsklemmenblock | |
| Neutralleiterklemmenblock | |
| DIN-Schiene | 1 |
| Mit Montageplatte | |
| Anbaumöglichkeit | |
| EMV-Ausführung | |
| UV-beständig | |
| Farbe | weiß |
| RAL-Nummer | 9003 |
| Schutzart (IP) | IP30 |
| Höhe | 130mm |
| Breite | 51mm |
| Tiefe | 60mm |
Technical data
| P/N (Part Number) | 10205 |
|---|---|
| EAN | 3303430102052 |
| ETIM | EC000214 |
| SCIP | b7c6f1d6-d622-4f6c-907b-f4c3173076cb |
| ECLASS | eClass_10_ACN387011 |
| Weight | 0.07 kg |
| Weight (packaged) | 0.07 kg |
Designations
Circuit breaker box Circuit breaker cabinet Circuit breaker unit Distribution board connector Distributor Enclosure Fuse box Installation distributor Main distributor Mini distributor Small distributor Small installation distributor Surface-mounted distributor
