3274161
Phoenix Contact 3274161 Distribution block PTFIX 18X2,5-NS15A PK
€881.92*
% €1,262.59* (30.15% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810205591
Manufacturer: Phoenix ContactP/N: 3274161
Product information "Phoenix Contact 3274161 Distribution block PTFIX 18X2,5-NS15A PK"

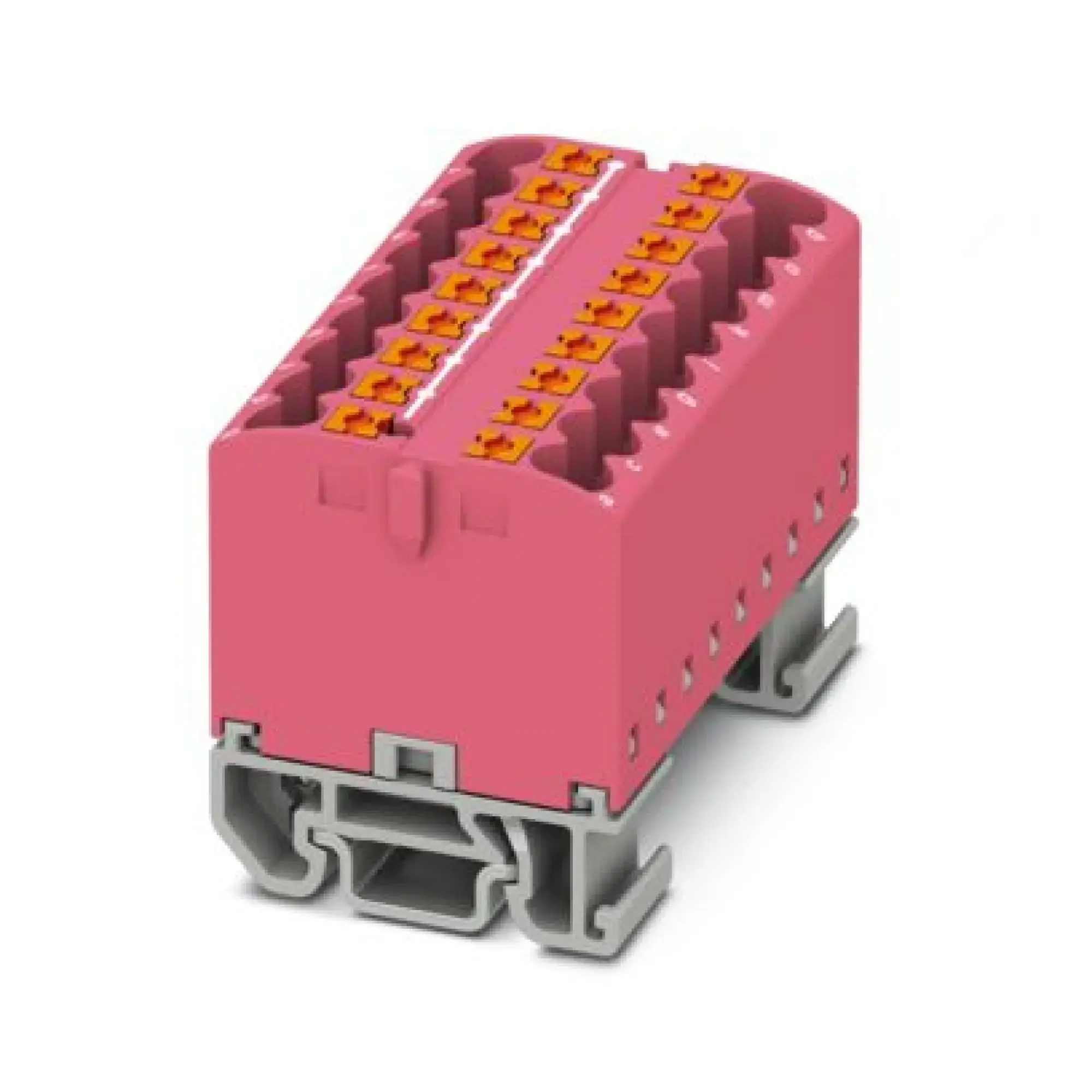

Phoenix Contact Distribution block PTFIX 18X2,5-NS15A PK
Phoenix Contact 3274161
EAN 4055626393742
Description
Distribution block, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 15, color: pink
Documents & Downloads
Product Attributes
| Bemessungsstrom In (A) | 24 |
|---|---|
| Bemessungsspannung (kV) | 690 |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Klemmstellen je Etage | 18 |
| Montageart | Hutschiene TH15 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 46.9 |
| Höhe (mm) | 28.6 |
| Tiefe (mm) | 31.4 |
| Farbe | sonstige |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3274161 |
|---|---|
| EAN | 4055626393742 |
| ETIM | EC000897 |
| Weight | 0.0045125 kg |
| Weight (packaged) | 0.0045125 kg |
