3273630

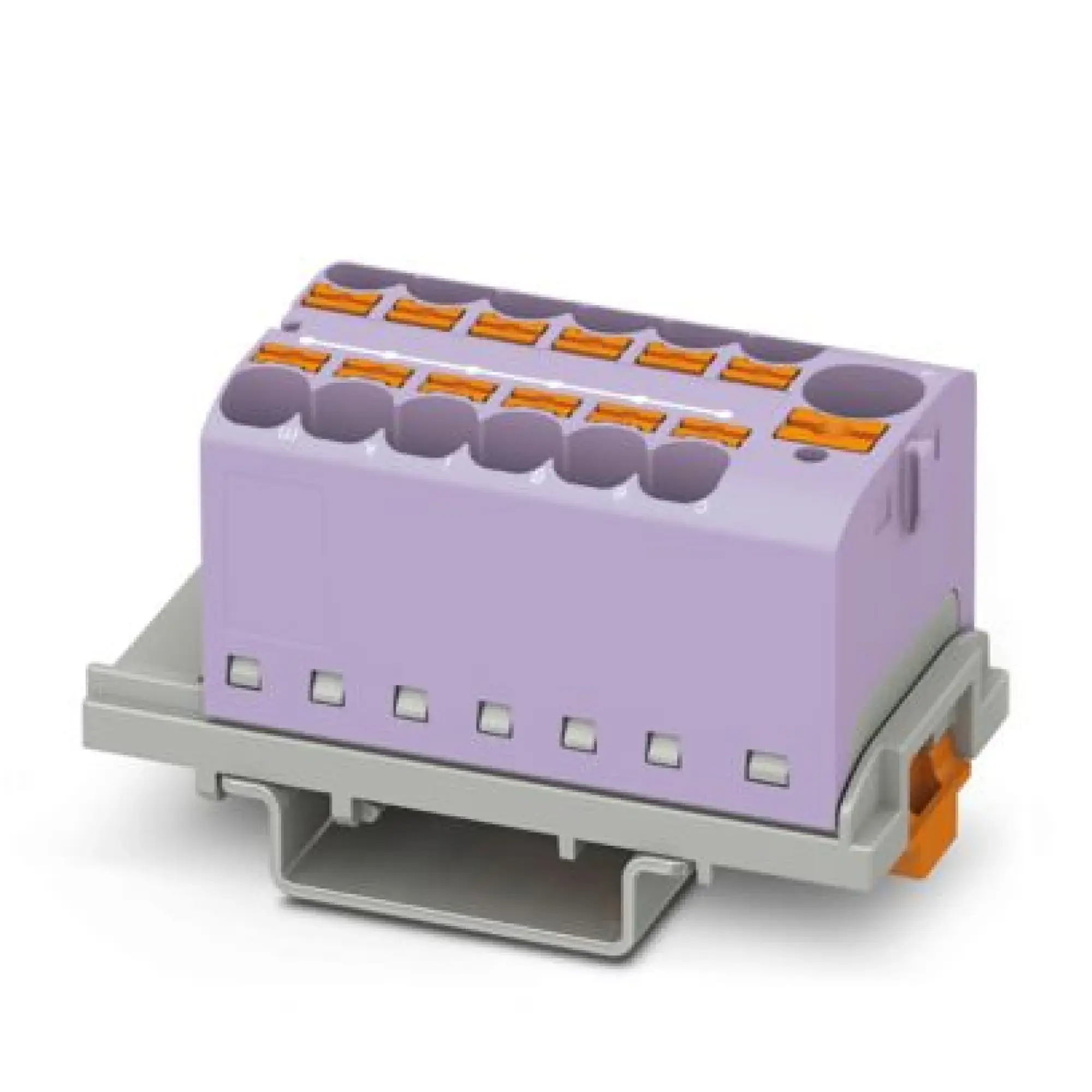

Phoenix Contact 3273630 Distribution block PTFIX 10/12X4-NS35 VT
€8.98
Available to order, delivery time: 2-3 Weeks
Art. No: WST8810205328 P/N: 3273630 Manufacturer: Phoenix Contact
Secure Payment
Fast Shipping
Expert Advice
Product information "Phoenix Contact 3273630 Distribution block PTFIX 10/12X4-NS35 VT"
Phoenix Contact Distribution block PTFIX 10/12X4-NS35 VT
Phoenix Contact 3273630
EAN 4055626667461
Description
Distribution block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 13, connection method: Push-in connection, Rated cross section: 4 mm², Load contact, cross section: 0.2 mm² - 6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: violet
Documents & Downloads
Product Attributes
| Ausführung elektrischer Anschluss 1 | sonstige |
|---|---|
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Klemmstellen je Etage | 13 |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 28.6 |
| Höhe (mm) | 58.1 |
| Tiefe (mm) | 30.4 |
| Farbe | sonstige |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3273630 |
|---|---|
| EAN | 4055626667461 |
| ETIM | EC000897 |
| Weight | 0.01 kg |
| Weight (packaged) | 0.04 kg |
