3273198

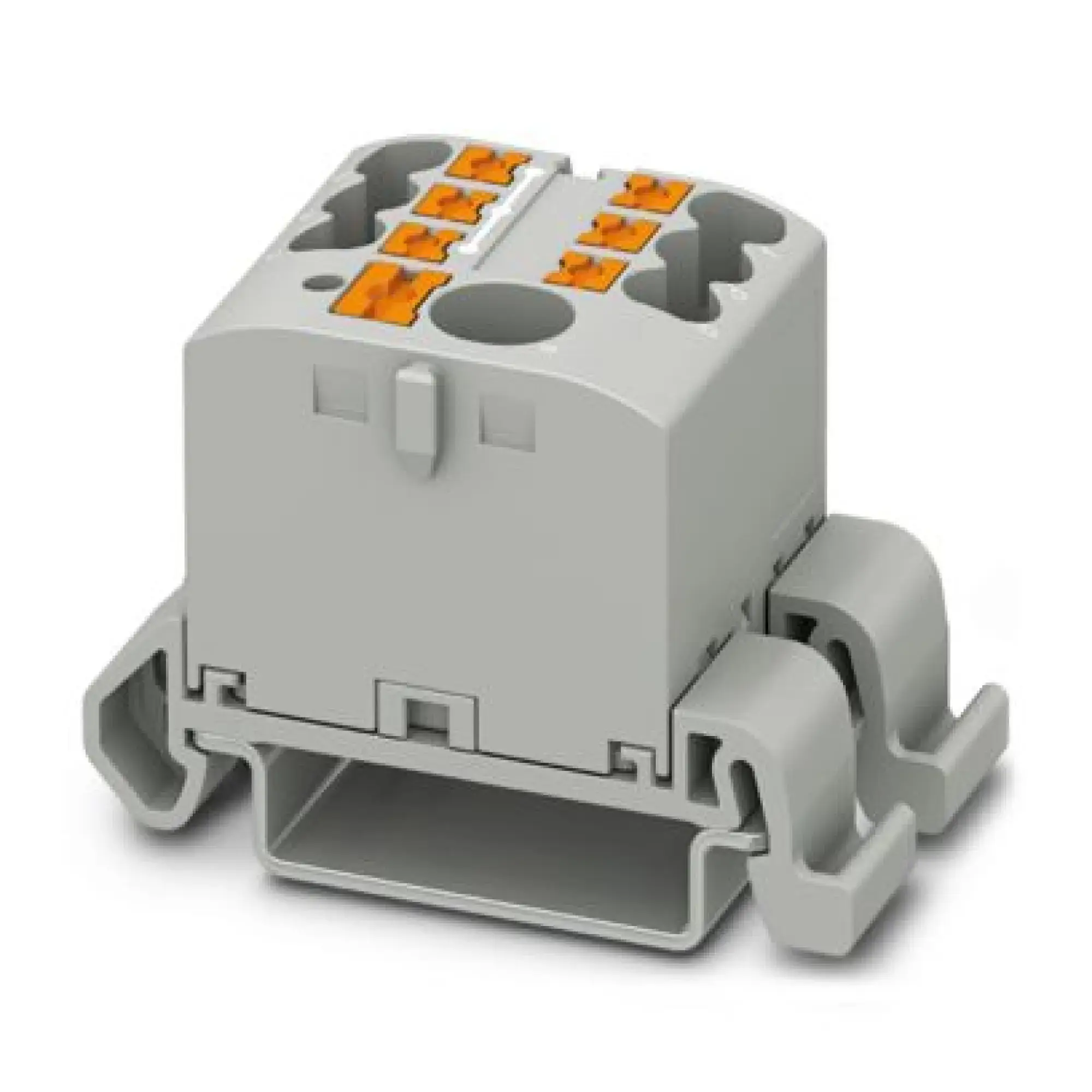

Phoenix Contact 3273198 Distribution block PTFIX 6/6X2,5-NS35A GY
€419.26*
% €600.24* (30.15% saved)Available, delivery time: 3-5 Bussines days
Product number: WST8810205093
Manufacturer: Phoenix ContactP/N: 3273198
Product information "Phoenix Contact 3273198 Distribution block PTFIX 6/6X2,5-NS35A GY"
Phoenix Contact Distribution block PTFIX 6/6X2,5-NS35A GY
Phoenix Contact 3273198
EAN 4055626391618
Description
Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 24 A, number of connections: 7, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
Documents & Downloads
Product Attributes
| Bemessungsstrom In (A) | 24 |
|---|---|
| Bemessungsspannung (kV) | 690 |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Klemmstellen je Etage | 7 |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 25.6 |
| Höhe (mm) | 45.7 |
| Tiefe (mm) | 30.9 |
| Farbe | grau |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3273198 |
|---|---|
| EAN | 4055626391618 |
| ETIM | EC000897 |
| Weight | 0.00225 kg |
| Weight (packaged) | 0.00225 kg |
