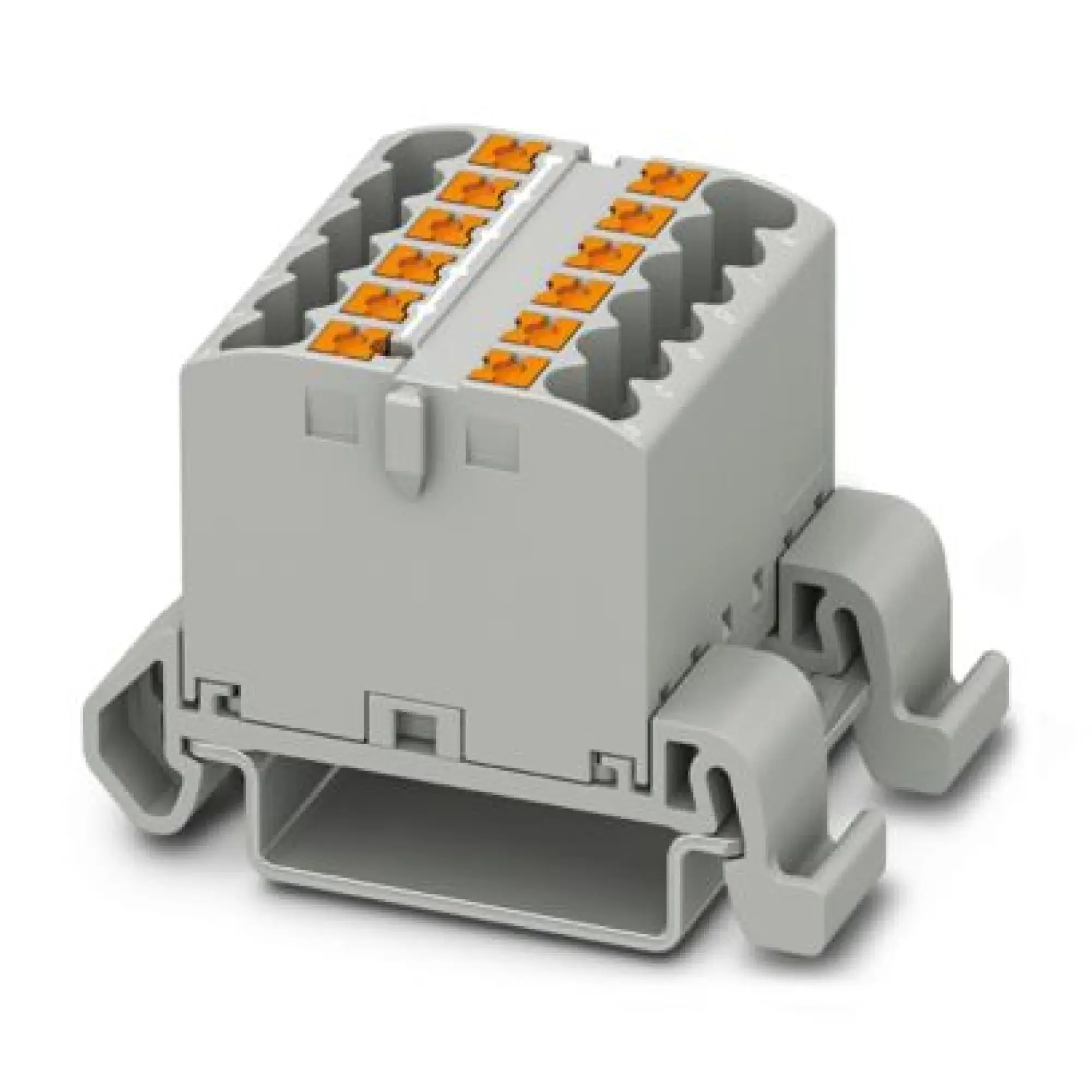

Phoenix Contact 3273154 Distribution block PTFIX 12X2,5-NS35A GY
€6.00
% €8.39 (28.49% saved)
Available, delivery time: 4-6 Bussines days
Art. No: WST8810205071 P/N: 3273154 Manufacturer: Phoenix Contact
Secure Payment
Fast Shipping
Expert Advice
Product information "Phoenix Contact 3273154 Distribution block PTFIX 12X2,5-NS35A GY"
Phoenix Contact Distribution block PTFIX 12X2,5-NS35A GY
Phoenix Contact 3273154
EAN 4055626391373
Description
Distribution block, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, number of connections: 12, connection method: Push-in connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
Documents & Downloads
Product Attributes
| Bemessungsstrom In (A) | 24 |
|---|---|
| Bemessungsspannung (kV) | 690 |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Klemmstellen je Etage | 12 |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 31.5 |
| Höhe (mm) | 45.7 |
| Tiefe (mm) | 30.9 |
| Farbe | grau |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3273154 |
|---|---|
| EAN | 4055626391373 |
| ETIM | EC000897 |
| Weight | 0.0033 kg |
| Weight (packaged) | 0.03 kg |
