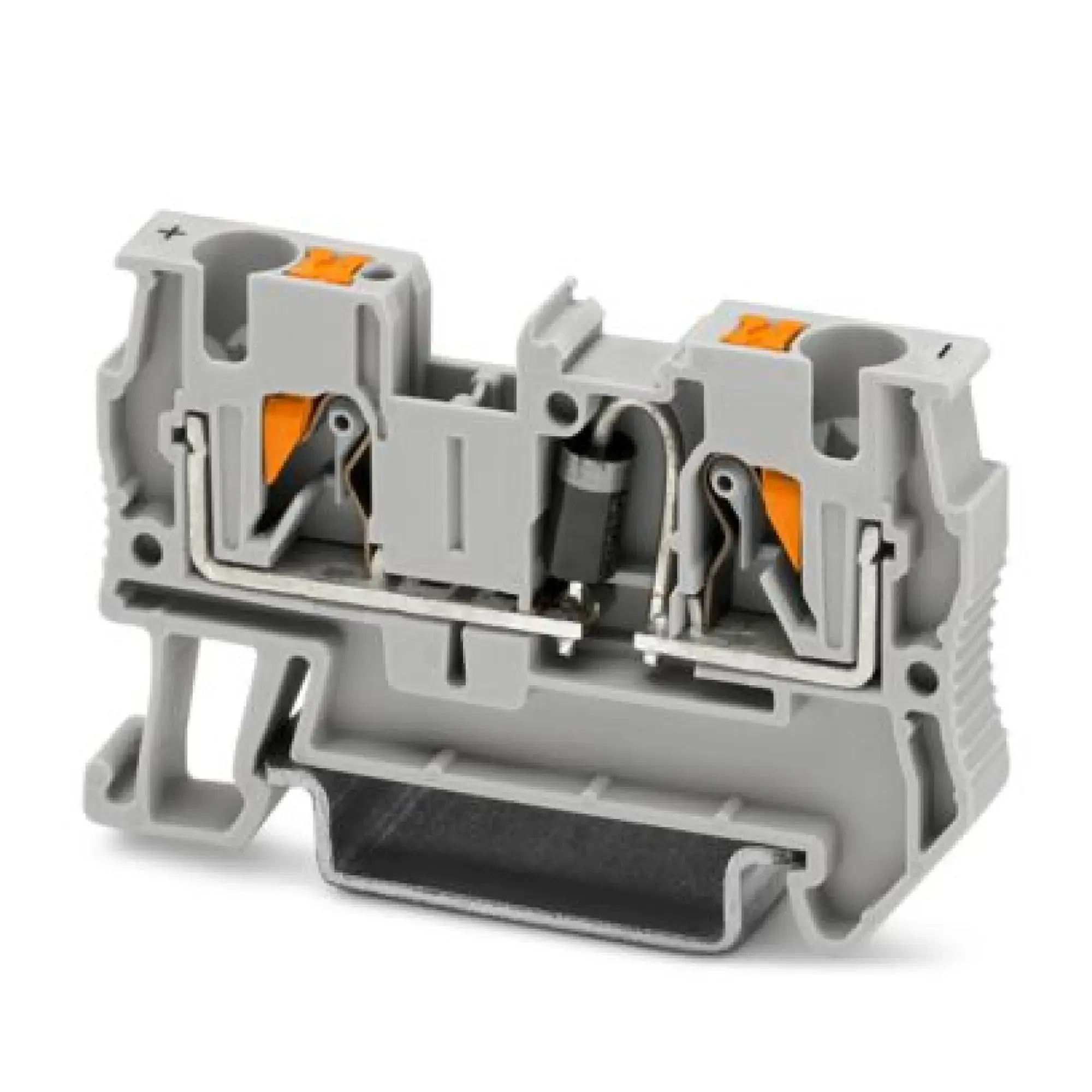

Phoenix Contact 3212112 Component terminal block PT 4-DIO 1N 5408/L-R
€3.24
% €4.64 (30.17% saved)
Available, delivery time: 4-6 Bussines days
Product number: WST8810203407
Manufacturer: Phoenix ContactP/N: 3212112
Product information "Phoenix Contact 3212112 Component terminal block PT 4-DIO 1N 5408/L-R"
Phoenix Contact Component terminal block PT 4-DIO 1N 5408/L-R
Phoenix Contact 3212112
EAN 4046356509183
Description
Component terminal block, The max. current is determined by the diode. Installed: diode 1N 5408, reverse voltage: 1000 V, maximum continuous current: 1.5 A, with integrated diode 1N5408, nominal current: 1.5 A, connection method: Push-in connection, Rated cross section: 1 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Documents & Downloads
Product Attributes
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) | 0.2 |
|---|---|
| Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse (mm²) | 0.25 |
| Anschließbarer Leiterquerschnitt eindrähtig (mm²) | 0.2 |
| Bemessungsstrom In (A) | 1.5 |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | sonstige |
| Anzahl der Etagen | 1 |
| Anzahl der Klemmstellen je Etage | 2 |
| Etagen intern gebrückt | 1 |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 6.2 |
| Höhe (mm) | 56 |
| Tiefe (mm) | 36.5 |
| Abschlussplatte erforderlich | 1 |
| Farbe | grau |
Technical data
| P/N (Part Number) | 3212112 |
|---|---|
| EAN | 4046356509183 |
| ETIM | EC000903 |
| Weight | 0.0001814 kg |
| Weight (packaged) | 0.0001814 kg |
