€1,118.06*
% €1,600.67* (30.15% saved)Available, delivery time: 3-5 Bussines days
Product number: WST8810203321
Manufacturer: Phoenix ContactP/N: 3211890
Product information "Phoenix Contact 3211890 Fuse modular terminal block PTTB 4-HESILED 60 (5X20)"

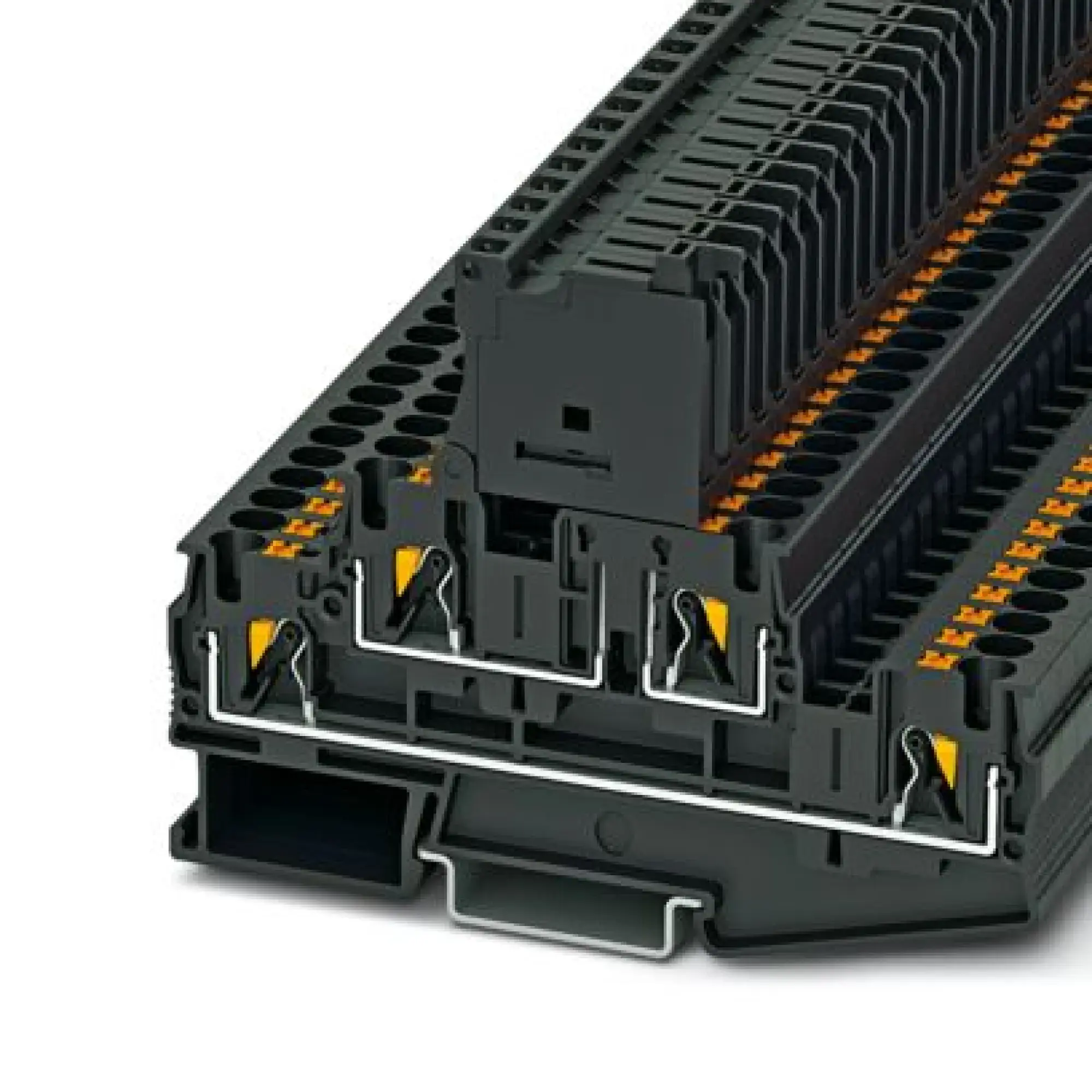

Phoenix Contact Fuse modular terminal block PTTB 4-HESILED 60 (5X20)
Phoenix Contact 3211890
EAN 4055626047614
Description
Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 28 A, connection method: Push-in connection, 1 level, Rated cross section: 4 mm², cross section: 0.2 mm²- 6 mm², connection method: Push-in connection, 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, color: black
Documents & Downloads
Product Attributes
Ausführung des Sicherungseinsatzes | sonstige |
---|---|
Ausführung des Sicherungshalters | sonstige |
Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) | 0.2 |
Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse (mm²) | 0.25 |
Anschließbarer Leiterquerschnitt eindrähtig (mm²) | 0.2 |
Bemessungsstrom In (A) | 28 |
Bemessungsspannung (kV) | 500 |
Ausführung elektrischer Anschluss 1 | sonstige |
Ausführung elektrischer Anschluss 2 | sonstige |
Anzahl der Etagen | 2 |
Montageart | Hutschiene TH35 |
Werkstoff des Isolierkörpers | sonstige |
Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
Breite (mm) | 6.15 |
Höhe (mm) | 102.934246 |
Tiefe (mm) | 73.98 |
Farbe | schwarz |
Technical data
P/N (Part Number) | 3211890 |
---|---|
EAN | 4055626047614 |
ETIM | EC000899 |
Weight | 0.0004858 kg |
Weight (packaged) | 0.0004858 kg |
