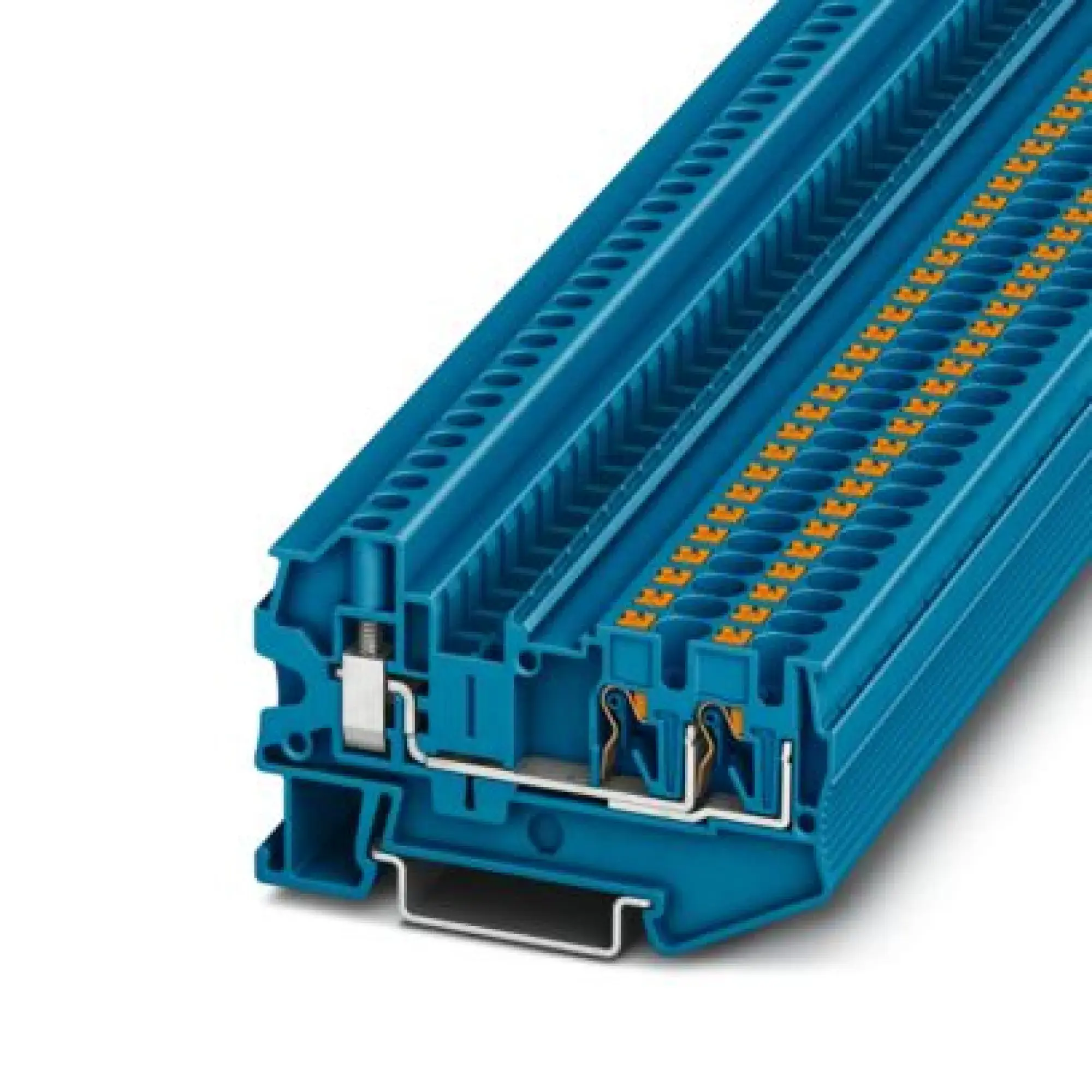

Phoenix Contact 3211860 Feed-through terminal block PTU 4-TWIN BU
€1.27
% €1.82 (30.22% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810203308
Manufacturer: Phoenix ContactP/N: 3211860
Product information "Phoenix Contact 3211860 Feed-through terminal block PTU 4-TWIN BU"
Phoenix Contact Feed-through terminal block PTU 4-TWIN BU
Phoenix Contact 3211860
EAN 4046356802123
Description
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue
Documents & Downloads
Product Attributes
| Bemessungsstrom In (A) | 32 |
|---|---|
| Bemessungsspannung (kV) | 800 |
| Ausführung elektrischer Anschluss 1 | sonstige |
| Ausführung elektrischer Anschluss 2 | Schraubanschluss |
| Anzahl der Etagen | 1 |
| Anzahl der Klemmstellen je Etage | 3 |
| Geeignet für Leiterwerkstoff | Aluminium/Kupfer |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 6.2 |
| Höhe (mm) | 69.3 |
| Tiefe (mm) | 42.8 |
| Abschlussplatte erforderlich | 1 |
| Farbe | blau |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3211860 |
|---|---|
| EAN | 4046356802123 |
| ETIM | EC000897 |
| Weight | 0.0002244 kg |
| Weight (packaged) | 0.0002244 kg |
