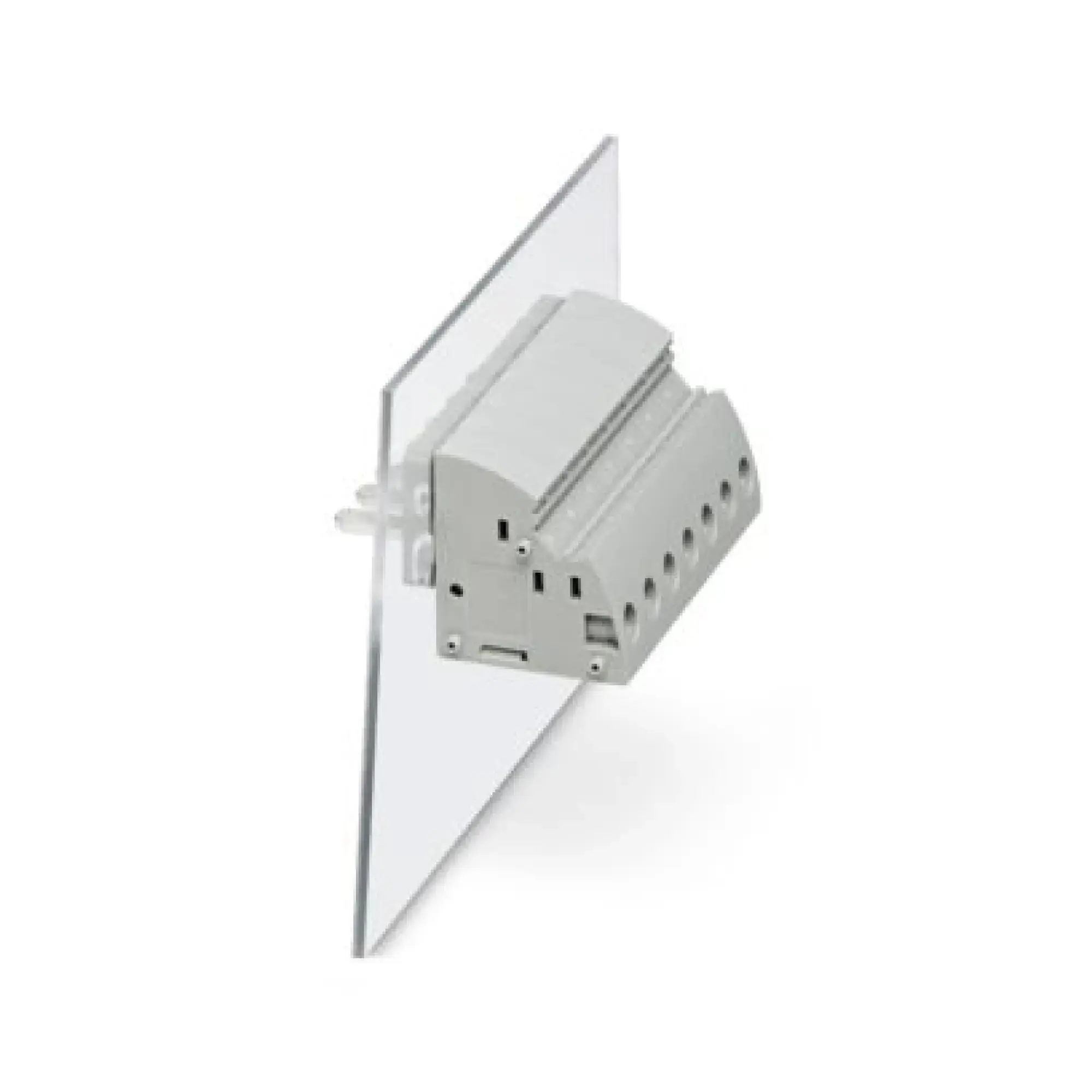

Phoenix Contact 3073539 Panel feed-through terminal block UWV 10-POT/S

Product information "Phoenix Contact 3073539 Panel feed-through terminal block UWV 10-POT/S"

Phoenix Contact Panel feed-through terminal block UWV 10-POT/S

Phoenix Contact 3073539

EAN 4046356344777

Description

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Solder connection, number of positions: 1, load current: 57 A, cross section: 0.5 mm² - 16 mm², connection direction of the conductor to plug-in direction: -90 °, width: 10.1 mm, color: gray

Documents & Downloads

Product Attributes

Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) 0.5
Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse (mm²) 0.5
Anschließbarer Leiterquerschnitt eindrähtig (mm²) 0.5
Anschließbarer Leiterquerschnitt mehrdrähtig (mm²) 0.5
Bemessungsspannung (kV) 500
Ausführung elektrischer Anschluss 1 Schraubanschluss
Ausführung elektrischer Anschluss 2 Lötfahnenanschluss
Polzahl 1
Werkstoff des Isolierkörpers sonstige
Brennbarkeitsklasse des Isolierstoffs nach UL94 V0
Farbe grau

Technical data

P/N (Part Number)3073539
EAN4046356344777
ETIMEC001283
Weight0.000309 kg
Weight (packaged)0.000309 kg
