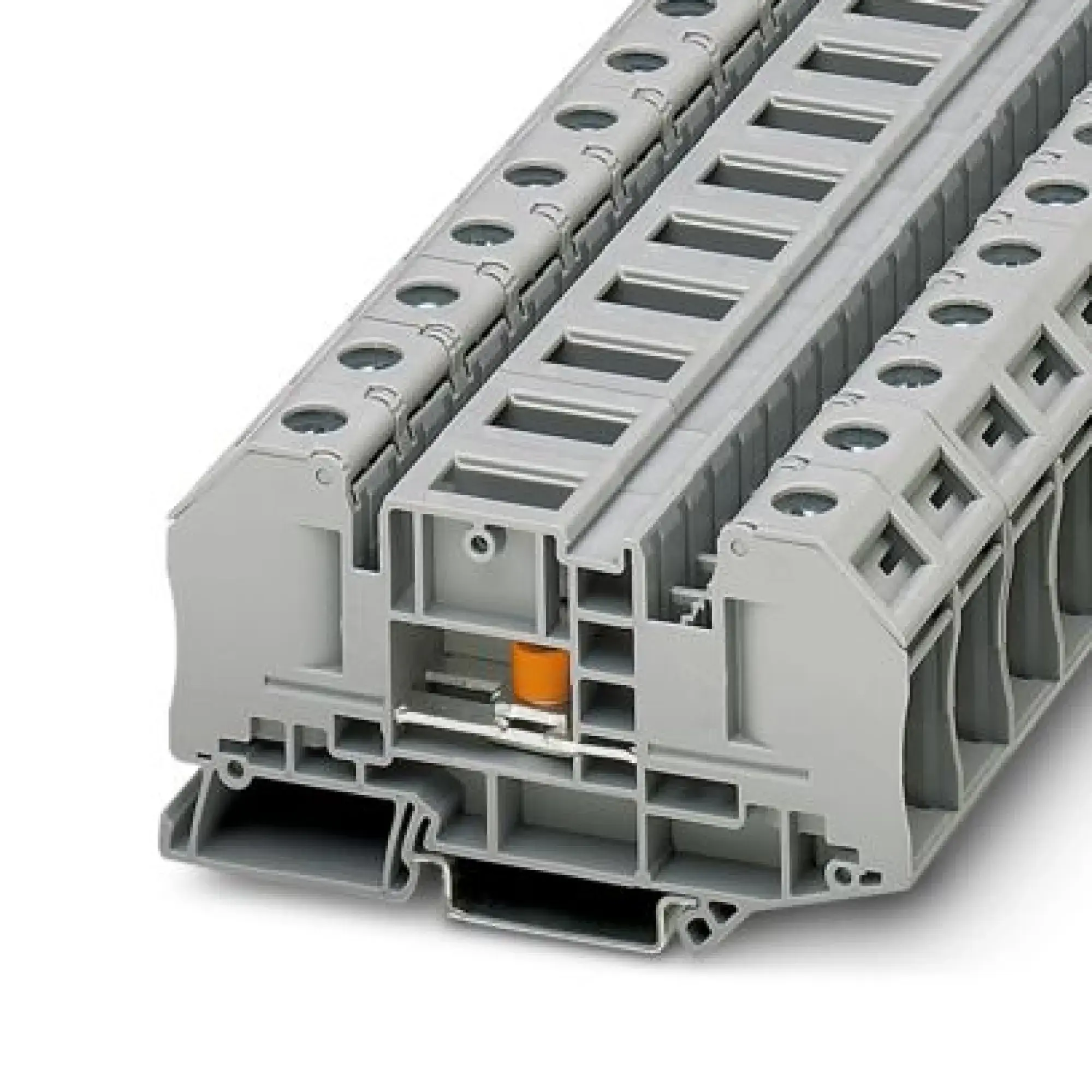

Phoenix Contact 3049039 Test disconnect terminal block RT 5-T
€8.14
% €11.66 (30.19% saved)
Available, delivery time: 4-6 Bussines days
Product number: WST8810201849
Manufacturer: Phoenix ContactP/N: 3049039
Product information "Phoenix Contact 3049039 Test disconnect terminal block RT 5-T"
Phoenix Contact Test disconnect terminal block RT 5-T
Phoenix Contact 3049039
EAN 4046356139991
Description
Test disconnect terminal block, Note: the BE-RT... path extension is to be used for non-insulated cable lugs (see accessories)., nom. voltage: 1000 V, nominal current: 41 A, 1 level, connection method: Bolt connection, Rated cross section: 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Documents & Downloads
Product Attributes
| Bemessungsstrom In (A) | 41 |
|---|---|
| Bemessungsspannung (kV) | 1000 |
| Ausführung elektrischer Anschluss 1 | Bolzenanschluss |
| Ausführung elektrischer Anschluss 2 | Bolzenanschluss |
| Anzahl der Klemmstellen je Etage | 2 |
| Geeignet für Leiterwerkstoff | Aluminium/Kupfer |
| Montageart | Hutschiene TH35 |
| Werkstoff des Isolierkörpers | sonstige |
| Betriebstemperatur (°C) | -60 |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Breite (mm) | 16.3 |
| Höhe (mm) | 91.4 |
| Tiefe (mm) | 51 |
| Abschlussplatte erforderlich | 1 |
| Farbe | grau |
| Etagen intern gebrückt | 1 |
Technical data
| P/N (Part Number) | 3049039 |
|---|---|
| EAN | 4046356139991 |
| ETIM | EC000897 |
| Weight | 0.0020308 kg |
| Weight (packaged) | 0.0020308 kg |
