3042476

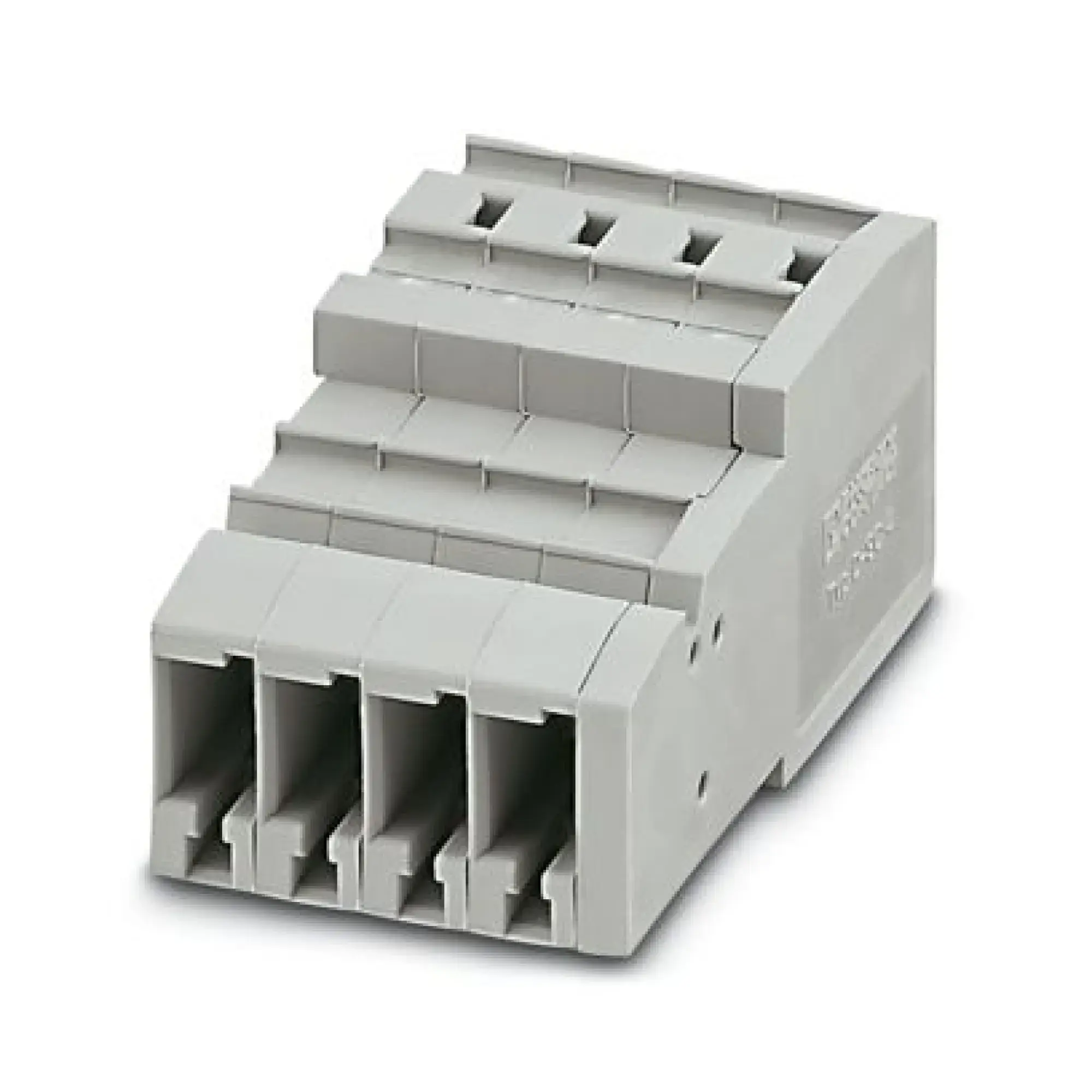

Phoenix Contact 3042476 COMBI coupling SC 4/ 4
€4.52
% €6.47 (30.14% saved)
Available, delivery time: 4-6 Bussines days
Product number: WST8810201435
Manufacturer: Phoenix ContactP/N: 3042476
Product information "Phoenix Contact 3042476 COMBI coupling SC 4/ 4"
Phoenix Contact COMBI coupling SC 4/ 4
Phoenix Contact 3042476
EAN 4046356012614
Description
COMBI coupling, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, number of positions: 4, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², color: gray
Documents & Downloads
Product Attributes
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) | 0.08 |
|---|---|
| Anschließbarer Leiterquerschnitt eindrähtig (mm²) | 0.08 |
| Anschließbarer Leiterquerschnitt mehrdrähtig (mm²) | 0.08 |
| Gesamtpolzahl ohne Erdungskontakt | 2 |
| Breite (mm) | 6.51397 |
| Polzahl | 4 |
Technical data
| P/N (Part Number) | 3042476 |
|---|---|
| EAN | 4046356012614 |
| ETIM | EC002021 |
| Weight | 0.0004416 kg |
| Weight (packaged) | 0.0004416 kg |
