3041529
Phoenix Contact 3041529 COMBI coupling SC 2,5-RZ/ 3
€264.41*
% €378.54* (30.15% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810201388
Manufacturer: Phoenix ContactP/N: 3041529
Product information "Phoenix Contact 3041529 COMBI coupling SC 2,5-RZ/ 3"

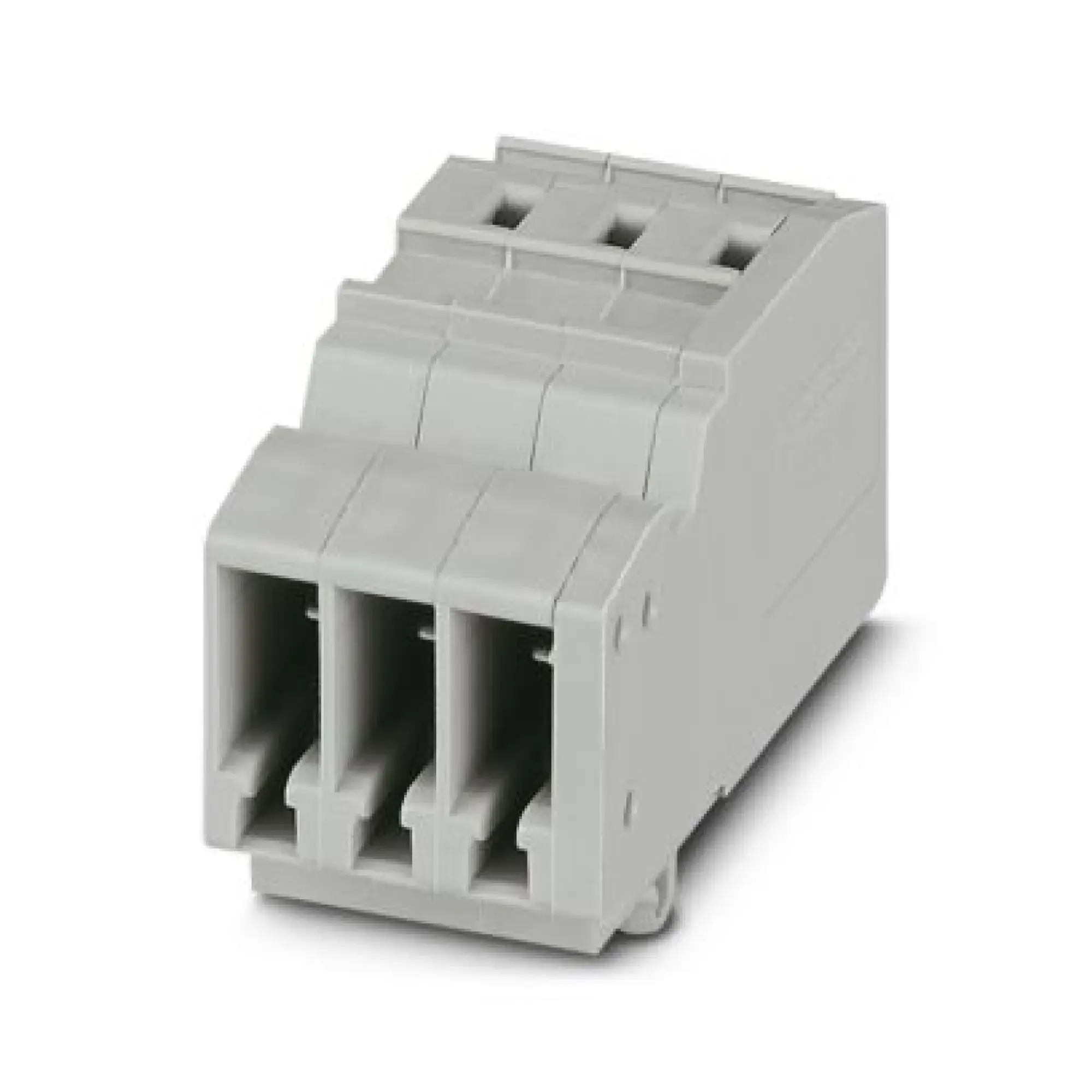

Phoenix Contact COMBI coupling SC 2,5-RZ/ 3
Phoenix Contact 3041529
EAN 4017918922740
Description
COMBI coupling, nom. voltage: 500 V, nominal current: 24 A, number of connections: 1, number of positions: 3, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: on mounting panel, color: gray
Documents & Downloads
Product Attributes
| Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) | 0.08 |
|---|---|
| Anschließbarer Leiterquerschnitt eindrähtig (mm²) | 0.08 |
| Anschließbarer Leiterquerschnitt mehrdrähtig (mm²) | 0.08 |
| Gesamtpolzahl ohne Erdungskontakt | 1 |
| Breite (mm) | 5.15 |
| Polzahl | 3 |
Technical data
| P/N (Part Number) | 3041529 |
|---|---|
| EAN | 4017918922740 |
| ETIM | EC002021 |
| Weight | 0.0002052 kg |
| Weight (packaged) | 0.0002052 kg |
