2907390

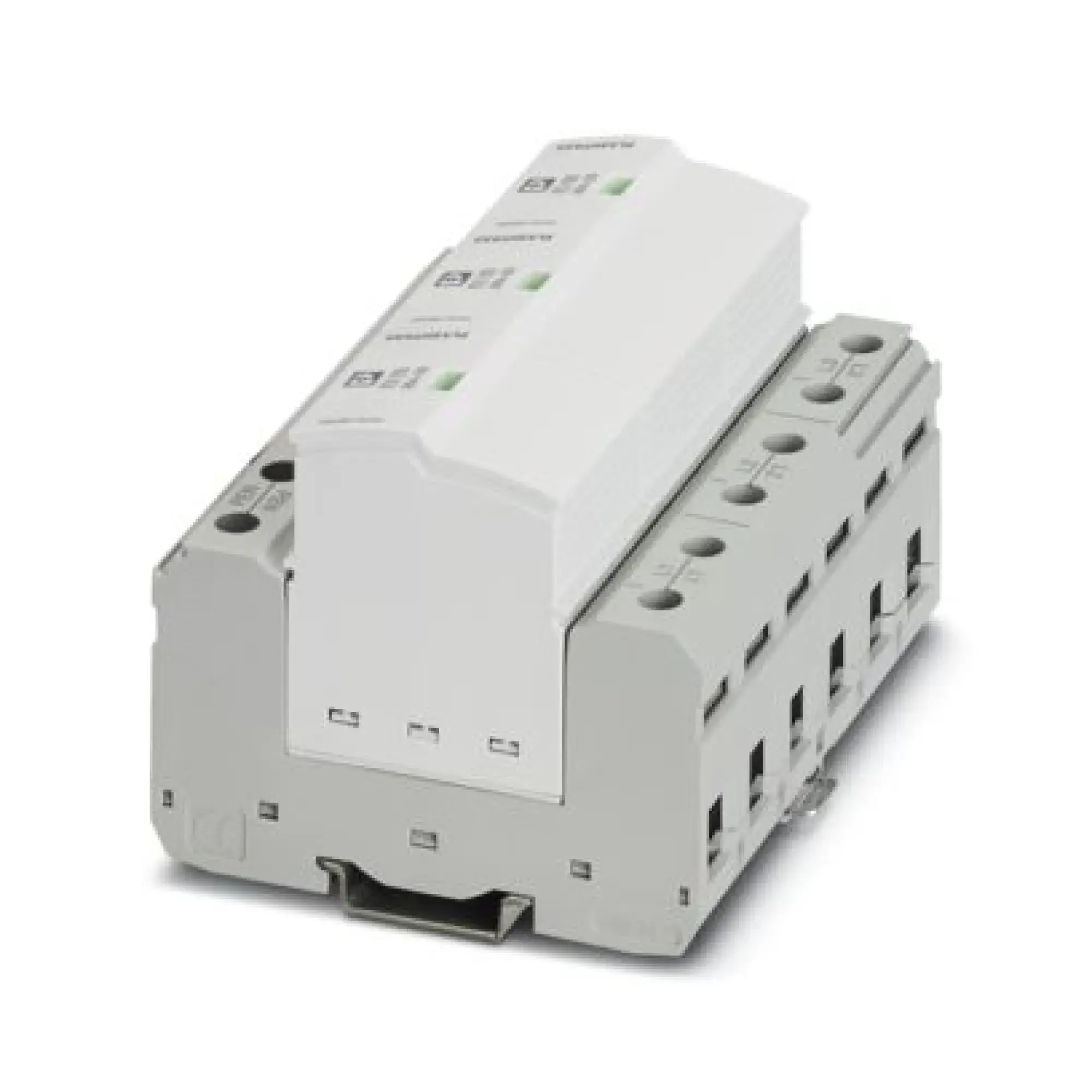

Phoenix Contact 2907390 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3C-264/50-FM
€911.02*
% €1,328.40* (31.42% saved)Available, delivery time: 6-10 Bussines days
Product number: WST8810199218
Manufacturer: Phoenix ContactP/N: 2907390
Product information "Phoenix Contact 2907390 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3C-264/50-FM"
Phoenix Contact Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3C-264/50-FM
Phoenix Contact 2907390
EAN 4055626197227
Description
Plug-in lightning arrester free of leakage current, in accordance with Type 1/Class I, for 3-phase power supply networks, with combined PE and N installed in one conductor (L1, L2, L3, PEN).
Documents & Downloads
Product Attributes
| Netzform TN-C | 1 |
|---|---|
| Blitzstoßstrom (10/350 µs) (kA) | 50 |
| Höchste Dauerspannung AC (V) | 264 |
| Folgestromlöschfähigkeit (kA) | 50 |
| Montageart | Hutschiene TH35 |
| Baugröße | sonstige |
| Max. Leiterquerschnitt starr (ein-/mehrdrähtig) (mm²) | 35 |
| Max. Leiterquerschnitt flexibel (feindrähtig) (mm²) | 35 |
| Mit Fernmeldekontakt | 1 |
| Signalisierung am Gerät | optisch |
| Prüfklasse Typ 1 | 1 |
| Integrierte Vorsicherung | 1 |
| Schutzart (IP) | IP20 |
Technical data
| P/N (Part Number) | 2907390 |
|---|---|
| EAN | 4055626197227 |
| ETIM | EC000381 |
| Weight | 1.1838 kg |
| Weight (packaged) | 1.1838 kg |
