Phoenix Contact 2882763 Type 2 surge arrester VAL-CP-MCB-1S-350/40/FM
€203.13
% €296.19 (31.42% saved)
Available, delivery time: 1-2 Months
Product number: WST8810197890
Manufacturer: Phoenix ContactP/N: 2882763
Product information "Phoenix Contact 2882763 Type 2 surge arrester VAL-CP-MCB-1S-350/40/FM"

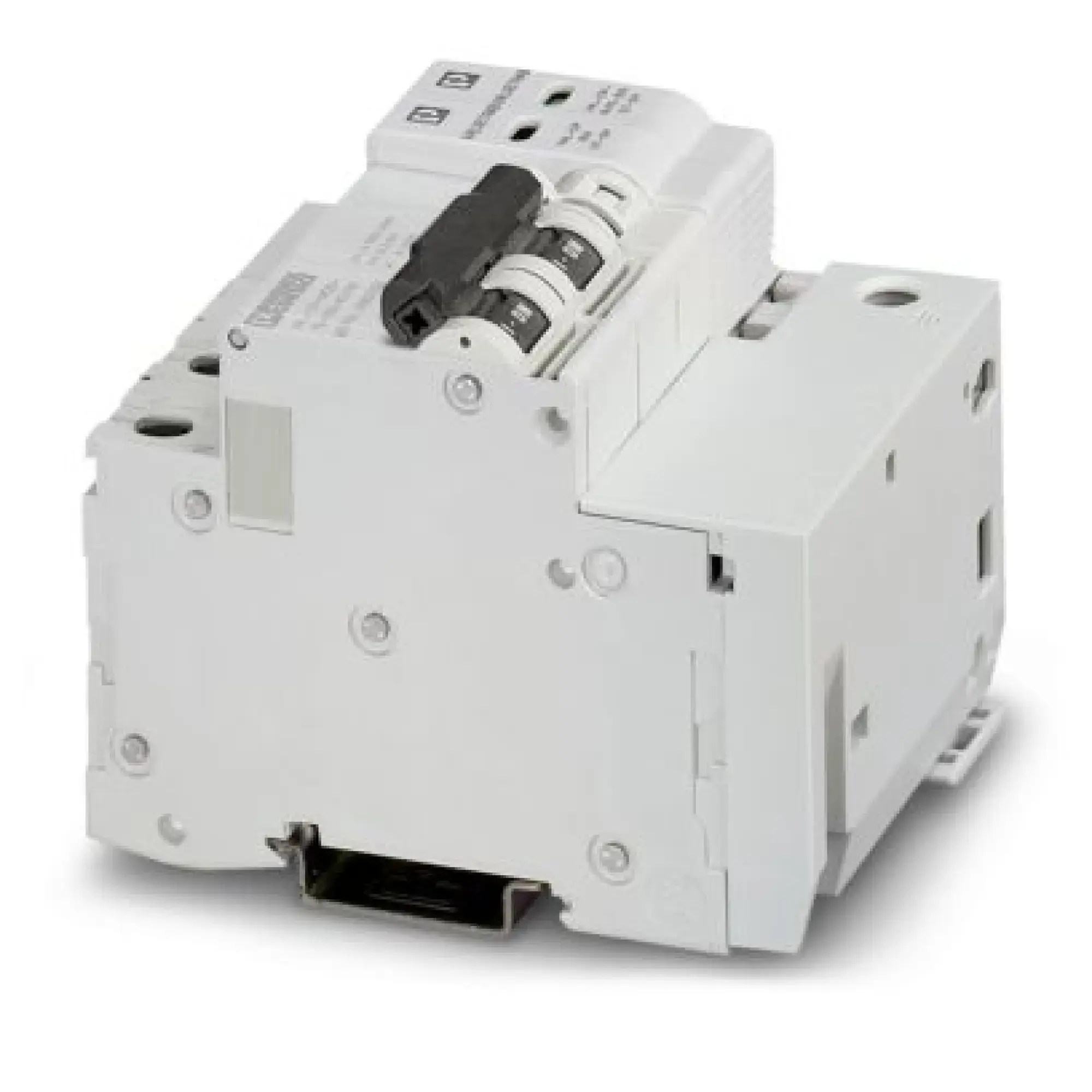

Phoenix Contact Type 2 surge arrester VAL-CP-MCB-1S-350/40/FM
Phoenix Contact 2882763
EAN 4046356175821
Description
Combination of type 2 surge protection and arrester backup fuse, with monitoring of arrester and arrester backup fuse, in combination with a remote indication contact. Design: 3-conductor system (L1, N, PE), mounting on NS 35 DIN rail
Documents & Downloads
Product Attributes
| Netzform TN-S | 1 |
|---|---|
| Nennableitstoßstrom (8/20) (kA) | 15 |
| Max. Ableitstoßstrom (8/20) (kA) | 30 |
| Höchste Dauerspannung AC (V) | 350 |
| Schutzpegel L-N (kV) | 2.5 |
| Schutzpegel N-PE (kV) | 1.7 |
| Max. Überstromschutzeinrichtung V-Verdrahtung (Sicherung) (A) | 40 |
| Kurzschlussfestigkeit (Isccr) (kA) | 25 |
| Integrierte Vorsicherung | 1 |
| Montageart | Hutschiene TH35 |
| Baugröße | sonstige |
| Max. Leiterquerschnitt starr (ein-/mehrdrähtig) (mm²) | 4 |
| Max. Leiterquerschnitt flexibel (feindrähtig) (mm²) | 25 |
| Mit Fernmeldekontakt | 1 |
| Signalisierung am Gerät | optisch |
| Prüfklasse Typ 2 | 1 |
| Schutzart (IP) | IP20 |
Technical data
| P/N (Part Number) | 2882763 |
|---|---|
| EAN | 4046356175821 |
| ETIM | EC000941 |
| Weight | 0.5015 kg |
| Weight (packaged) | 0.5015 kg |
