2800644

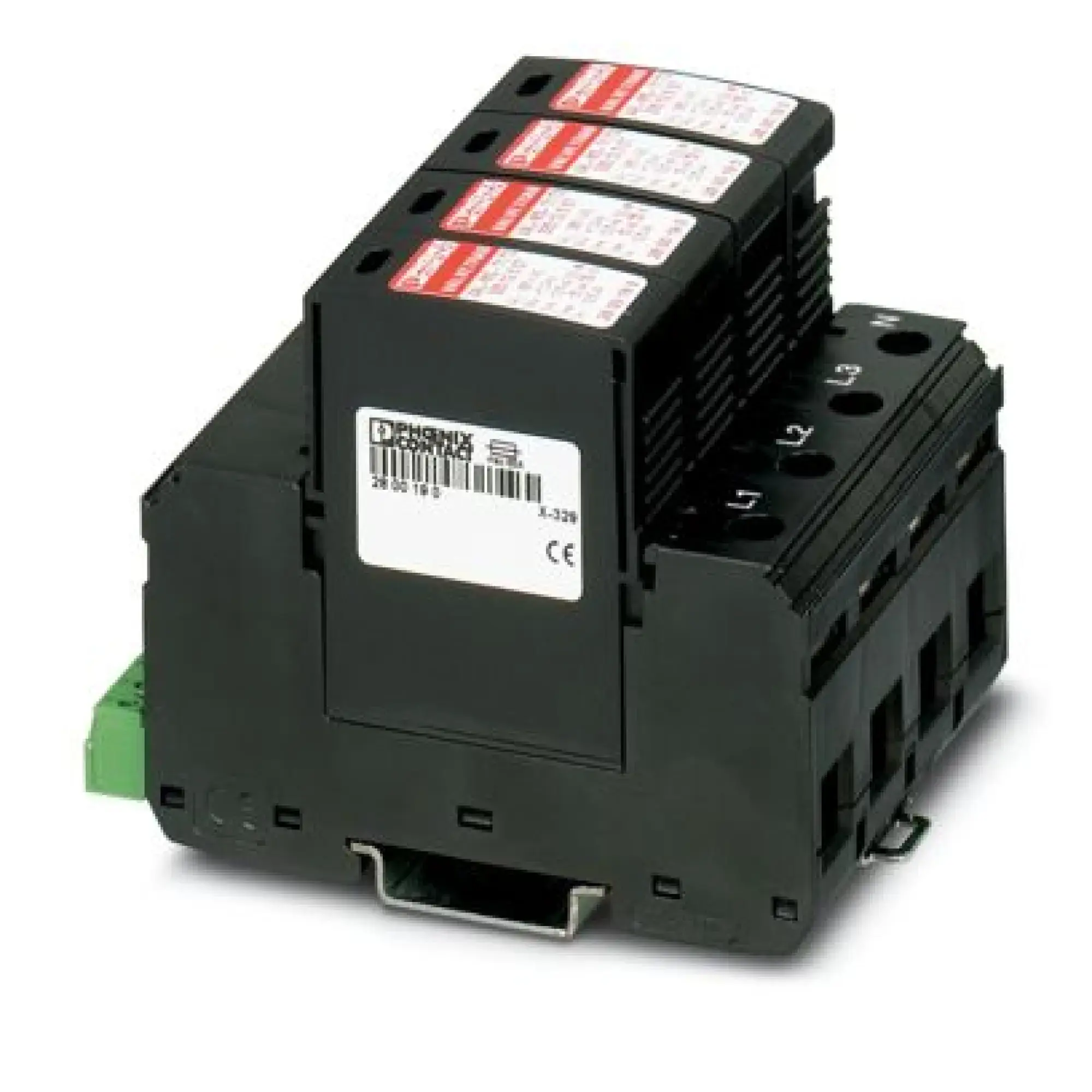

Phoenix Contact 2800644 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/4+0-FM
€539.03*
% €786.00* (31.42% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810197183
Manufacturer: Phoenix ContactP/N: 2800644
Product information "Phoenix Contact 2800644 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/4+0-FM"
Phoenix Contact Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/4+0-FM
Phoenix Contact 2800644
EAN 4046356624268
Description
Plug-in varistor-based lightning current arrester for 3-phase TN-S power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE), for Lightning Protection Levels III and IV, with remote indication contact.
Documents & Downloads
Product Attributes
| Netzform TN-S | 1 |
|---|---|
| Blitzstoßstrom (10/350 µs) (kA) | 12.5 |
| Höchste Dauerspannung AC (V) | 335 |
| Montageart | Hutschiene TH35 |
| Baugröße | sonstige |
| Max. Leiterquerschnitt starr (ein-/mehrdrähtig) (mm²) | 35 |
| Max. Leiterquerschnitt flexibel (feindrähtig) (mm²) | 25 |
| Mit Fernmeldekontakt | 1 |
| Signalisierung am Gerät | optisch |
| Prüfklasse Typ 1 | 1 |
| Integrierte Vorsicherung | 1 |
| Schutzart (IP) | IP20 |
Technical data
| P/N (Part Number) | 2800644 |
|---|---|
| EAN | 4046356624268 |
| ETIM | EC000381 |
| Weight | 0.7233 kg |
| Weight (packaged) | 0.7233 kg |
