2770286

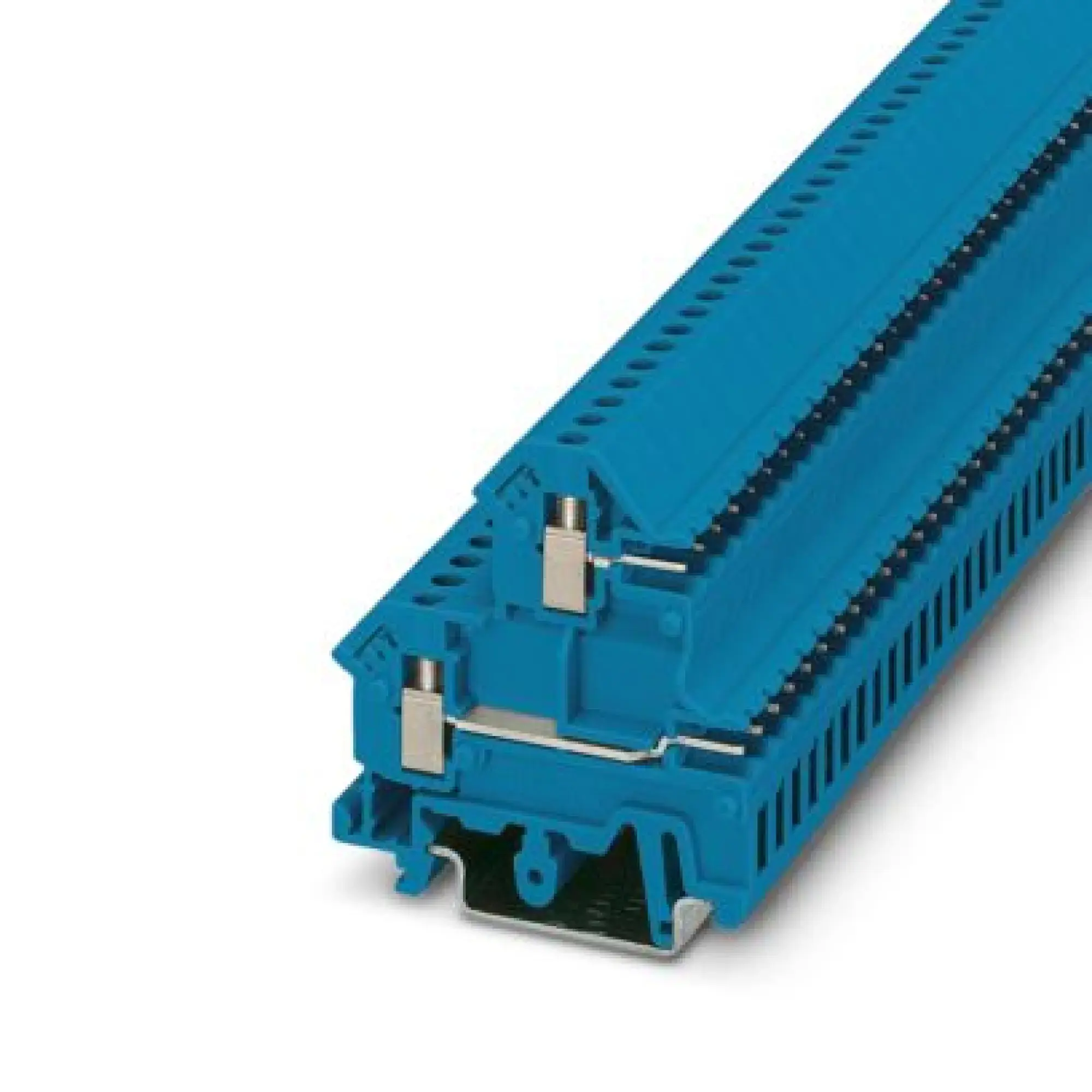

Phoenix Contact 2770286 Double-level terminal block UKK 3-MSTB-5,08 BU

Product information "Phoenix Contact 2770286 Double-level terminal block UKK 3-MSTB-5,08 BU"

Phoenix Contact Double-level terminal block UKK 3-MSTB-5,08 BU

Phoenix Contact 2770286

EAN 4017918197667

Description

Double-level terminal block, Current and voltage are determined by the plug used., nom. voltage: 250 V, nominal current: 10 A, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: blue

Documents & Downloads

Product Attributes

Anschließbarer Leiterquerschnitt feindrähtig ohne Aderendhülse (mm²) 0.2
Anschließbarer Leiterquerschnitt feindrähtig mit Aderendhülse (mm²) 0.25
Anschließbarer Leiterquerschnitt eindrähtig (mm²) 0.2
Anschließbarer Leiterquerschnitt mehrdrähtig (mm²) 0.2
Bemessungsstrom In (A) 10
Bemessungsspannung (kV) 250
Ausführung elektrischer Anschluss 1 sonstige
Ausführung elektrischer Anschluss 2 sonstige
Anzahl der Etagen 2
Geeignet für Leiterwerkstoff Aluminium/Kupfer
Montageart Hutschiene TH35
Werkstoff des Isolierkörpers sonstige
Brennbarkeitsklasse des Isolierstoffs nach UL94 V2
Breite (mm) 5.1
Höhe (mm) 50
Tiefe (mm) 53.5
Abschlussplatte erforderlich 1
Farbe blau

Technical data

P/N (Part Number)2770286
EAN4017918197667
ETIMEC000897
Weight0.00836 kg
Weight (packaged)0.00836 kg
