2708245

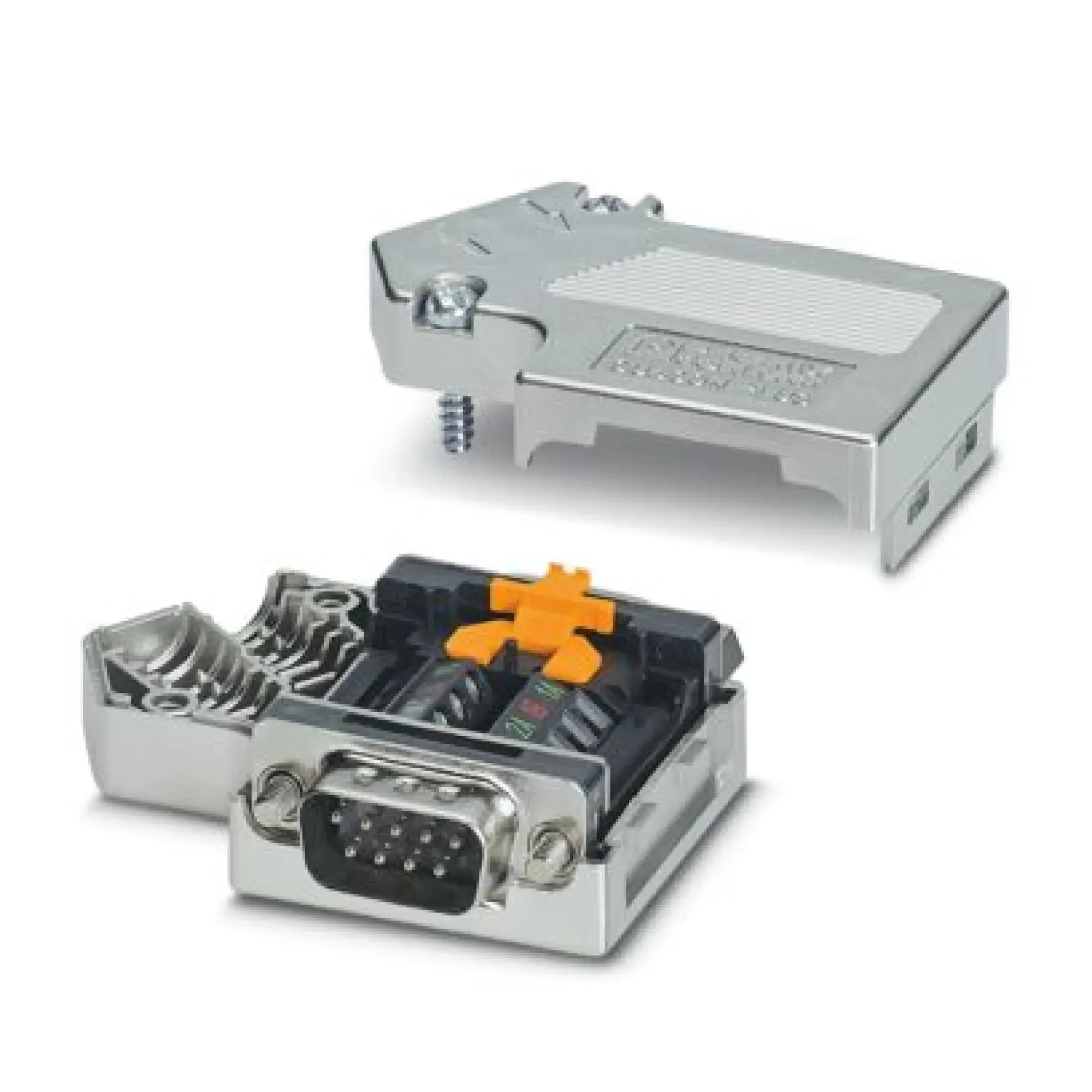

Phoenix Contact 2708245 D-SUB bus connector SUBCON-PLUS-PROFIB/PG/SC2
Product number: WST8810196850
Manufacturer: Phoenix ContactP/N: 2708245
Product information "Phoenix Contact 2708245 D-SUB bus connector SUBCON-PLUS-PROFIB/PG/SC2"
Phoenix Contact D-SUB bus connector SUBCON-PLUS-PROFIB/PG/SC2
Phoenix Contact 2708245
EAN 4017918960490
Description
D-SUB connector, 9-pos., pin, 35° cable outlet, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
Documents & Downloads
Product Attributes
| Polzahl | 9 |
|---|---|
| Kontaktausführung | männlich (male) |
Technical data
| P/N (Part Number) | 2708245 |
|---|---|
| EAN | 4017918960490 |
| ETIM | EC001132 |
| Weight | 0.0563 kg |
| Weight (packaged) | 0.0563 kg |
