2304539
Phoenix Contact 2304539 Termination board FLKM-D25 SUB/B/KDS3-MT/TU810/P
€173.37*
% €227.53* (23.8% saved)Available, delivery time: 1-2 Months
Product number: WST8810195834
Manufacturer: Phoenix ContactP/N: 2304539
Product information "Phoenix Contact 2304539 Termination board FLKM-D25 SUB/B/KDS3-MT/TU810/P"

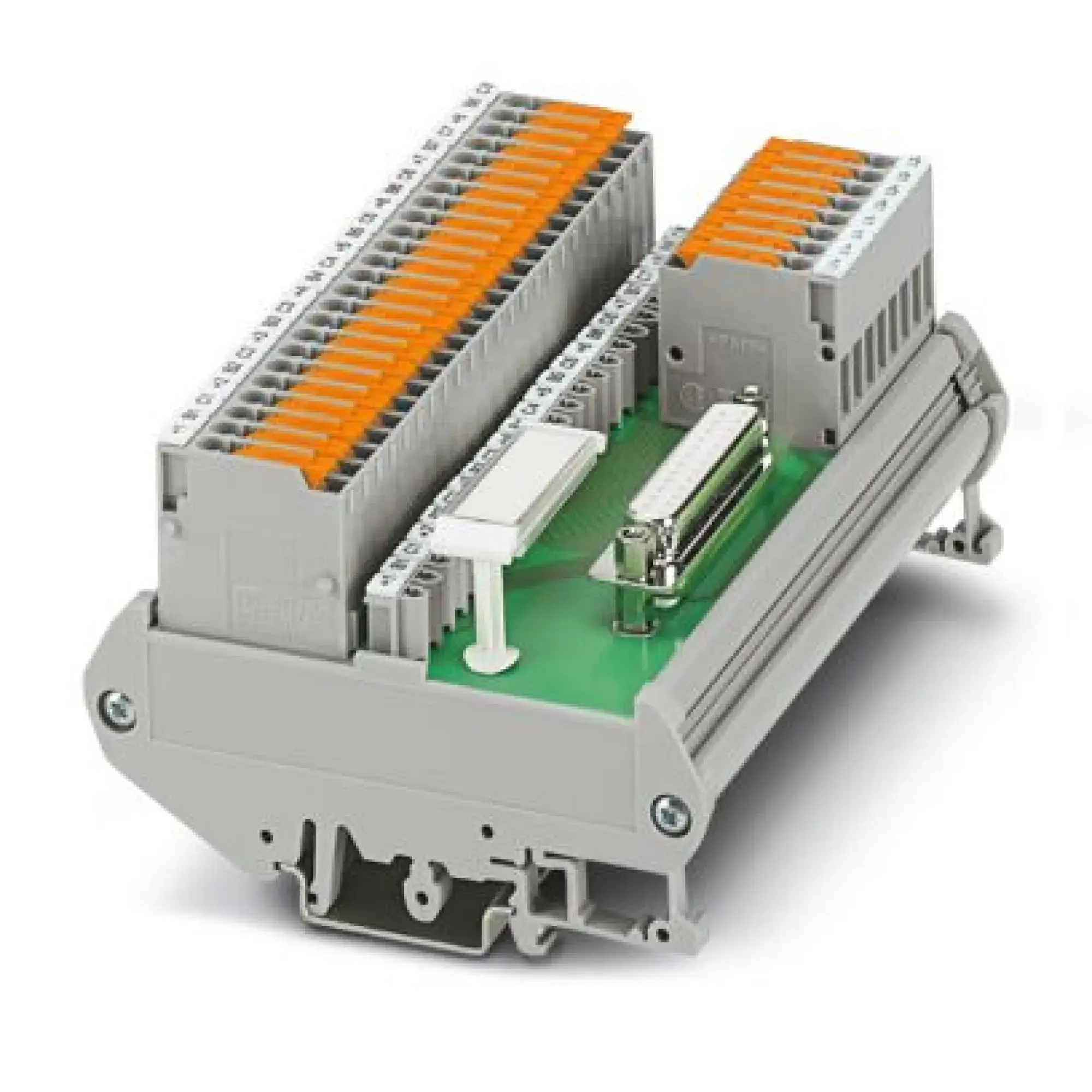

Phoenix Contact Termination board FLKM-D25 SUB/B/KDS3-MT/TU810/P
Phoenix Contact 2304539
EAN 4017918949129
Description
Termination board, connection 1: D-SUB socket strip 1x 25-position, connection 2: Screw connection with disconnect knife 32-position, connection 3: Test socket 24-position, number of channels: 2, control logic: positive switching
Documents & Downloads
Product Attributes
| Ausführung elektrischer Anschluss, feldseitig | Schraubanschluss |
|---|---|
| Ausführung elektrischer Anschluss, steuerseitig | D-Sub |
| Polzahl | 25 |
| Bemessungsspannung (kV) | 30 |
| Bemessungsstrom (A) | 2 |
| Tiefe (mm) | 60.01 |
| Breite (mm) | 126 |
| Höhe (mm) | 89.6 |
| Montageart | Hutschiene TH35 |
Technical data
| P/N (Part Number) | 2304539 |
|---|---|
| EAN | 4017918949129 |
| ETIM | EC002780 |
| Weight | 0.339 kg |
| Weight (packaged) | 0.339 kg |
