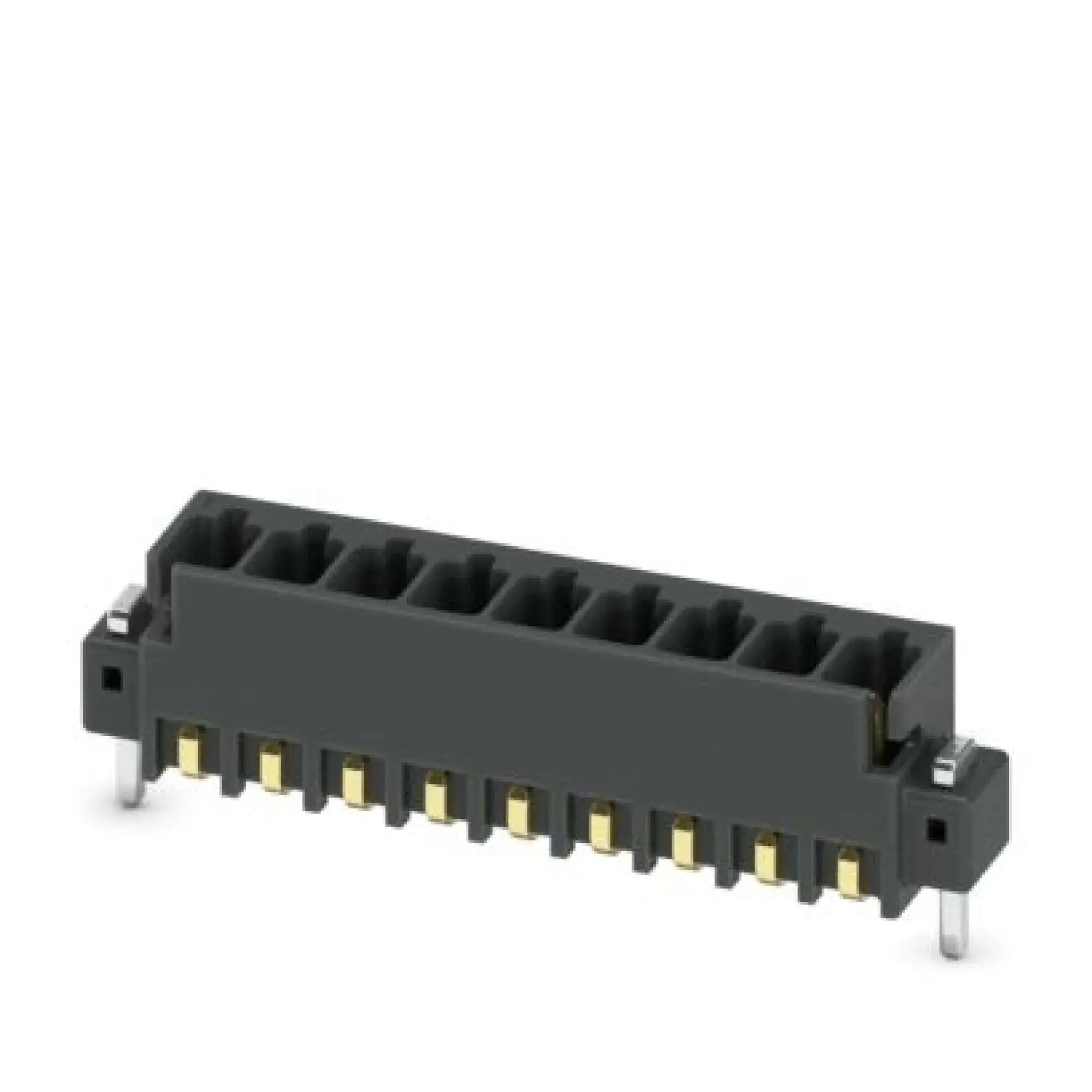

Phoenix Contact 1821614 PCB header MCV 0,5/ 9-G-2,54 SMD R56
€327.42*
% €429.67* (23.8% saved)Available, delivery time: 3-4 Weeks
Product number: WST8810189143
Manufacturer: Phoenix ContactP/N: 1821614
Product information "Phoenix Contact 1821614 PCB header MCV 0,5/ 9-G-2,54 SMD R56"
Phoenix Contact PCB header MCV 0,5/ 9-G-2,54 SMD R56
Phoenix Contact 1821614
EAN 4046356789776
Description
PCB headers, nominal cross section: 0.5 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MCV 0,5/..-G-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin layout: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON FMC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: 56 mm wide tape
Documents & Downloads
Product Attributes
| Steckverbinderausführung | fester Steckverbinder |
|---|---|
| Kontaktausführung | Stift |
| Polzahl | 9 |
| Anzahl der Steckkontaktreihen | 1 |
| Rastermaß der Kontakte (mm) | 2.54 |
| Rastermaß der Anschlüsse (mm) | 2.54 |
| Bemessungsstrom In (A) | 6 |
| Bemessungsspannung (kV) | 160 |
| Bemessungsstoßspannung (kV) | 2.5 |
| Überspannungskategorie | III |
| Verschmutzungsgrad | 2 |
| Werkstoff der Kontaktbeschichtung | Gold |
| Ausführung des elektrischen Anschlusses | sonstige |
| Werkstoff des Isolierkörpers | sonstige |
| Gehäusefarbe | schwarz |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Betriebstemperatur (°C) | -40 |
| Befestigungsart | sonstige |
| Art der Banderolierung | sonstige |
Technical data
| P/N (Part Number) | 1821614 |
|---|---|
| EAN | 4046356789776 |
| ETIM | EC002637 |
| Weight | 9.7777777777778E-6 kg |
| Weight (packaged) | 9.7777777777778E-6 kg |
