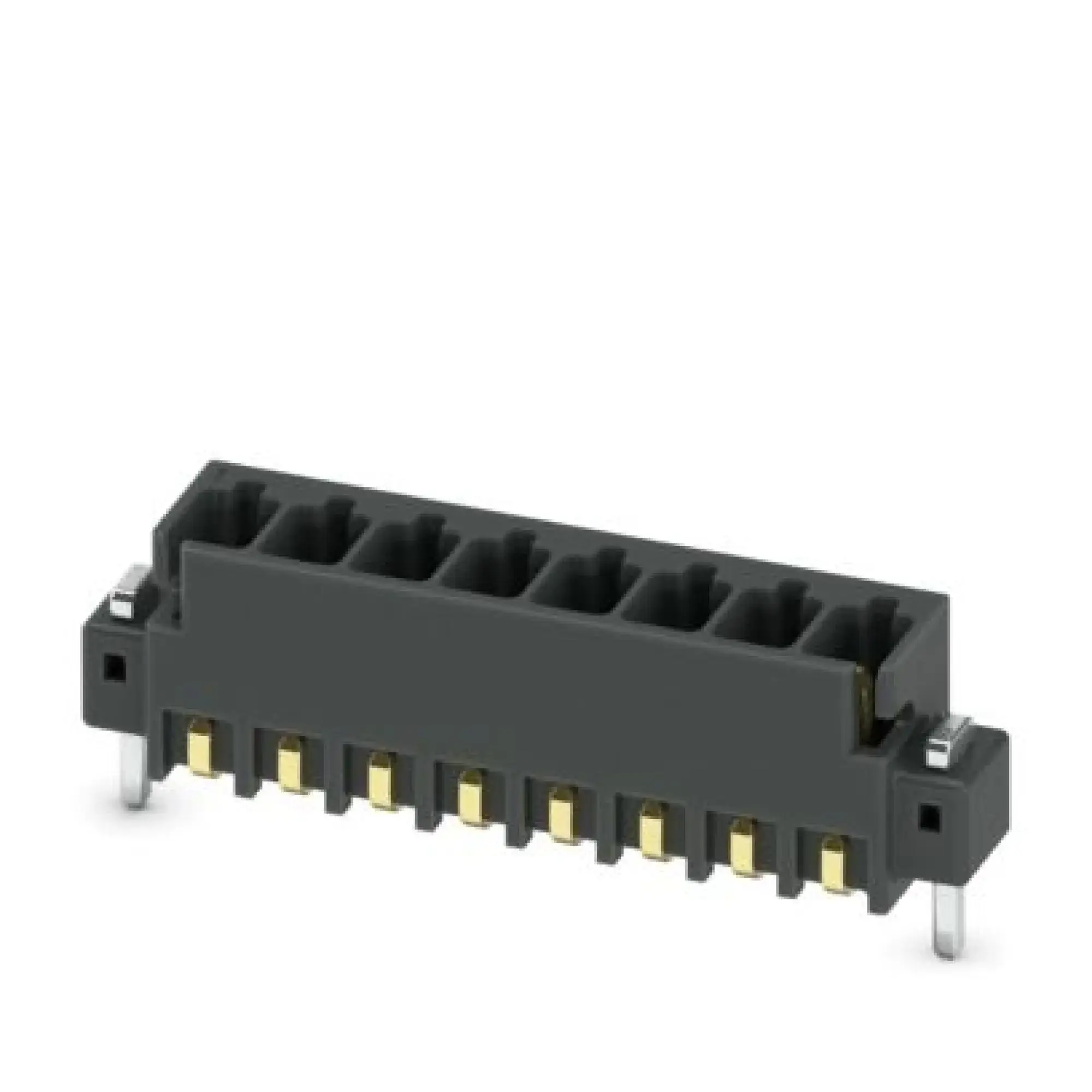

Phoenix Contact 1821601 PCB header MCV 0,5/ 8-G-2,54 SMD R44
€296.81*
% €389.51* (23.8% saved)Available, delivery time: 3-4 Weeks
Product number: WST8810189142
Manufacturer: Phoenix ContactP/N: 1821601
Product information "Phoenix Contact 1821601 PCB header MCV 0,5/ 8-G-2,54 SMD R44"
Phoenix Contact PCB header MCV 0,5/ 8-G-2,54 SMD R44
Phoenix Contact 1821601
EAN 4046356789769
Description
PCB headers, nominal cross section: 0.5 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MCV 0,5/..-G-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin layout: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON FMC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: 44 mm wide tape
Documents & Downloads
Product Attributes
| Steckverbinderausführung | sonstige |
|---|---|
| Kontaktausführung | Stift |
| Polzahl | 8 |
| Anzahl der Steckkontaktreihen | 1 |
| Rastermaß der Kontakte (mm) | 2.54 |
| Rastermaß der Anschlüsse (mm) | 2.54 |
| Bemessungsstrom In (A) | 6 |
| Bemessungsspannung (kV) | 160 |
| Bemessungsstoßspannung (kV) | 2.5 |
| Überspannungskategorie | III |
| Verschmutzungsgrad | 2 |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Ausführung des elektrischen Anschlusses | sonstige |
| Werkstoff des Isolierkörpers | sonstige |
| Gehäusefarbe | schwarz |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Betriebstemperatur (°C) | -40 |
| Befestigungsart | sonstige |
| Art der Banderolierung | sonstige |
Technical data
| P/N (Part Number) | 1821601 |
|---|---|
| EAN | 4046356789769 |
| ETIM | EC002637 |
| Weight | 8.7936507936508E-6 kg |
| Weight (packaged) | 8.7936507936508E-6 kg |
