1607279
Phoenix Contact 1607279 Device connector front mounting RF-12S1N8AA200
€85.89*
% €112.72* (23.8% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810179251
Manufacturer: Phoenix ContactP/N: 1607279
Product information "Phoenix Contact 1607279 Device connector front mounting RF-12S1N8AA200"

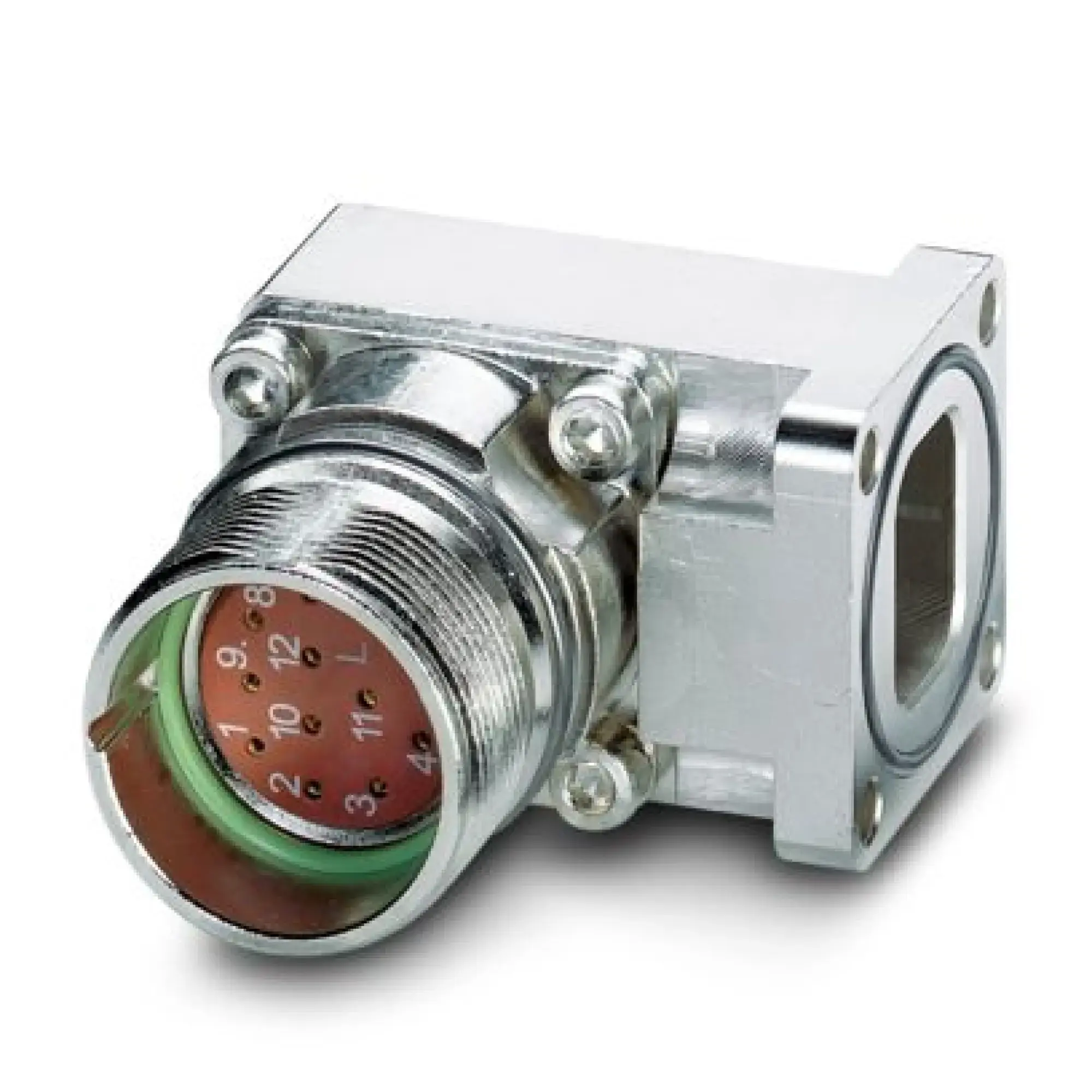

Phoenix Contact Device connector front mounting RF-12S1N8AA200
Phoenix Contact 1607279
EAN 4046356268479
Description
Device connector front mounting, angled fixed, Screw locking mechanism, M23, number of positions: 12, contact connection type: Socket, Axial O-ring, shielded: yes, flange dimensions: 26 mm x 26 mm, number of positions: 12, connection method: Crimp connection, series: RF, this item is expected to be lead-free from Q4 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Montageart | sonstige |
|---|---|
| Mit Schirmanschluss | 1 |
| Polzahl | 12 |
| Anzahl der Steuerkontakte | 12 |
| Werkstoff des Gehäuses | sonstige |
| Schutzart (IP), montiert | IP67 |
| Umgebungstemperatur (°C) | 125 |
| Betriebstemperatur (°C) | -40 |
| Mit Gewinde | 1 |
Technical data
| P/N (Part Number) | 1607279 |
|---|---|
| EAN | 4046356268479 |
| ETIM | EC003569 |
| Weight | 0.01405 kg |
| Weight (packaged) | 0.01405 kg |
