1425629

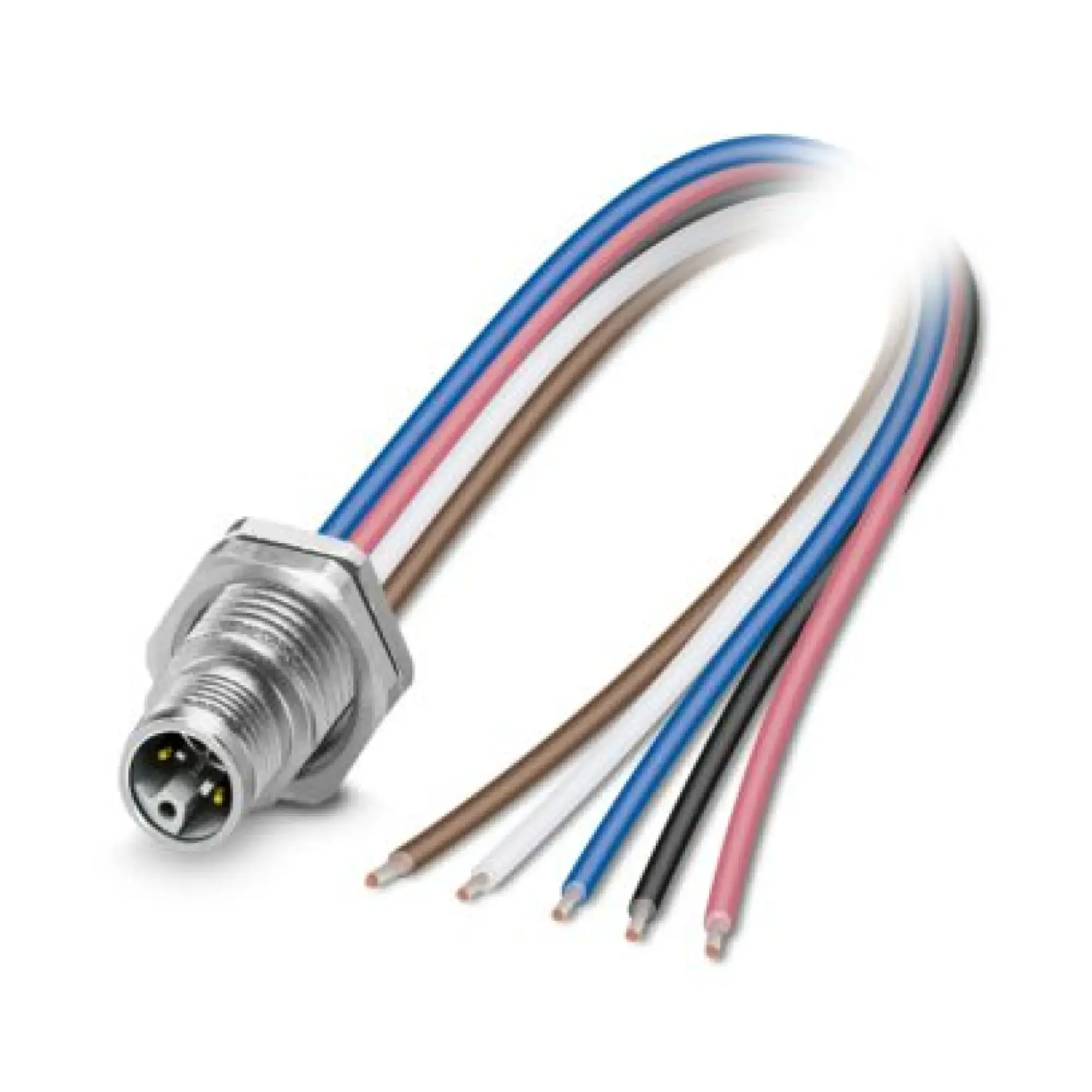

Phoenix Contact 1425629 Device connector rear mounting SACC-DSI-M12MSL4FEM16/0,2GR-1,5
€17.08*
% €24.44* (30.11% saved)Available, delivery time: 6-8 Weeks
Product number: WST8810174465
Manufacturer: Phoenix ContactP/N: 1425629
Product information "Phoenix Contact 1425629 Device connector rear mounting SACC-DSI-M12MSL4FEM16/0,2GR-1,5"
Phoenix Contact Device connector rear mounting SACC-DSI-M12MSL4FEM16/0,2GR-1,5
Phoenix Contact 1425629
EAN 4055626425788
Description
Device connector rear mounting, Power, 5-position, Pin, straight, M12-Standard, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire, potted, this item is expected to be lead-free from Q1 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Kabellänge (m) | 0.2 |
|---|---|
| Art des Steckkontaktes, außenseitig | Male (Stecker) |
| Art des Steckkontaktes, innenseitig | ohne |
| Montageart | Hinterwandmontage |
| Anzahl der Leistungskontakte | 4 |
| Werkstoff des Gehäuses | sonstige |
| Werkstoff der Aderisolation | sonstige |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Umgebungstemperatur (°C) | 85 |
| Betriebstemperatur (°C) | -25 |
| Bemessungsstrom In (A) | 12 |
| Einschraubgewinde | M16 |
| Aderquerschnitt (mm²) | 1.31 |
| Min. Anzahl der Steckzyklen | 100 |
| Schutzart (IP), montiert | sonstige |
Technical data
| P/N (Part Number) | 1425629 |
|---|---|
| EAN | 4055626425788 |
| ETIM | EC003570 |
| Weight | 0.0356 kg |
| Weight (packaged) | 0.0356 kg |
