1424071

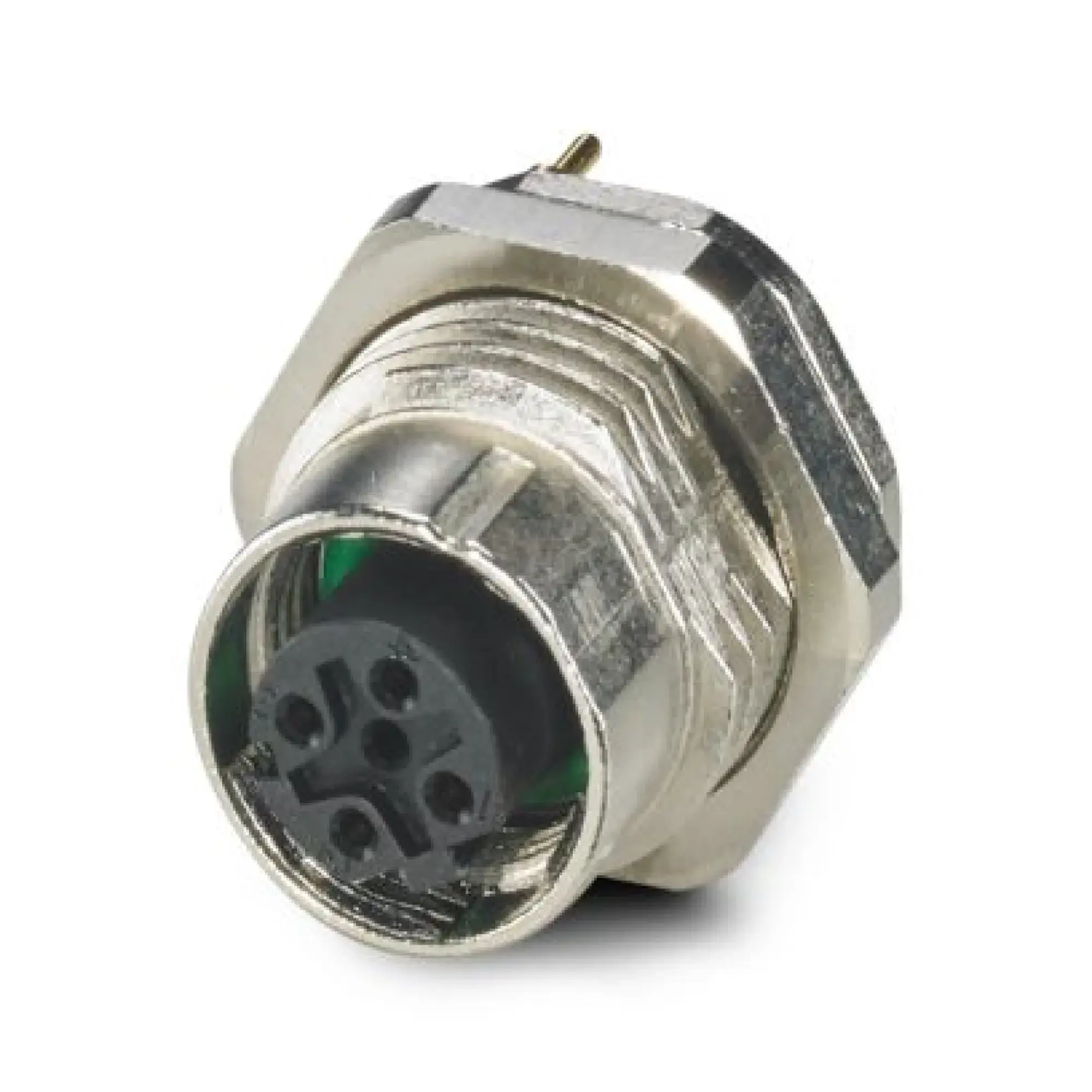

Phoenix Contact 1424071 Device connector rear mounting SACC-DSI-M12FSD-4CON-L180 VA
€27.48*
% €39.33* (30.13% saved)Available, delivery time: 3-5 Bussines days
Product number: WST8810173935
Manufacturer: Phoenix ContactP/N: 1424071
Product information "Phoenix Contact 1424071 Device connector rear mounting SACC-DSI-M12FSD-4CON-L180 VA"
Phoenix Contact Device connector rear mounting SACC-DSI-M12FSD-4CON-L180 VA
Phoenix Contact 1424071
EAN 4046356675413
Description
Device connector rear mounting, Ethernet, 4-position, Socket, straight, M12, coding: D, Rear mounting, Pg9, Solder pins, this item is expected to be lead-free from Q1 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Art des Steckkontaktes, außenseitig | Female (Buchse) |
|---|---|
| Montageart | Hinterwandmontage |
| Einschraubgewinde | PG9 |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Verschmutzungsgrad | 3 |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Min. Anzahl der Steckzyklen | 100 |
| Umgebungstemperatur (°C) | 85 |
| Betriebstemperatur (°C) | -25 |
Technical data
| P/N (Part Number) | 1424071 |
|---|---|
| EAN | 4046356675413 |
| ETIM | EC003568 |
| Weight | 0.000773 kg |
| Weight (packaged) | 0.000773 kg |
