1419645
Phoenix Contact 1419645 Device connector rear mounting SACC-DSI-M12MS-5CON-M16/0,5
€13.47*
% €19.29* (30.17% saved)Available, delivery time: 3-5 Bussines days
Product number: WST8810173606
Manufacturer: Phoenix ContactP/N: 1419645
Product information "Phoenix Contact 1419645 Device connector rear mounting SACC-DSI-M12MS-5CON-M16/0,5"

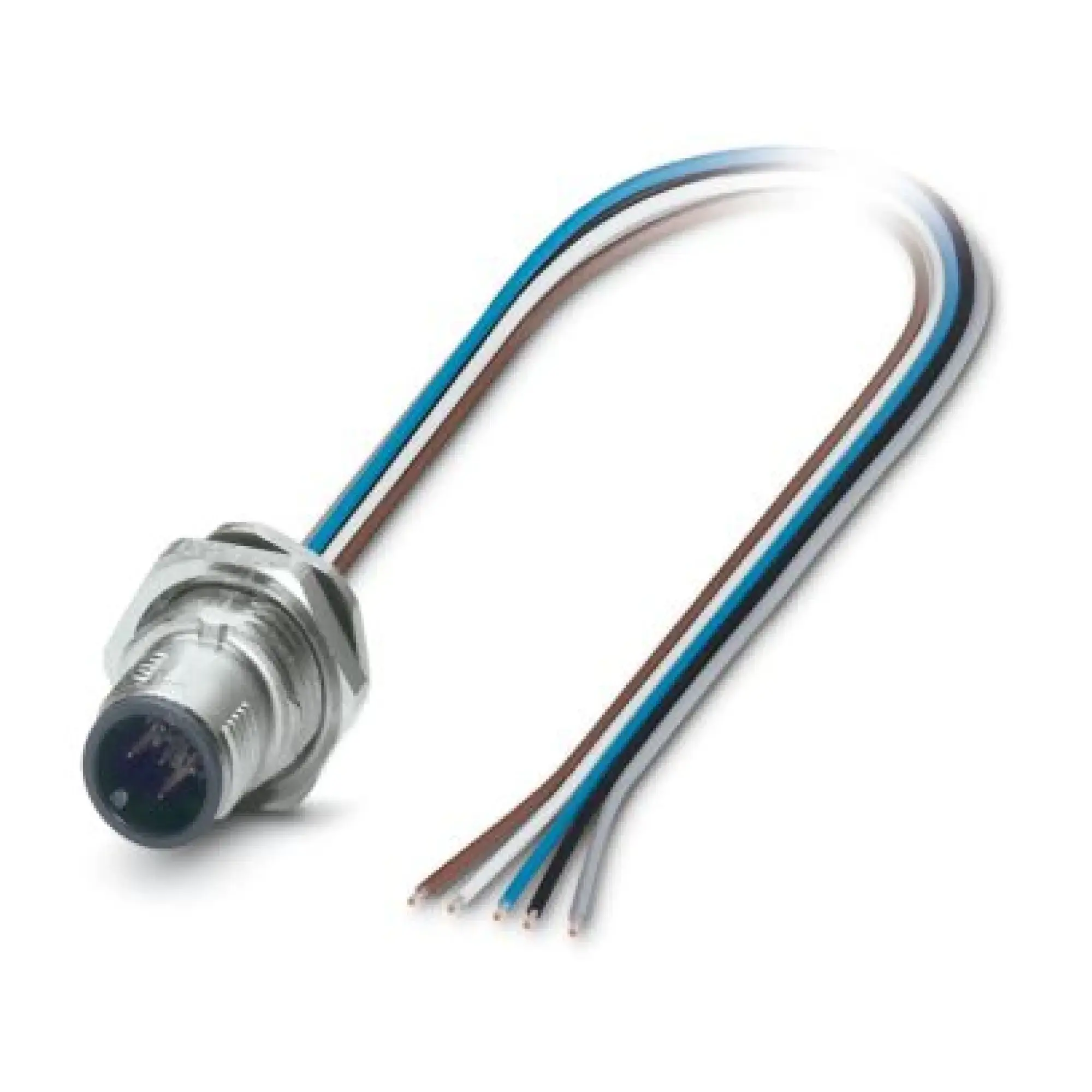

Phoenix Contact Device connector rear mounting SACC-DSI-M12MS-5CON-M16/0,5
Phoenix Contact 1419645
EAN 4046356533492
Description
Device connector rear mounting, Universal, 5-position, Pin, straight, M12-Standard, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire, potted, this item is expected to be lead-free from Q1 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Kabellänge (m) | 0.5 |
|---|---|
| Art des Steckkontaktes, außenseitig | Male (Stecker) |
| Art des Steckkontaktes, innenseitig | ohne |
| Montageart | Hinterwandmontage |
| Anzahl der Steuerkontakte | 5 |
| Werkstoff des Gehäuses | sonstige |
| Werkstoff der Aderisolation | sonstige |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Umgebungstemperatur (°C) | 85 |
| Betriebstemperatur (°C) | -25 |
| Bemessungsspannung (kV) | 60 |
| Bemessungsstrom In (A) | 4 |
| Einschraubgewinde | M16 |
| Aderquerschnitt (mm²) | 0.34 |
| Min. Anzahl der Steckzyklen | 100 |
| Schutzart (IP), montiert | sonstige |
Technical data
| P/N (Part Number) | 1419645 |
|---|---|
| EAN | 4046356533492 |
| ETIM | EC003570 |
| Weight | 0.0353 kg |
| Weight (packaged) | 0.0353 kg |
