1419438
Phoenix Contact 1419438 Device connector rear mounting SACCBP-MS-8CON-M16/2,0-PUR SCO
€49.79*
% €71.28* (30.15% saved)Available, delivery time: 3-5 Bussines days
Product number: WST8810173587
Manufacturer: Phoenix ContactP/N: 1419438
Product information "Phoenix Contact 1419438 Device connector rear mounting SACCBP-MS-8CON-M16/2,0-PUR SCO"

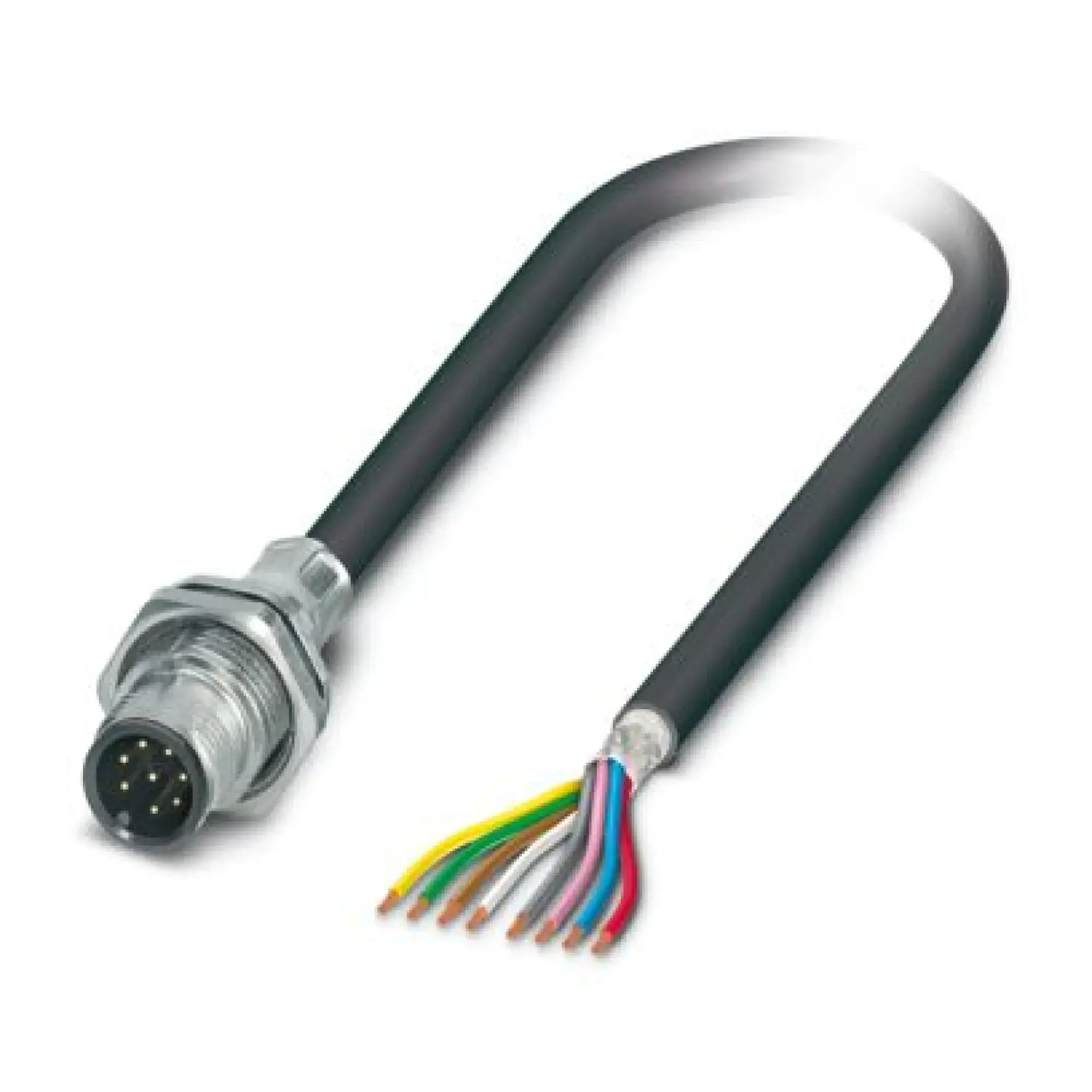

Phoenix Contact Device connector rear mounting SACCBP-MS-8CON-M16/2,0-PUR SCO
Phoenix Contact 1419438
EAN 4046356533348
Description
Device connector rear mounting, Universal, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm², PUR halogen-free black, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Kabellänge (m) | 2 |
|---|---|
| Art des Steckkontaktes, außenseitig | Male (Stecker) |
| Art des Steckkontaktes, innenseitig | ohne |
| Montageart | Hinterwandmontage |
| Anzahl der Steuerkontakte | 8 |
| Werkstoff des Gehäuses | sonstige |
| Werkstoff der Aderisolation | sonstige |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Umgebungstemperatur (°C) | 85 |
| Betriebstemperatur (°C) | -25 |
| Bemessungsspannung (kV) | 30 |
| Bemessungsstrom In (A) | 2 |
| Mit Schirmanschluss | 1 |
| Einschraubgewinde | M16 |
| Aderquerschnitt (mm²) | 0.25 |
| Min. Anzahl der Steckzyklen | 100 |
| Schutzart (IP), montiert | sonstige |
Technical data
| P/N (Part Number) | 1419438 |
|---|---|
| EAN | 4046356533348 |
| ETIM | EC003570 |
| Weight | 0.13132 kg |
| Weight (packaged) | 0.13132 kg |
