1411965
Phoenix Contact 1411965 Contact carrier SACC-CI-M12FSY-8P SMD SH T
€14.27*
% €20.42* (30.12% saved)Available, delivery time: 2-3 Months
Product number: WST8810172011
Manufacturer: Phoenix ContactP/N: 1411965
Product information "Phoenix Contact 1411965 Contact carrier SACC-CI-M12FSY-8P SMD SH T"

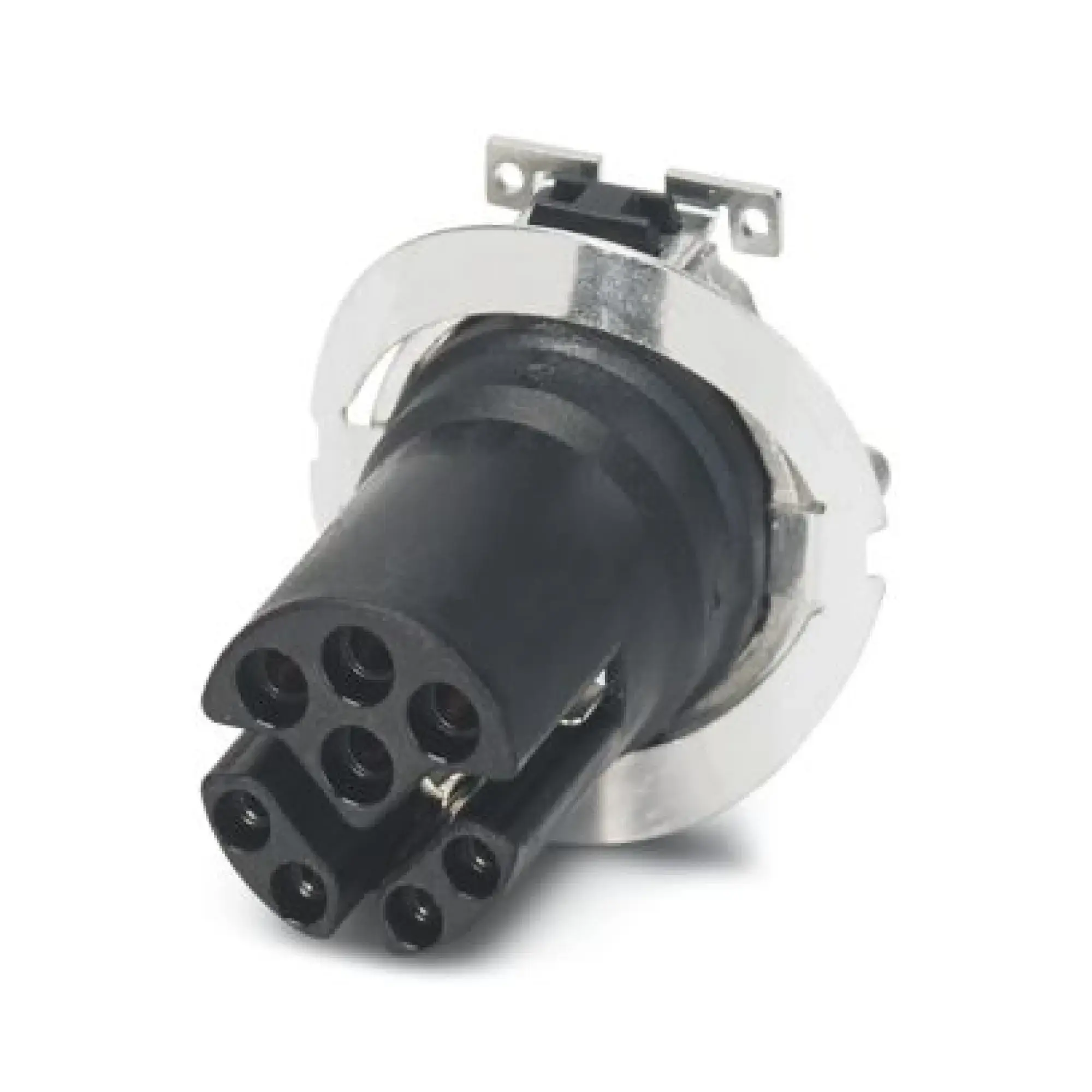

Phoenix Contact Contact carrier SACC-CI-M12FSY-8P SMD SH T
Phoenix Contact 1411965
EAN 4046356991629
Description
Contact carrier, Universal CAT5 (IEC 11801:2002), 8-position, Socket, straight, M12, coding: Y, PCB mounting, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Art des Steckkontaktes, außenseitig | Female (Buchse) |
|---|---|
| Montageart | frei positionierbar |
| Mit Schirmanschluss | 1 |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Verschmutzungsgrad | 3 |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Min. Anzahl der Steckzyklen | 100 |
| Umgebungstemperatur (°C) | 105 |
| Betriebstemperatur (°C) | -25 |
Technical data
| P/N (Part Number) | 1411965 |
|---|---|
| EAN | 4046356991629 |
| ETIM | EC003568 |
| Weight | 7.6666666666667E-5 kg |
| Weight (packaged) | 7.6666666666667E-5 kg |
