1411938

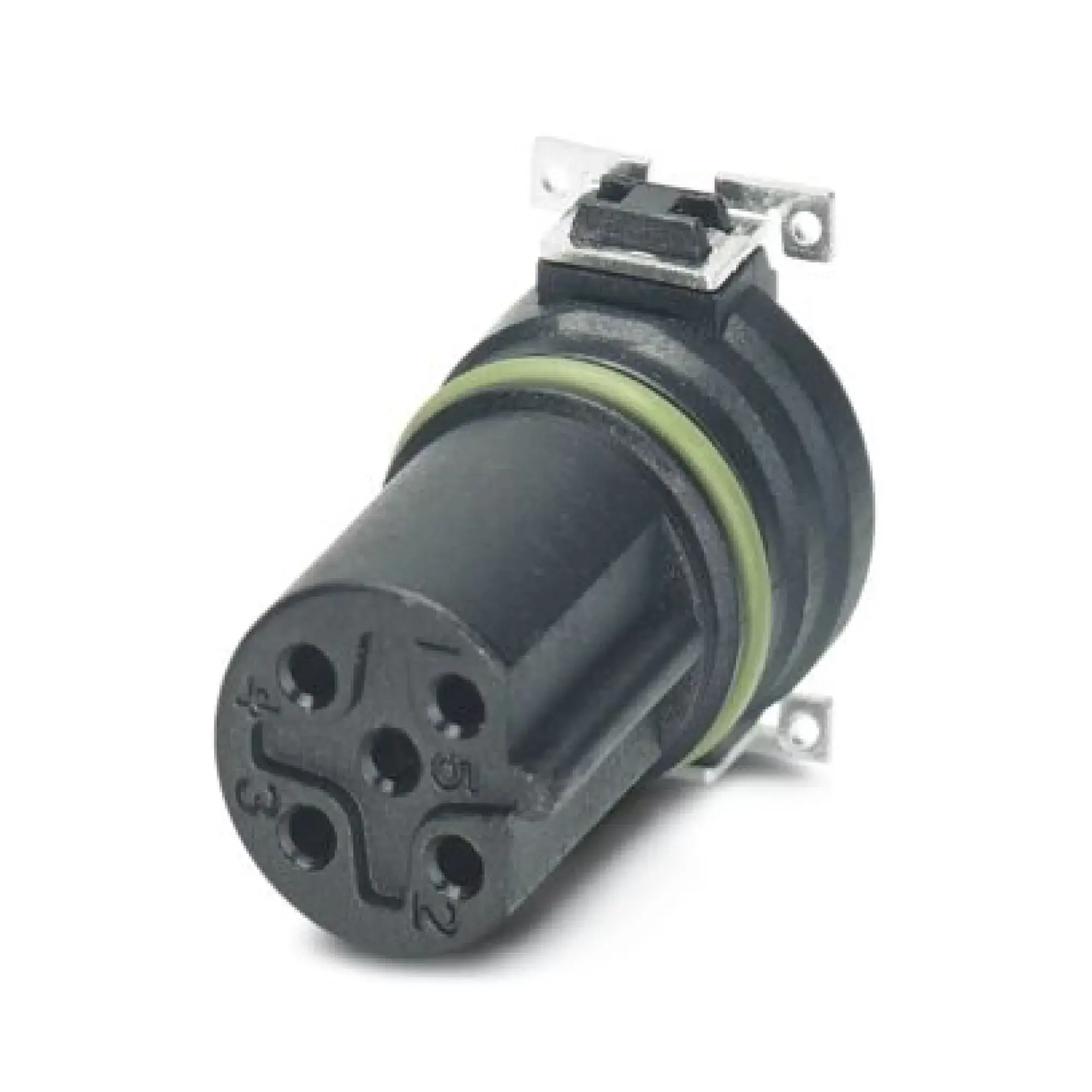

Phoenix Contact 1411938 Contact carrier SACC-CIP-M12FSB-5P SMD T
€3.81*
% €5.45* (30.09% saved)Available, delivery time: 1-2 Months
Product number: WST8810171984
Manufacturer: Phoenix ContactP/N: 1411938
Product information "Phoenix Contact 1411938 Contact carrier SACC-CIP-M12FSB-5P SMD T"
Phoenix Contact Contact carrier SACC-CIP-M12FSB-5P SMD T
Phoenix Contact 1411938
EAN 4046356990684
Description
Contact carrier, 5-position, Socket, straight, M12, coding: B, PCB mounting, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Art des Steckkontaktes, außenseitig | Female (Buchse) |
|---|---|
| Montageart | frei positionierbar |
| Werkstoff der Kontaktbeschichtung | sonstige |
| Verschmutzungsgrad | 3 |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Min. Anzahl der Steckzyklen | 100 |
| Umgebungstemperatur (°C) | 105 |
| Betriebstemperatur (°C) | -25 |
Technical data
| P/N (Part Number) | 1411938 |
|---|---|
| EAN | 4046356990684 |
| ETIM | EC003568 |
| Weight | 5.7333333333333E-5 kg |
| Weight (packaged) | 5.7333333333333E-5 kg |
