Phoenix Contact 1396540 Vehicle charging inlet CHARX T2HBI24-DC250-6,0M6
Product number: WST8810169918
Manufacturer: Phoenix ContactP/N: 1396540
Product information "Phoenix Contact 1396540 Vehicle charging inlet CHARX T2HBI24-DC250-6,0M6"

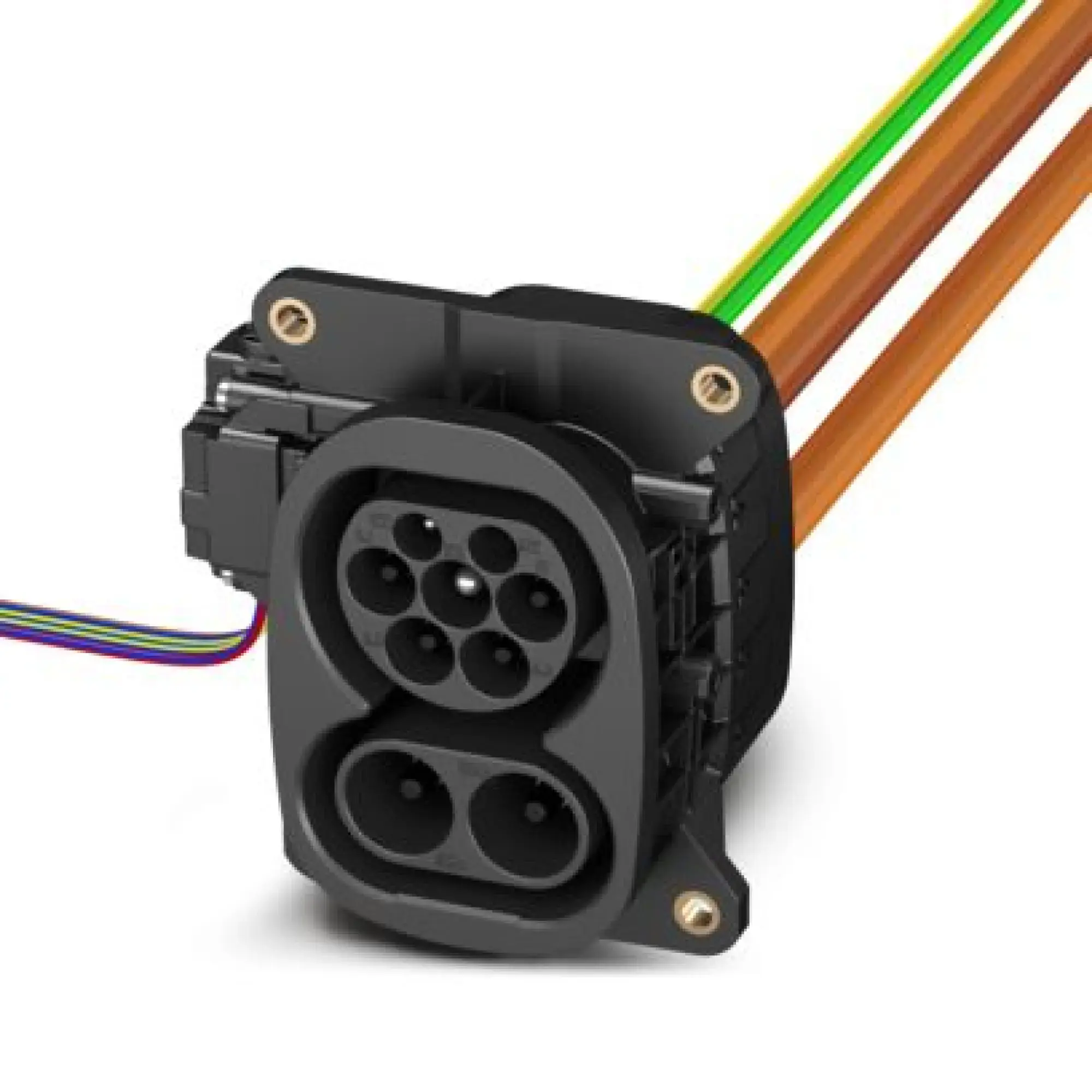

Phoenix Contact Vehicle charging inlet CHARX T2HBI24-DC250-6,0M6
Phoenix Contact 1396540
EAN 4063151780623
Description
CHARX connect universal, DC CCS Typ 2, Vehicle charging inlet, up to 500 A in Boost mode, 250 A permanent, 1000 V DC, Single wires, length: 6 m, locking actuator: 24 V, 4-pos., Front and rear mounting, M6, housing: black, for charging with direct current (DC), IEC 62196-2, IEC 62196-3, A protective cap is supplied as standard for the DC contacts.
Documents & Downloads
Product Attributes
| Mit Verriegelungsaktuator | 1 |
|---|---|
| Mit Zugangsverriegelung | 1 |
| Schutzart (IP) | sonstige |
| Breite (mm) | 108 |
| Höhe (mm) | 140.25 |
| Tiefe (mm) | 133.5 |
| Nennspannung (V) | 1000 |
| Max. Nennstrom (A) | 250 |
| Stromart | DC |
| Anzahl der Kommunikationskontakte | 2 |
| Länge der festangeschlossenen Leitung (m) | 6 |
Technical data
| P/N (Part Number) | 1396540 |
|---|---|
| EAN | 4063151780623 |
| ETIM | EC002898 |
| Weight | 0.107 kg |
| Weight (packaged) | 0.107 kg |
