1342193

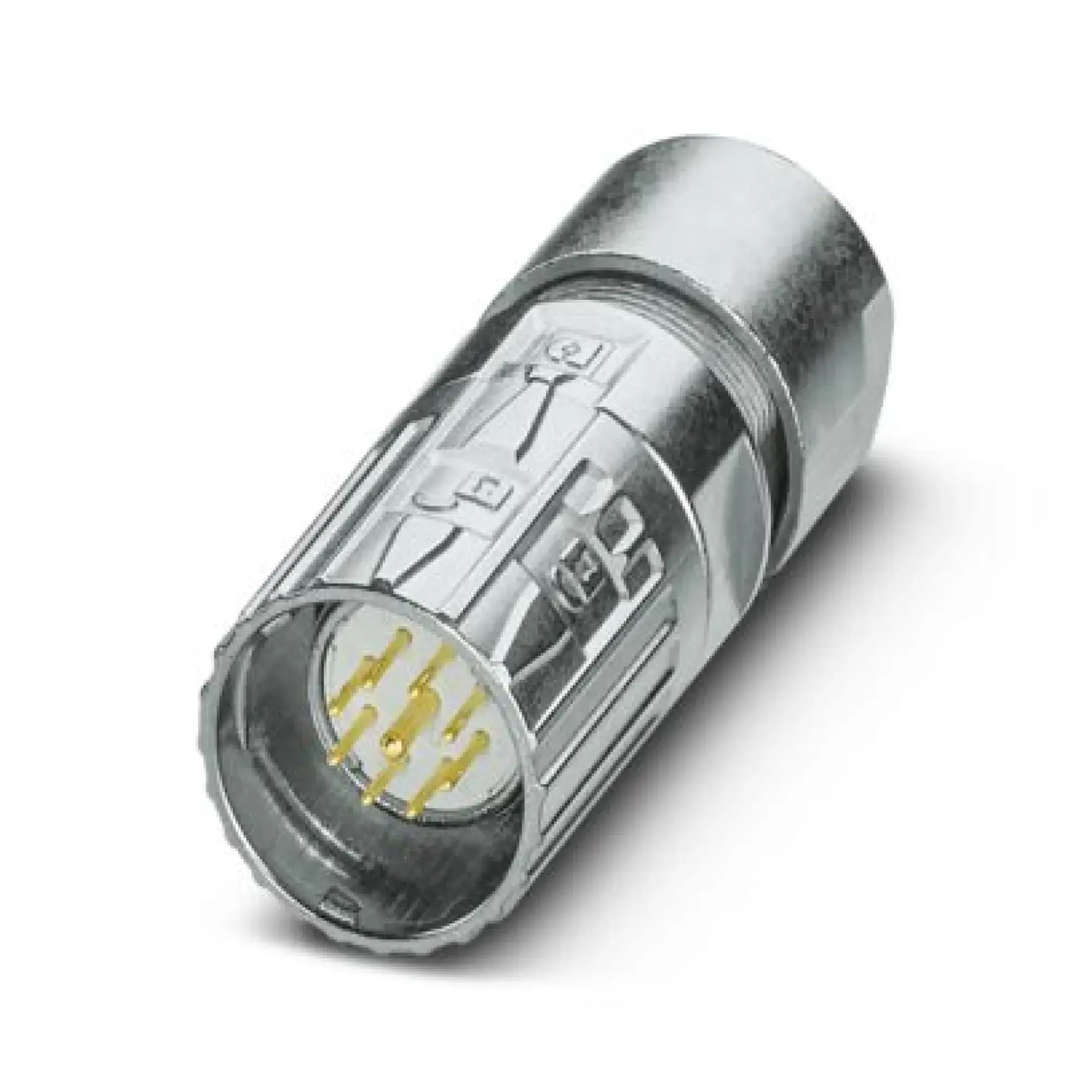

Phoenix Contact 1342193 Cable connector M23-09P1N128004S
€19.64*
% €25.76* (23.76% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810168825
Manufacturer: Phoenix ContactP/N: 1342193
Product information "Phoenix Contact 1342193 Cable connector M23-09P1N128004S"
Phoenix Contact Cable connector M23-09P1N128004S
Phoenix Contact 1342193
EAN 4063151651459
Description
M23, Cable connector, series: M23 PRO, straight, shielded: yes, ONECLICK fast locking system, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Solder connection, cable diameter range: 9 mm ... 15 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Documents & Downloads
Product Attributes
| Kontaktausführung | sonstige |
|---|---|
| Anzahl der Leistungskontakte | 1 |
| Anzahl der Steuerkontakte | 8 |
| Für Kabelaußendurchmesser (mm) | 9 |
| Ausführung des Gehäuses | gerade |
| Umgebungstemperatur (°C) | -40 |
| Art der Verriegelung | sonstige |
| Min. Anzahl der Steckzyklen | 100 |
Technical data
| P/N (Part Number) | 1342193 |
|---|---|
| EAN | 4063151651459 |
| ETIM | EC002635 |
| Weight | 0.116 kg |
| Weight (packaged) | 0.116 kg |
