1341222

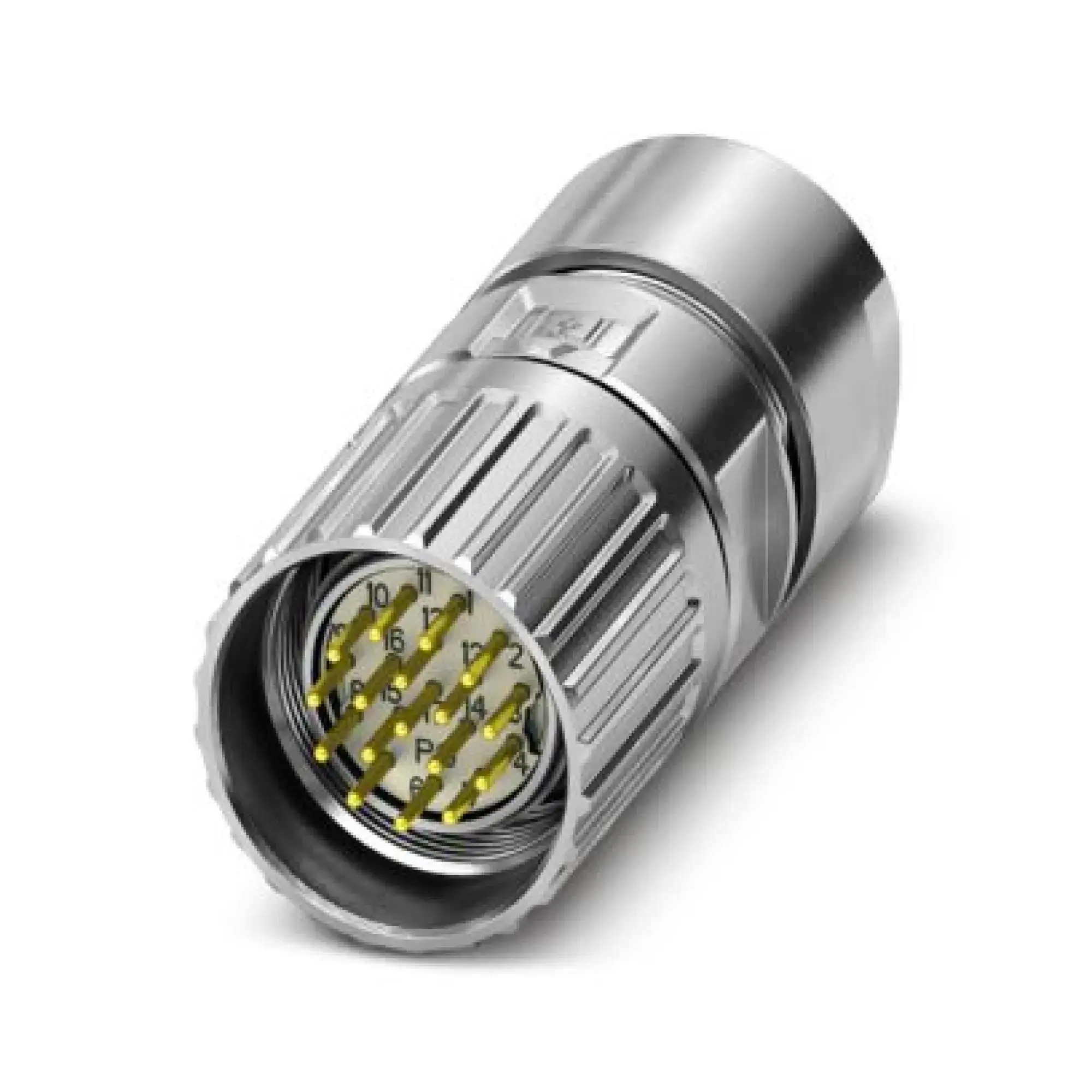

Phoenix Contact 1341222 Cable connector M23-17P1N128003
€20.63
% €27.08 (23.82% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810168730
Manufacturer: Phoenix ContactP/N: 1341222
Product information "Phoenix Contact 1341222 Cable connector M23-17P1N128003"
Phoenix Contact Cable connector M23-17P1N128003
Phoenix Contact 1341222
EAN 4063151649722
Description
M23, Cable connector, series: M23 PRO, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder connection, cable diameter range: 6 mm ... 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Documents & Downloads
Product Attributes
| Kontaktausführung | sonstige |
|---|---|
| Anzahl der Steuerkontakte | 17 |
| Für Kabelaußendurchmesser (mm) | 6 |
| Ausführung des Gehäuses | gerade |
| Umgebungstemperatur (°C) | -40 |
| Art der Verriegelung | sonstige |
| Min. Anzahl der Steckzyklen | 100 |
Technical data
| P/N (Part Number) | 1341222 |
|---|---|
| EAN | 4063151649722 |
| ETIM | EC002635 |
| Weight | 0.122 kg |
| Weight (packaged) | 0.122 kg |
