1339690

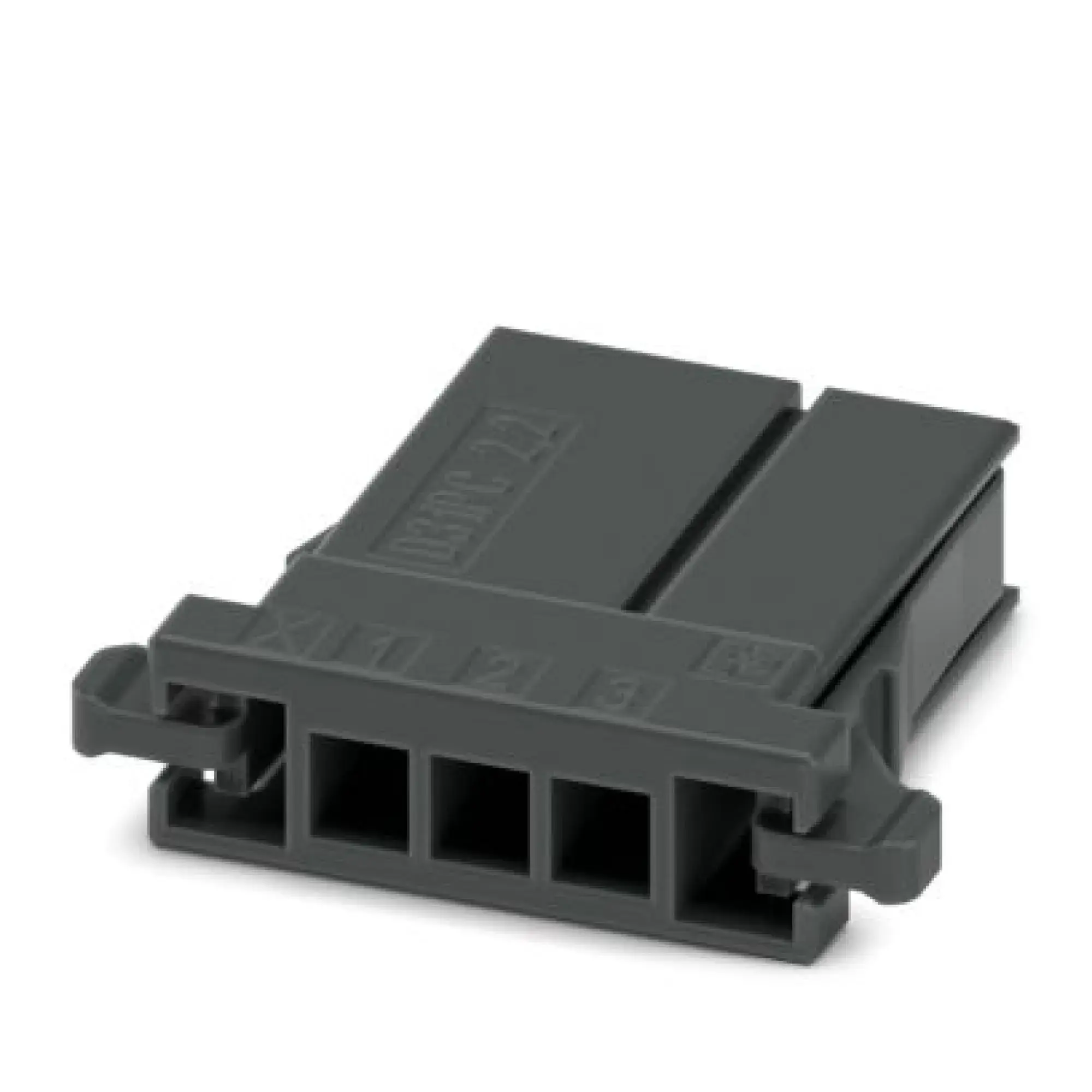

Phoenix Contact 1339690 PCB connector D31PC 2,2/ 3-3,81-X
€0.30
% €0.39 (23.08% saved)
Available, delivery time: 1-2 Months
Product number: WST8810168526
Manufacturer: Phoenix ContactP/N: 1339690
Product information "Phoenix Contact 1339690 PCB connector D31PC 2,2/ 3-3,81-X"
Phoenix Contact PCB connector D31PC 2,2/ 3-3,81-X
Phoenix Contact 1339690
EAN 4063151645342
Description
PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 3, product range: D31PC 2,2/.., pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS D, locking: Snap-in locking, mounting method: Latching flange, type of packaging: packed in cardboard
Documents & Downloads
Product Attributes
| Verbindungsart | sonstige |
|---|---|
| Kontaktausführung | Buchse |
| Polzahl | 3 |
| Anzahl der Steckkontaktreihen | 1 |
| Rastermaß der Kontakte (mm) | 3.81 |
| Rastermaß der Anschlüsse (mm) | 3.81 |
| Winkel Kontakt/Leiteranschluss | sonstige |
| Bemessungsstrom In (A) | 8 |
| Bemessungsspannung (kV) | 160 |
| Bemessungsstoßspannung (kV) | 2.5 |
| Überspannungskategorie | III |
| Verschmutzungsgrad | 2 |
| Ausführung des elektrischen Anschlusses | Crimpanschluss |
| Anschließbare Kabeltype | Rundkabel |
| Werkstoff der Kontaktbeschichtung | Zinn |
| Werkstoff des Isolierkörpers | sonstige |
| Werkstoff des Gehäuses | sonstige |
| Gehäusefarbe | schwarz |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Betriebstemperatur (°C) | -55 |
Technical data
| P/N (Part Number) | 1339690 |
|---|---|
| EAN | 4063151645342 |
| ETIM | EC002638 |
| Weight | 2.64E-5 kg |
| Weight (packaged) | 2.64E-5 kg |
