1192658
Phoenix Contact 1192658 PCB hybrid header PCH 6/ 3+4-G-7,62 P26THR
€464.17*
% €609.15* (23.8% saved)Available, delivery time: 6-8 Weeks
Product number: WST8810164263
Manufacturer: Phoenix ContactP/N: 1192658
Product information "Phoenix Contact 1192658 PCB hybrid header PCH 6/ 3+4-G-7,62 P26THR"

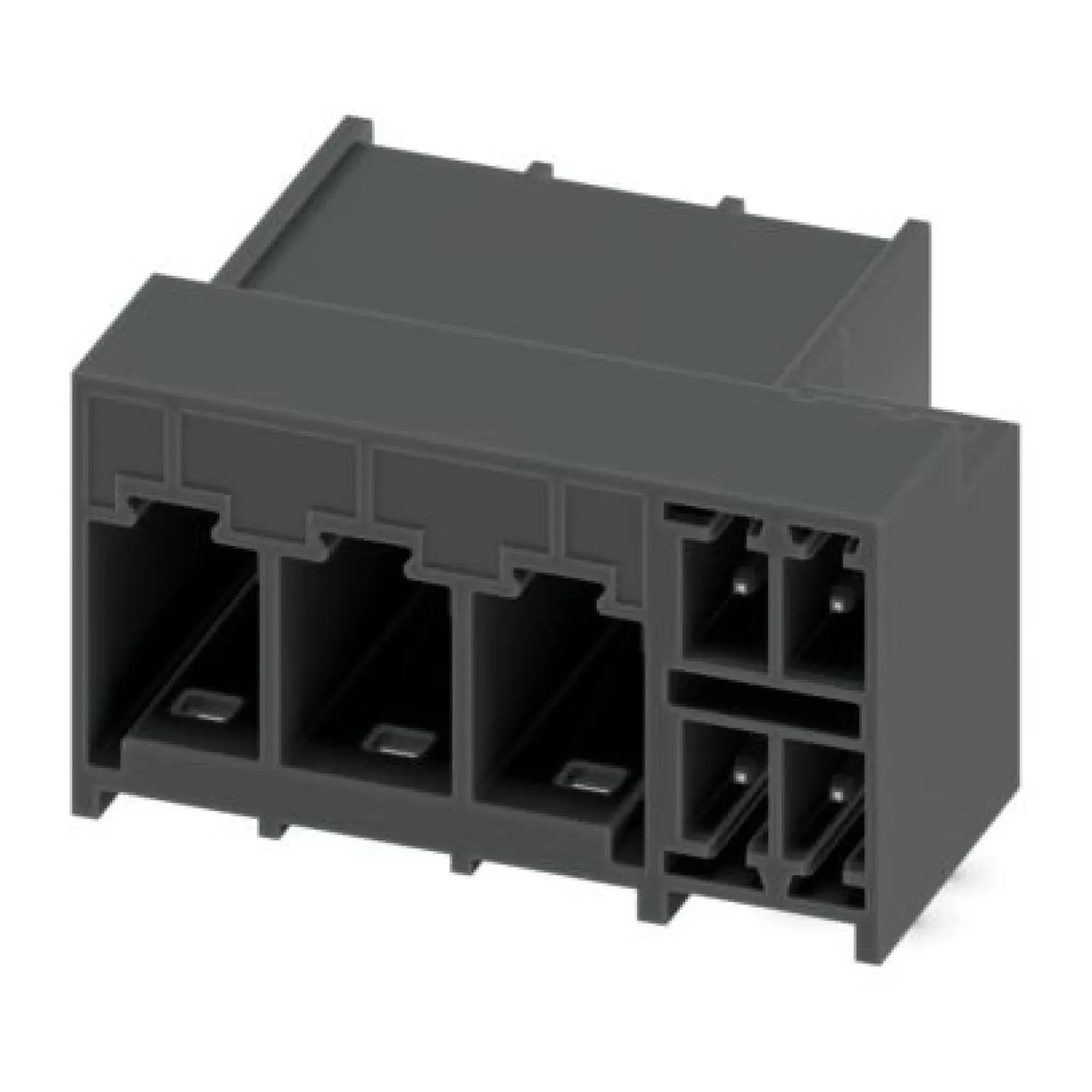

Phoenix Contact PCB hybrid header PCH 6/ 3+4-G-7,62 P26THR
Phoenix Contact 1192658
EAN 4063151245368
Description
PCB hybrid header, nominal cross section: 6 mm², color: black, nominal current: 41 A, 8 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 7, product range: PCH 6/..+4-G-THR, pitch: 7.62 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6 hybrid, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting method: without, type of packaging: packed in cardboard
Documents & Downloads
Product Attributes
| Kontaktausführung | Stift |
|---|---|
| Polzahl | 3 |
| Rastermaß der Kontakte (mm) | 7.62 |
| Rastermaß der Anschlüsse (mm) | 7.62 |
| Bemessungsstrom In (A) | 41 |
| Bemessungsspannung (kV) | 630 |
| Werkstoff der Kontaktbeschichtung | Zinn |
| Durchmesser Anschlusspin (mm) | 1.75 |
| Länge des Pins (mm) | 2.6 |
| Werkstoff des Isolierkörpers | sonstige |
| Gehäusefarbe | schwarz |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Betriebstemperatur (°C) | -40 |
| Art der Banderolierung | Karton (für SMD) |
Technical data
| P/N (Part Number) | 1192658 |
|---|---|
| EAN | 4063151245368 |
| ETIM | EC002637 |
| Weight | 0.0002132 kg |
| Weight (packaged) | 0.0002132 kg |
