1105531

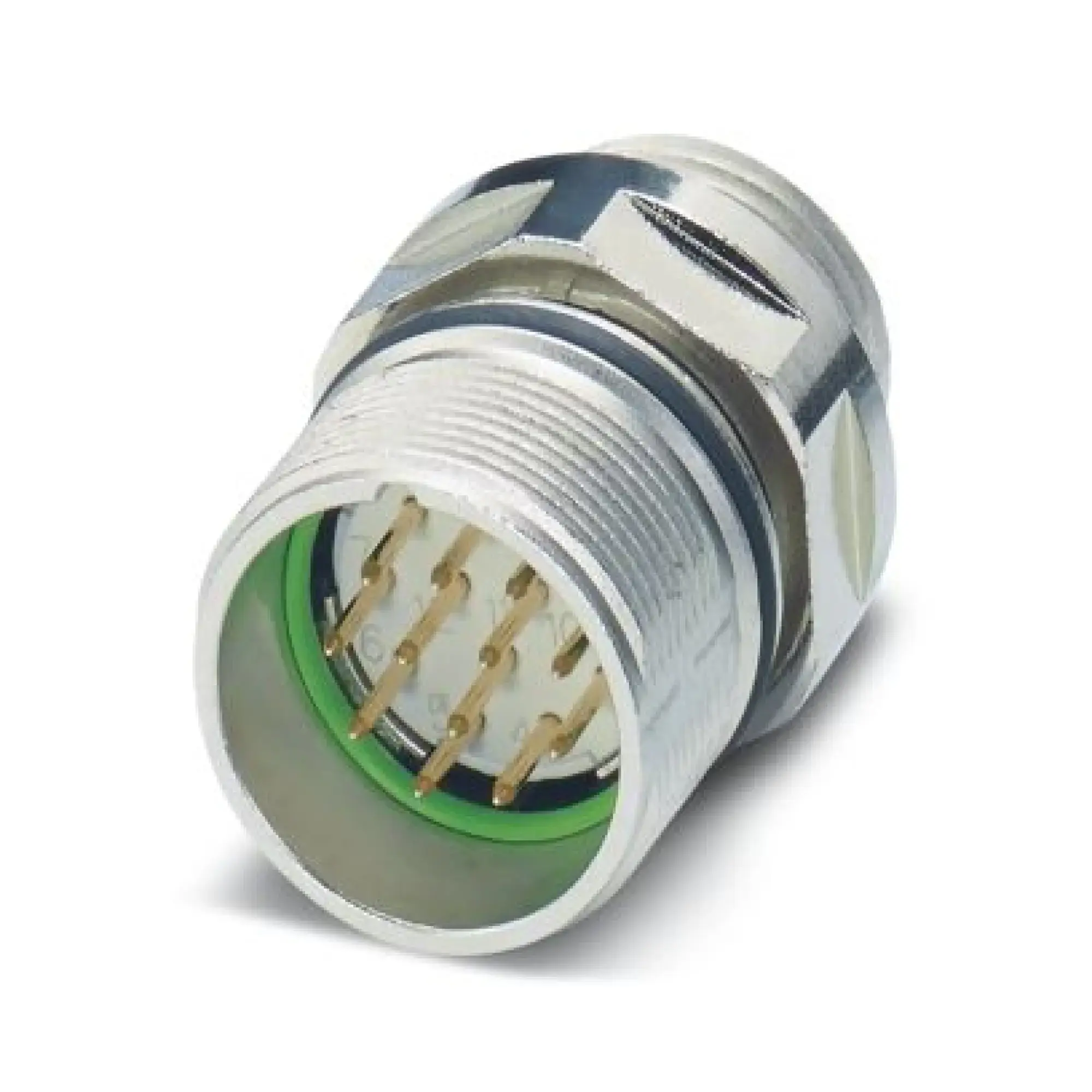

Phoenix Contact 1105531 Device connector front mounting CA-12P1N8A6L00/VPE250
€16.86*
% €22.12* (23.78% saved)Available, delivery time: 2-3 Weeks
Product number: WST8810162045
Manufacturer: Phoenix ContactP/N: 1105531
Product information "Phoenix Contact 1105531 Device connector front mounting CA-12P1N8A6L00/VPE250"
Phoenix Contact Device connector front mounting CA-12P1N8A6L00/VPE250
Phoenix Contact 1105531
EAN 4055626988016
Description
M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, coding: N, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Documents & Downloads
Product Attributes
| Montageart | Frontmontage |
|---|---|
| Einschraubgewinde | sonstige |
| Mit Schirmanschluss | 1 |
| Polzahl | 12 |
| Brennbarkeitsklasse des Isolierstoffs nach UL94 | V0 |
| Umgebungstemperatur (°C) | 125 |
| Betriebstemperatur (°C) | -40 |
| Anschließbarer Leiterquerschnitt (mm²) | 1 |
| Mit Gewinde | 1 |
Technical data
| P/N (Part Number) | 1105531 |
|---|---|
| EAN | 4055626988016 |
| ETIM | EC003569 |
| Weight | 0.0001408 kg |
| Weight (packaged) | 0.0001408 kg |
