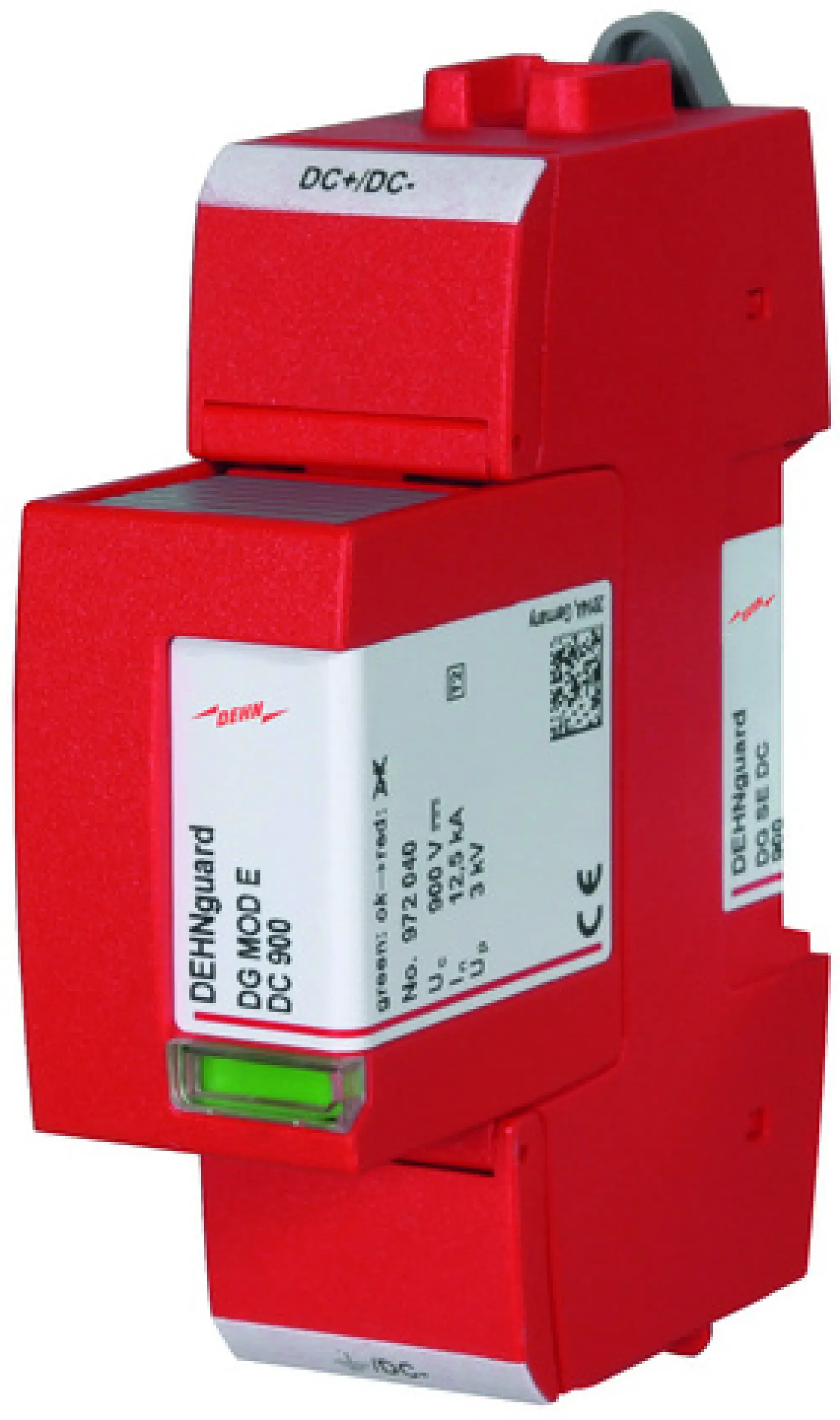

Dehn 972140 Surge arrester Type 2 DEHNguard SE DC 1-pole Uc 900V DC
€107.76
% €190.64 (43.47% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810210022
Manufacturer: DEHNP/N: 972140
Product information "Dehn 972140 Surge arrester Type 2 DEHNguard SE DC 1-pole Uc 900V DC"
Dehn Surge arrester Type 2 DEHNguard SE DC 1-pole Uc 900V DC
Dehn 972140
EAN
Description
Single-pole DEHNguard SE DC surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection module. High reliability due to high-performance d.c. switching device DCD which is particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 972140 |
|---|---|
| ETIM | EC000941 |
| Weight | 0.168 kg |
| Weight (packaged) | 0.19 kg |
Designations
Energietechnik Surge Protection for Power Supply Systems Type 2 Surge Arresters
