Dehn 961405 Type 1+2+3 comb. arrester DEHNventil ACI 4-pole f. TN-S sys. w. remote monitoring
€2,763.66
Available, delivery time: 2-3 Weeks
Art. No: WST8810226725 P/N: 961405 Manufacturer: DEHN
Secure Payment
Fast Shipping
Expert Advice
Product information "Dehn 961405 Type 1+2+3 comb. arrester DEHNventil ACI 4-pole f. TN-S sys. w. remote monitoring"
Dehn Type 1+2+3 comb. arrester DEHNventil ACI 4-pole f. TN-S sys. w. remote monitoring
Dehn 961405
EAN
Description

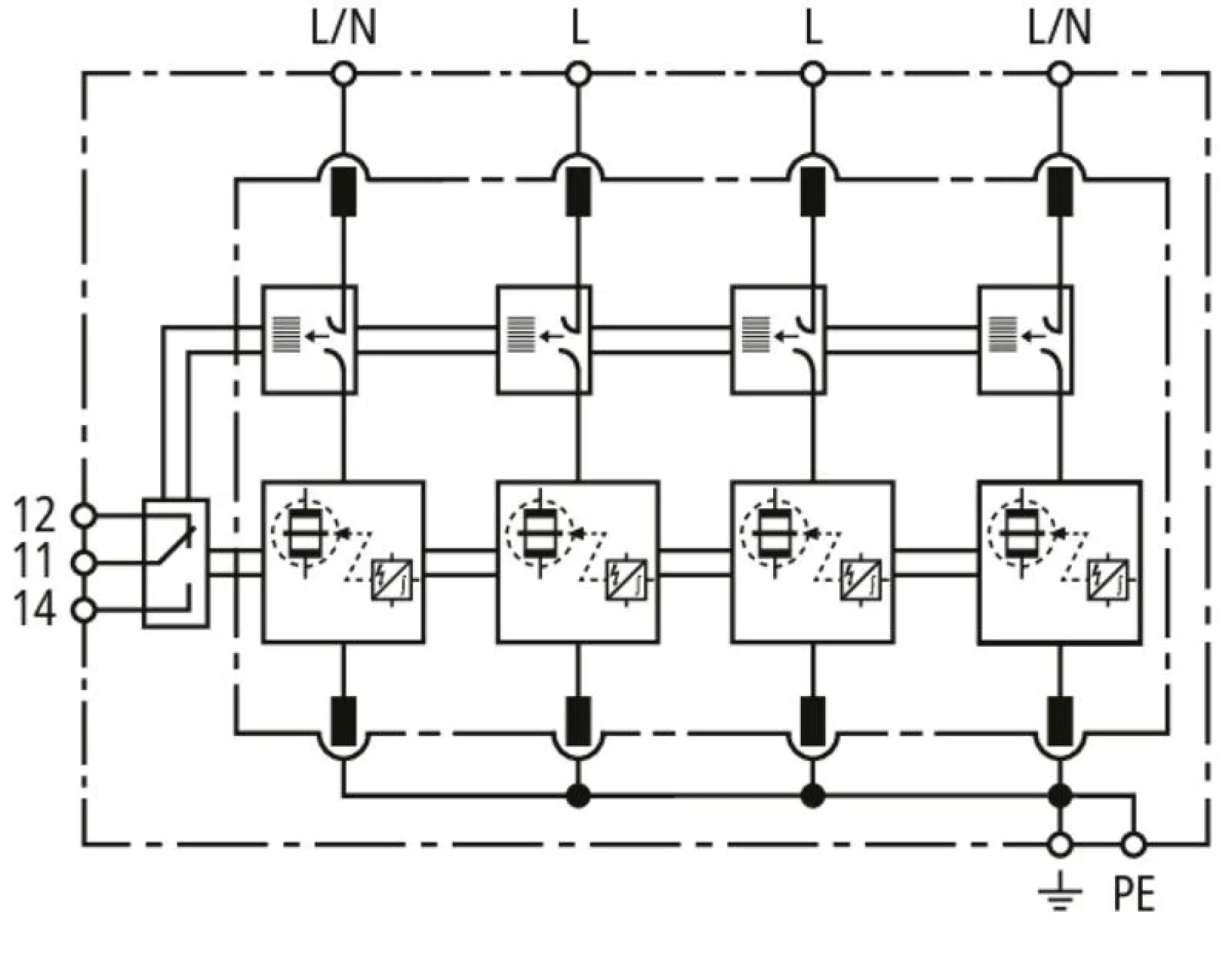

Four-pole, spark-gap-based, Type 1 + Type 2 + Type 3 DEHNventil ACI M TNS combined arrester as per EN 61643-11 with integrated ACI switch/spark gap. Maximum system availability due to RADAX Flow follow current limitation. Capable of protecting terminal equipment. For protecting low-voltage consumer installations against surges and even direct lightning strikes. For use according to the lightning protection zone concept at boundaries 0A – 2.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 961405 |
|---|---|
| ETIM | EC001457 |
| Weight | 2.57 kg |
| Weight (packaged) | 3.2 kg |
Designations
Energietechnik Surge Protection for Power Supply Systems
